Eaton B-Line Two Hole Open Ang...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$60.13
$8.42

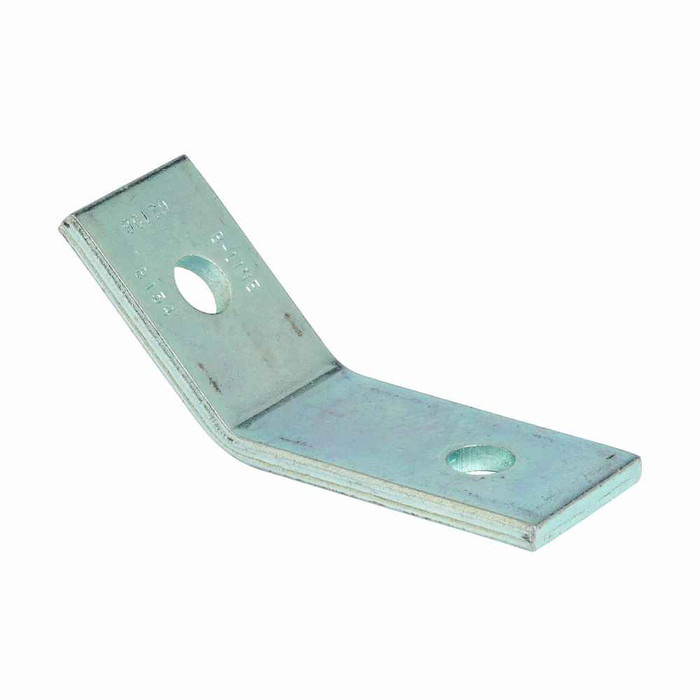

Eaton B-Line series strut fittings and accessories, 1.62" Height, 4.483" Length, 2.35" Width, .58lbs, Steel, Two hole open angle, 45 deg, Thickness 1/

Eaton B-Line Two Hole Open Angle 45 Degree Steel Electro-Plated Strut Fitting

(No reviews yet) Write a Review

Model: B154ZN
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$60.13
$8.42
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton B-Line Two Hole Open Angle 45 Degree Steel Strut Fitting

Professional Strut Channel Angular Connection System

The Eaton B-Line Two Hole Open Angle 45 Degree Steel Strut Fitting delivers exceptional structural support and installation efficiency for angular strut channel connections. This precision-engineered strut fitting provides reliable angular mounting solutions designed for professional electricians, mechanical contractors, and facility installers, offering the proven strength and versatile mounting capabilities that professionals trust from the industry leader in strut channel systems.

Professional Features & Benefits

Structural Performance Excellence

  • 45 Degree Angular Design - Provides precise angular connections for complex structural configurations and directional changes in strut channel systems
  • Two Hole Open Configuration - Enables secure dual-point fastening with excellent accessibility for installation and maintenance
  • Steel Construction with 1/4 Inch Thickness - Delivers robust structural integrity and long-lasting durability for demanding commercial and industrial applications
  • Compact Dimensions (1.62" H x 4.483" L x 2.35" W) - Optimized size profile provides structural strength while minimizing space requirements in tight installations

Installation & Mounting Advantages

  • Electro-Plated Finish - Superior corrosion resistance and enhanced durability for long-term performance in various environmental conditions
  • Lightweight Design at 0.58 lbs - Reduces overall system weight while maintaining structural performance for efficient installation and reduced load on supporting structures
  • Open Angle Configuration - Facilitates easy access for fastener installation and system modifications during construction and maintenance

Technical Specifications

Height: 1.62 inches, Length: 4.483 inches, Width: 2.35 inches, Weight: 0.58 lbs, Material: Steel, Material Gauge: 1/4 inch thickness, Finish: Electro-plated, Configuration: Two hole open angle, Angle: 45 degrees, Design Type: Open angle strut fitting

Installation & Usage

  1. Position the 45-degree angle fitting at the desired connection point between strut channels
  2. Align the two mounting holes with corresponding holes in the strut channel system
  3. Insert appropriate fasteners through the open hole configuration for secure attachment
  4. Tighten fasteners to manufacturer specifications ensuring proper structural connection
  5. Verify angular alignment and structural integrity before proceeding with additional installations
  6. Inspect electro-plated finish periodically to maintain corrosion resistance performance

Professional Applications

Ideal for:

  • Electrical Conduit Support Systems - Angular connections for conduit routing around obstacles and directional changes in electrical installations
  • Mechanical Equipment Mounting - Angled support structures for HVAC equipment, pumps, and mechanical system components
  • Structural Framing Applications - 45-degree connections for building framework, mezzanines, and structural support systems
  • Cable Management Systems - Angular support for cable trays, wire management, and telecommunications infrastructure
  • Industrial Support Structures - Manufacturing equipment mounting, conveyor supports, and process equipment frameworks
  • Seismic Bracing Systems - Angular bracing connections for earthquake-resistant structural support applications
  • Equipment Rack Systems - Server rack supports, control panel mounting, and electronic equipment frameworks
  • Architectural Support Systems - Building facade supports, canopy structures, and architectural framework applications

Electro-Plated Steel Advantage

The electro-plated steel construction provides superior corrosion resistance compared to standard steel finishes, making this fitting ideal for indoor and covered outdoor applications. The 1/4-inch steel thickness ensures structural integrity while the electro-plated finish extends service life and maintains appearance in commercial and industrial environments.

Why Choose B-Line Quality?

B-Line's decades of structural support innovation, commitment to load-rated reliability and safety, industry-standard compatibility, and trusted performance for contractors, electricians, and facility professionals worldwide make this two-hole open angle fitting the preferred choice for demanding structural applications requiring precise 45-degree angular connections.

Manufacturer Resources

Product Specs

Certifications:
Not Applicable
Material Gauge:
1/4"
Product Height:
1.62 in
Product Length Depth:
4.483 in
Product Weight:
.58 lb
Product Width:
2.35 in
Product Type:
Two hole open angle, 45 deg
Department:
Electrical
Product Finish:
Electro-plated
Product Details:
Two hole open angle, 45 deg
Product Material:
Steel

B-LINE B154ZN – Frequently Asked Questions

1) What size is the B-Line B154ZN 45 degree open angle strut fitting?
The B154ZN two hole open angle measures 1.62 in height, 4.483 in length and 2.35 in width, and it weighs .58 lb. Steel at 1/4 inch thick, so it is a plate-style angle rather than a formed light-gauge bracket. Those numbers matter when you are fitting a brace into a congested rack or ceiling grid, since the 4.483 in leg dimension sets how far the fitting projects past the strut joint.
2) Can I use the B-Line B154ZN electro-plated fitting outdoors?
Electro-plated steel is an indoor and covered-outdoor finish. It holds up in dry interiors, mechanical rooms and under-canopy locations, but it is not the finish for direct weather exposure, roof curbs, coastal air or wash-down areas. For those, step up to a hot-dip galvanized or stainless version of the same fitting rather than relying on the plating.
3) Does the B154ZN 45 degree angle come with bolts and channel nuts?
No hardware ships with the fitting. The B154ZN is the steel angle only, with two holes for fastening. You order strut nuts and bolts separately, sized to the channel you are connecting, and you will need two per hole pattern point to land both holes. Plan the fastener count into your takeoff before the crew is on the lift.
4) Will a B154ZN open angle fitting work on 1-5/8 inch strut channel?
Yes. The B154ZN is a standard B-Line strut fitting with a two hole pattern on 1-7/8 inch centers, which is the standard hole spacing across 1-5/8 inch channel and the fittings made for it. It bolts to B-Line channel and to other manufacturers' 1-5/8 inch channel built to the same pattern, using 1/2 inch channel nuts.
5) Should I use a 45 degree open angle or a 90 degree corner fitting for a strut brace?
Use the 45 degree open angle when you are running a diagonal kicker or knee brace off a strut post, or changing conduit direction at anything other than a square corner. A 90 degree corner fitting is the part for a true right-angle joint. The B154ZN is the 45 degree version, two hole, open angle, so both legs stay accessible for a wrench after the joint is made. If your drawing calls out a 45 degree diagonal brace on a trapeze or seismic kicker, this is the geometry that matches it.
6) Is the B-Line B154ZN 1/4 inch steel or light gauge?
Solid 1/4 inch steel. That is plate thickness, not a formed light-gauge stamping, which is why the fitting comes in at .58 lb for a bracket only a few inches across. For a contractor, the practical read is that this is a structural connection fitting for conduit racks, trapezes and equipment framing, not a light shelf clip.
7) What is the part number for the B-Line 45 degree two hole open angle?
B154ZN is the Eaton B-Line part number for the two hole open angle, 45 degree, steel, electro-plated. The ZN suffix on B-Line fittings denotes the electro-plated zinc finish, so if a spec calls out the same fitting in a different finish you are looking at a different suffix on the same base number.
8) Does the B-Line B154ZN 45 degree fitting carry a seismic or UL rating?
The B154ZN is supplied as a standard steel angle fitting with no certification called out on the part. If your job requires a listed seismic bracing assembly, the rating comes from the engineered bracing system and its published load tables, not from an individual angle, so confirm the fitting is part of the assembly your engineer specified before you commit it to a braced run.
