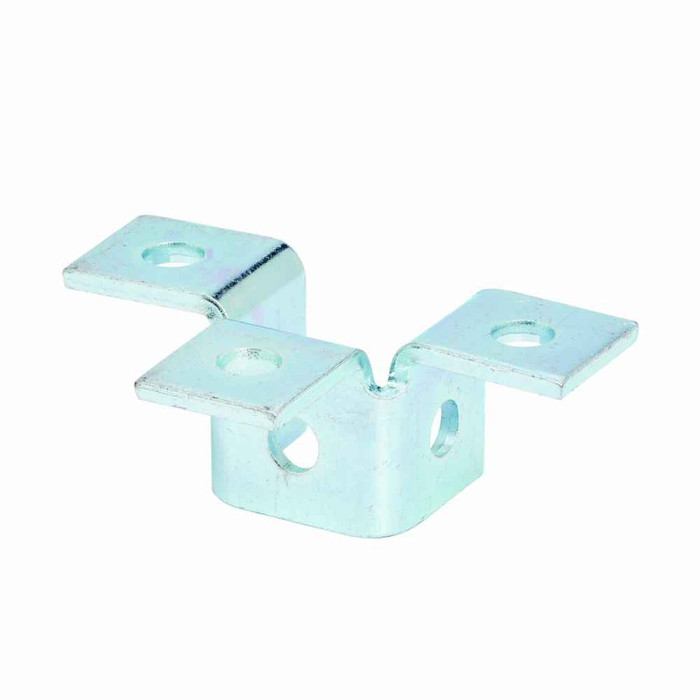

B-Line B122SS4 Eaton series st...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$481.74
B-Line B122SS4 Eaton series strut fittings and accessories, 2.06" Height, 5.43" Length, 1.68" Width, 1.10lbs, Steel, Six hole triple wing fitting, Thickness 1/4 in, Stainless steel type 304

B-Line B122SS4 Eaton series strut fittings and accessories, 2.06" Height, 5.43" Length, 1.68" Width, 1.10lbs, Steel, Six hole triple wing fitting, Thickness 1/4 in, Stainless steel type 304

(No reviews yet) Write a Review

Model: B122SS4
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$481.74
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series strut fittings and accessories, 2.06" Height, 5.43" Length, 1.68" Width, 1.10lbs, Steel, Six hole triple wing fitting, Thickness 1/4 in, Stainless steel type 304

Manufacturer Resources

Product Specs

Certifications:
Not Applicable
Material Gauge:
1/4"
Product Height:
2.06 in
Product Length Depth:
5.43 in
Product Weight:
1.1 lb
Product Width:
1.68 in
Department:
Electrical
Product Type:
Six hole triple wing fitting
Product Finish:
Stainless steel type 304
Product Details:
Six hole triple wing fitting
Product Material:
Steel

B-LINE B122SS4 – Frequently Asked Questions

1) Is the B122SS4 fitting suitable for outdoor or washdown use?
It is Type 304 stainless steel, which is the grade specified for wet, outdoor, food-processing and washdown environments where plated or painted steel fittings would rust. For coastal or chloride-heavy exposure, buyers usually step up to Type 316 instead.
2) Do bolts and channel nuts come with the B122SS4?
The B122SS4 is the fitting only. You supply the channel nuts and hardware, and in a stainless run you want stainless fasteners to match the Type 304 fitting rather than mixing in plated steel, which sets up galvanic corrosion at the joint.
3) What is a six hole triple wing strut fitting used for?
A triple wing fitting like the B-Line B122SS4 ties strut channel together in three planes at once, so one piece handles a corner or branch where three runs meet instead of stacking flat plates and angles. It has six bolt holes total, two per wing, and is 1/4 inch thick steel.
4) What are the dimensions and weight of the B-Line B122SS4 fitting?
It measures 5.43 x 2.06 x 1.68 inches (length, height, width) and weighs 1.1 lb. The 1/4 inch material thickness is what drives the weight, so account for it when you are hanging a long run of these overhead.
5) What is the exact part number to order this Eaton B-Line triple wing fitting?
Order it as B122SS4. The SS4 suffix is the Type 304 stainless version of the B122 triple wing fitting, so if a submittal calls out a plain B122 you are looking at a different finish, not a different shape.
6) Does the B122SS4 fitting carry any listings or certifications?
Certifications are recorded as Not Applicable for this fitting. It is a structural strut connector, so load capacity comes from the channel, fittings and fasteners as an assembly rather than from a listing on the part itself.
