B-Line Eaton series strut fittings and accessories, 2.25" Height, 2.25" Length, 1.62" Width, .41lbs, Steel, Two hole corner angle, 90 deg, no twist |
Model: BLN-B231PAZN
Eaton B-Line series strut fittings and accessories, 2.25" Height, 2.25" Length, 1.62" Width, .41lbs, Steel, Two hole corner angle, 90 deg, no twist | Pre assembled, Electro-plated
B-LINE
$6,654.57
B-Line Eaton series strut fittings and accessories, 2.25" Height, 2.25" Length, 1.62" Width, .41lbs, Steel, Two hole corner angle, 90 deg, no twist, D
Model: BLN-B231GRN
Eaton B-Line series strut fittings and accessories, 2.25" Height, 2.25" Length, 1.62" Width, .41lbs, Steel, Two hole corner angle, 90 deg, no twist, DURA GREEN
B-LINE
$4,538.61
B-Line Eaton series strut fittings and accessories, 2.25" Height, 2.25" Length, 1.62" Width, .41lbs, Steel, Two hole corner angle, 90 deg, no twist, E
Model: BLN-B231ZN
Eaton B-Line series strut fittings and accessories, 2.25" Height, 2.25" Length, 1.62" Width, .41lbs, Steel, Two hole corner angle, 90 deg, no twist, Electro-plated
B-LINE
$4,374.66
B-Line B231SS4 Eaton series strut fittings and accessories, 2.25" Height, 2.25" Length, 1.62" Width, .41lbs, Steel, Two hole corner angle, 90 deg, no twist | Pre assembled, Stainless steel type 304
Model: BLN-B231SS4
Eaton B-Line series strut fittings and accessories, 2.25" Height, 2.25" Length, 1.62" Width, .41lbs, Steel, Two hole corner angle, 90 deg, no twist | Pre assembled, Stainless steel type 304
B-LINE
$122.07
$96.44
B-Line B231SS6 Eaton series strut fittings and accessories, 2.25" Height, 2.25" Length, 1.62" Width, .41lbs, Steel, Two hole corner angle, 90 deg, no twist | Pre assembled, Stainless steel type 316
Model: BLN-B231SS6
Eaton B-Line series strut fittings and accessories, 2.25" Height, 2.25" Length, 1.62" Width, .41lbs, Steel, Two hole corner angle, 90 deg, no twist | Pre assembled, Stainless steel type 316
B-LINE
$165.38
$156.24
Eaton B-Line series strut fittings and accessories, 2.25" Height, 2.25" Length, 1.62" Width, .41lbs, Steel, Two hole corner angle, 90 deg, no twist | Pre assembled, DURA GREEN
Manufacturer Resources
Product Specs
- Certifications:
- Not Applicable
- Product Height:
- 2.25 in
- Product Length Depth:
- 2.25 in
- Product Weight:
- .41 lb
- Product Width:
- 1.62 in
- Department:
- Electrical
- Product Group:
- Lighting
- Product Subgroup:
- LED Modules
- Product Type:
- Two hole corner angle, 90 deg, no twist,Pre assembled
- Product Finish:
- DURA GREEN
- Product Details:
- Two hole corner angle, 90 deg, no twist,Pre assembled
- Product Material:
- Steel
- Product Length:
- 2.25 in
B-LINE B231PAGRN – Frequently Asked Questions
1) What does the B-Line B231PAGRN corner angle fitting actually do in a strut run?

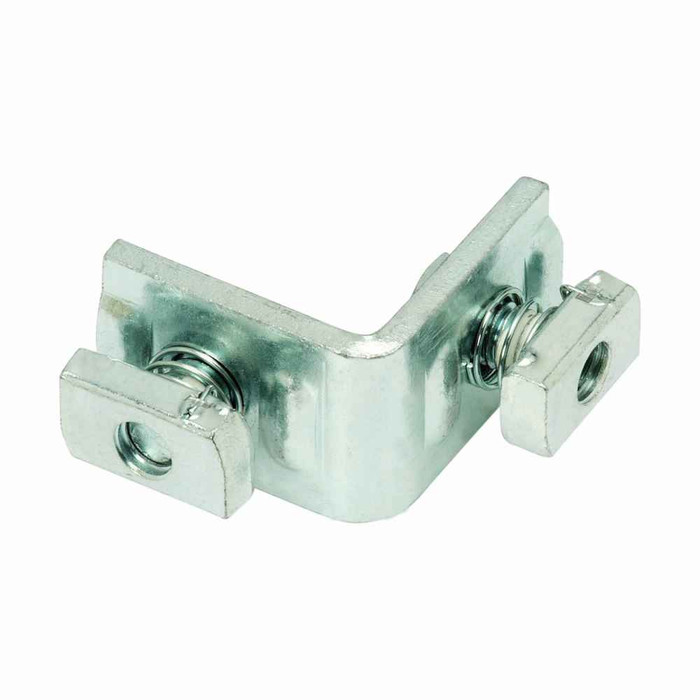

The B231PAGRN is a two hole corner angle used to join strut channel at a 90 degree turn. It has no twist, so both hole pairs sit in the same plane, one bolting to each leg of the corner. It arrives pre assembled, so the bolt and channel nut hardware is already on the fitting rather than ordered separately.
2) Do I need to order bolts and channel nuts separately for the B231PAGRN angle?
No. The B231PAGRN ships pre assembled, meaning the fastening hardware comes attached to the angle. You bolt it straight to the strut without sourcing separate nuts and bolts.
3) What is the difference between a no twist corner angle and a twisted (90 degree twist) strut angle?
A no twist angle, which is what the B231PAGRN is, bends 90 degrees within one plane, so it turns a strut run flat in the same plane. A twist style angle rotates the second leg 90 degrees as well, which is what you use when the connecting strut sits perpendicular to the face of the first piece rather than in line with it. Pick the no twist version when both channels present their faces the same way at the corner.
4) What is the DURA GREEN finish on B-Line strut fittings, and will it match my existing green strut?
DURA GREEN is Eaton B-Line's green coating over the steel fitting, and it is the same finish specified across B-Line's DURA GREEN strut and fittings line. If the channel already installed in your facility is B-Line DURA GREEN, the B231PAGRN angle matches it. It will not match plain pre galvanized or hot dip galvanized strut visually.
5) What part number do I give my distributor for the B-Line two hole 90 degree corner angle in green?
Order it as B231PAGRN, an Eaton B-Line series strut fitting. The PA suffix denotes the pre assembled version and GRN the DURA GREEN finish.
6) Is the B231PAGRN made of steel or aluminum?
Steel, with the DURA GREEN coating applied over it. If your job calls for aluminum or stainless fittings, this is not the part.
