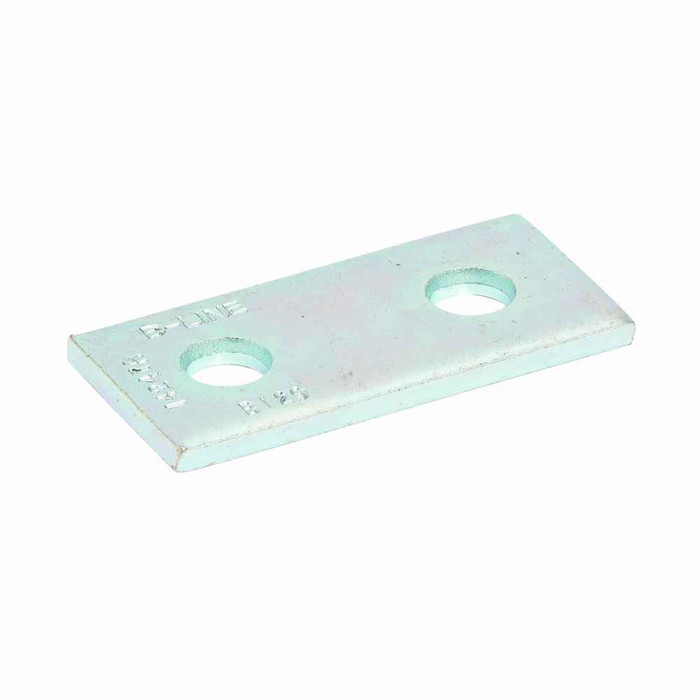

Eaton B-Line series strut fittings and accessories, .23" Height, 3.5" Length, 1.62" Width, .37lbs, Steel, Two hole splice plate, Thickness 1/4 in, Stainless steel type 316
Manufacturer Resources
Product Specs
- Certifications:
- Not Applicable
- Material Gauge:
- 1/4"
- Product Height:
- .23 in
- Product Length Depth:
- 3.5 in
- Product Weight:
- .37 lb
- Product Width:
- 1.62 in
- Department:
- Electrical
- Product Group:
- Panels & Plates
- Product Subgroup:
- Plates
- Product Type:
- Two hole splice plate
- Product Finish:
- Stainless steel type 316
- Product Details:
- Two hole splice plate
- Product Material:
- Steel
B-LINE B129SS6 – Frequently Asked Questions
1) Is the B-Line B129SS6 splice plate stainless steel or plain steel?
The B129SS6 two hole splice plate is steel with a Type 316 stainless finish. Type 316 is the marine/chemical grade stainless, so it is the one to specify for coastal installs, wash-down areas, water treatment plants and other wet or corrosive environments rather than a plated or painted carbon steel fitting.
2) What is a two hole splice plate actually used for on a strut run?
It bridges the joint where two lengths of strut channel butt together, bolting flat across the seam so the run behaves as one continuous piece. The B129SS6 is the two-hole version, meaning one bolt into each side of the splice. For heavier loads or where you need more moment resistance at the joint, step up to a longer multi-hole splice plate instead.
3) What size is the Eaton B-Line B129SS6 splice plate and how thick is it?
It measures 3.5 inches long, 1.62 inches wide and .23 inches high, with a material gauge of 1/4 inch. Weight is .37 lb. The short two-hole footprint means it lands on a standard strut hole pattern without overhanging much past the joint.
4) Do bolts and channel nuts come with the B129SS6 splice plate?
No. The B129SS6 ships as the plate only, so order your strut nuts, bolts and washers separately. On a Type 316 install, match the fasteners in 316 stainless as well, mixing carbon steel hardware into a stainless assembly is what starts galvanic corrosion at the joint.
5) What part number do I order for the B-Line 316 stainless two hole splice plate?
Order Eaton B-Line part number B129SS6. The SS6 suffix is the Type 316 stainless version, so if a drawing calls out plain B129 you are looking at a different finish, not the same part.
6) Is the B-Line B129SS6 a UL listed or certified fitting?
No listing or certification is carried on the B129SS6 splice plate, its certification status is Not Applicable. It is a structural strut fitting, not an electrical device, so specify it on mechanical and support criteria: 316 stainless for corrosion, 1/4 inch material thickness for the joint.
