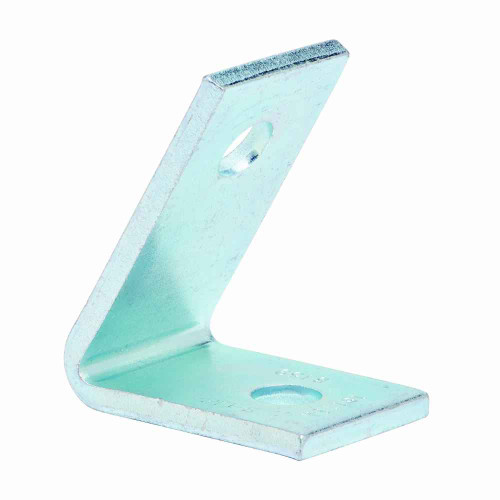

B-Line Eaton series strut fittings and accessories, 3.18" Height, 2.5" Length, 1.62" Width, .56lbs, Steel, Two hole closed angle, 75 deg, Thickness 7/

(No reviews yet) Write a Review

Model: B157GRN

In Stock (leaves warehouse same day if ordered before 3pm ET)

$6,031.56
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series strut fittings and accessories, 3.18" Height, 2.5" Length, 1.62" Width, .56lbs, Steel, Two hole closed angle, 75 deg, Thickness 7/32 in, 9/16 in hole diameter, DURA GREEN

Manufacturer Resources

Product Specs

Bolt Thread Rod Size:
9/16"
Certifications:
Not Applicable
Material Gauge:
7/32"
Product Height:
3.18 in
Product Length Depth:
2.5 in
Product Weight:
.56 lb
Product Width:
1.62 in
Department:
Electrical
Product Type:
Two hole closed angle, 75 deg
Product Finish:
DURA GREEN
Product Details:
Two hole closed angle, 75 deg
Product Material:
Steel
Product Length:
2.5 in

B-LINE B157GRN – Frequently Asked Questions

1) What angle does the B-Line B157GRN strut fitting hold?
The B157GRN is a two hole closed angle fitting bent to 75 degrees, so it joins two pieces of strut at a fixed 75 degree corner. Closed angle means the bend is on the inside of the joint, not opened out past 90. If your run needs a square corner or an adjustable angle, this is the wrong bracket.
2) What size bolts fit the holes in the B-Line B157GRN angle bracket?
Hole diameter is 9/16 inch, which is the standard strut fitting hole that takes 1/2 inch strut bolts, nuts, or threaded rod hardware. Bolts and channel nuts are separate items, they don't come with the bracket.
3) Is the DURA GREEN finish on this B-Line fitting suitable for damp or outdoor electrical work?
DURA GREEN is Eaton B-Line's coated finish for corrosion resistance, applied over the steel body. It holds up better than plain steel in damp interior and sheltered exterior conditions. For continuously wet, chemical, or coastal exposure, specify a stainless or hot dip galvanized fitting instead.
4) How thick is the steel on the B-Line B157GRN 75 degree angle?
Material thickness is 7/32 inch steel. That is the heavier end of the strut fitting range, so it is used for structural bracing and supporting conduit racks, trapeze hangers, and equipment rather than light shelving work.
5) Do I need anything else to install the B-Line B157GRN angle fitting?
Yes. The bracket is supplied on its own, so you also need strut channel and the fasteners: 1/2 inch strut bolts or threaded rod through the 9/16 inch holes, plus channel nuts or spring nuts to grip the strut. Two holes means two fasteners per leg connection.
