B-Line B250SS4 Eaton series st...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$266.19

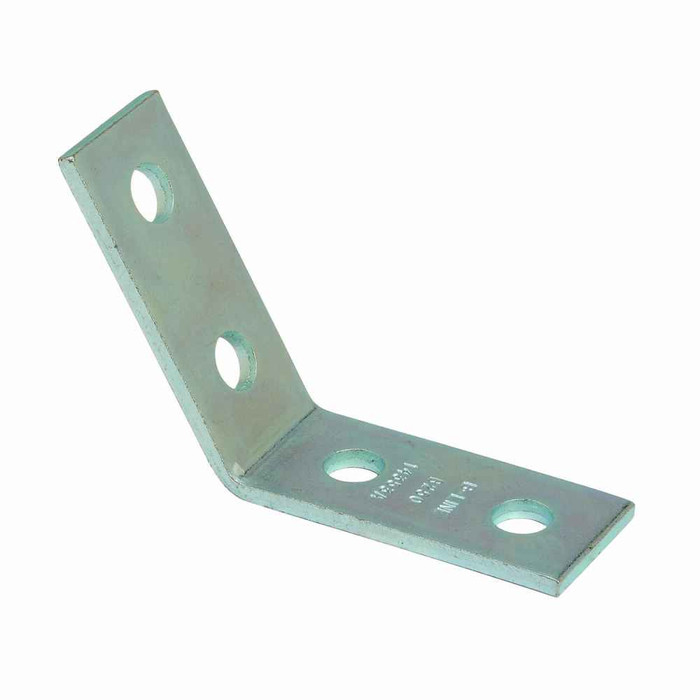

B-Line B250SS4 Eaton series strut fittings and accessories, 3.32" Height, 5.35" Length, 1.62" Width, .77lbs, Steel, Four hole open angle, 60 deg, Thickness 1/4 in, Stainless steel type 304

B-Line B250SS4 Eaton series strut fittings and accessories, 3.32" Height, 5.35" Length, 1.62" Width, .77lbs, Steel, Four hole open angle, 60 deg, Thickness 1/4 in, Stainless steel type 304

(No reviews yet) Write a Review

Model: B250SS4
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$266.19
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series strut fittings and accessories, 3.32" Height, 5.35" Length, 1.62" Width, .77lbs, Steel, Four hole open angle, 60 deg, Thickness 1/4 in, Stainless steel type 304

Manufacturer Resources

Product Specs

Certifications:
Not Applicable
Material Gauge:
1/4"
Product Height:
3.32 in
Product Length Depth:
5.35 in
Product Weight:
.77 lb
Product Width:
1.62 in
Department:
Electrical
Product Type:
Four hole open angle, 60 deg
Product Finish:
Stainless steel type 304
Product Details:
Four hole open angle, 60 deg
Product Material:
Steel

B-LINE B250SS4 – Frequently Asked Questions

1) Is the B250SS4 angle bracket stainless or plain steel?
It is steel in a type 304 stainless specification, which is what you want for damp, washdown, or coastal exposure where a plain electro-galvanized fitting would rust. For dry indoor runs a plated carbon steel fitting does the same mechanical job.
2) Does the B250SS4 come with channel nuts and bolts?
No. The B250SS4 is the four hole angle fitting only. You order the strut nuts, bolts, and washers separately, and in a stainless application they should be type 304 stainless as well so you are not pairing plated hardware with a stainless bracket in a wet location.
3) What part number do I order for the Eaton B-Line 60 degree four hole open angle?
Order Eaton B-Line B250SS4. The SS4 suffix identifies the type 304 stainless version of the B250 open angle; the same fitting is offered in other finishes under different suffixes, so quote the full B250SS4 if the job spec calls for stainless.
4) Can I use the B250SS4 open angle outdoors or in a wash-down area?
Type 304 stainless is the usual choice for exterior, food processing, and other wet or wash-down environments, and that is what this angle is made from. For chloride-heavy service, such as pool chemical rooms or direct marine spray, a 316 stainless fitting is the better call.
5) How many bolt holes does the B250SS4 have and how does that affect the connection?
Four holes, split across the two legs of the open angle, so each strut run gets two fasteners. Two bolts per leg is what keeps the joint from rotating under load, which a single-hole connection will not do.
