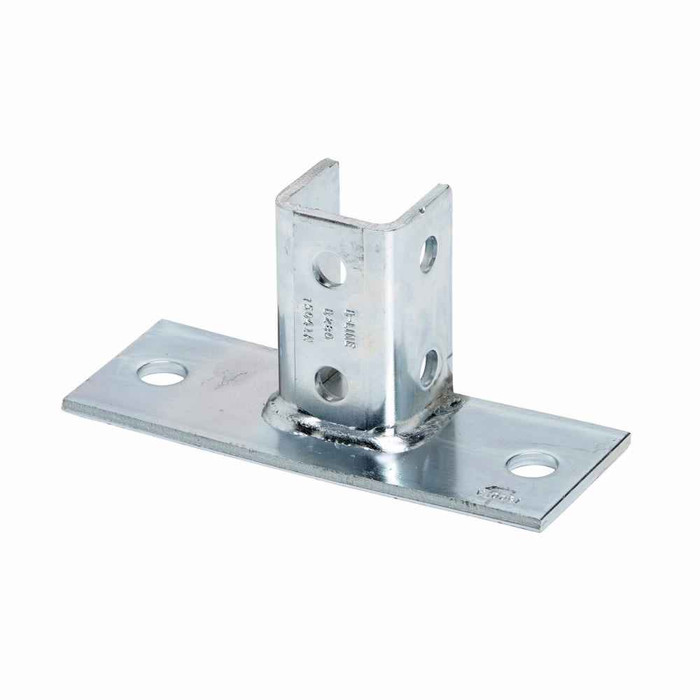

Eaton B-Line series strut fittings and accessories, 3.5" Height, 8" Length, 3" Width, 3.12lbs, Steel, Rectangular post base, flush to side, Fits channel B22, Yellow zinc chromate
Manufacturer Resources
Product Specs
- Certifications:
- Not Applicable
- For Channel Type:
- Fits channel B22
- Product Height:
- 3.5 in
- Product Length Depth:
- 8 in
- Product Weight:
- 3.12 lb
- Product Width:
- 3 in
- Department:
- Electrical
- Product Type:
- Rectangular post base, flush to side
- Product Finish:
- Yellow zinc chromate
- Product Details:
- Rectangular post base, flush to side
- Product Material:
- Steel
B-LINE B280FLYZN – Frequently Asked Questions
1) Do anchors and bolts come with the B280FLYZN post base?
No. The B280FLYZN ships as the steel base plate only. You supply the concrete anchors or floor bolts for the base holes and the channel nuts and bolts to fasten the B22 post to the base. Plan that hardware into the order or the crew will be standing there with a plate and nothing to set it with.
2) What does "flush to side" mean on this B-Line post base?
It means the strut post sits flush with one side edge of the base plate rather than centred on it. That lets you stand the post tight against a wall, curb, or adjacent equipment with no offset, and the rest of the plate projects to one side for the anchors. If you need the post centred over the anchor pattern, choose a centred rectangular post base instead.
3) What are the dimensions and weight of the B280FLYZN post base?
The B280FLYZN measures 8 inches in length/depth, 3 inches in width, and 3.5 inches in height, and weighs 3.12 lb. The 3 inch width is the number that usually decides the job: on a narrow curb or a tight wall pocket you need that footprint plus room to drill the anchors.
4) Is a yellow zinc chromate post base OK for outdoor or wet locations?
Yellow zinc chromate on steel is an indoor/dry-location plating. It handles general mechanical-room, plant, and ceiling-space environments, but it is not a weathering finish for rooftops, exterior pads, wash-down areas, or coastal exposure. For those, specify a hot-dip galvanized or stainless post base.
