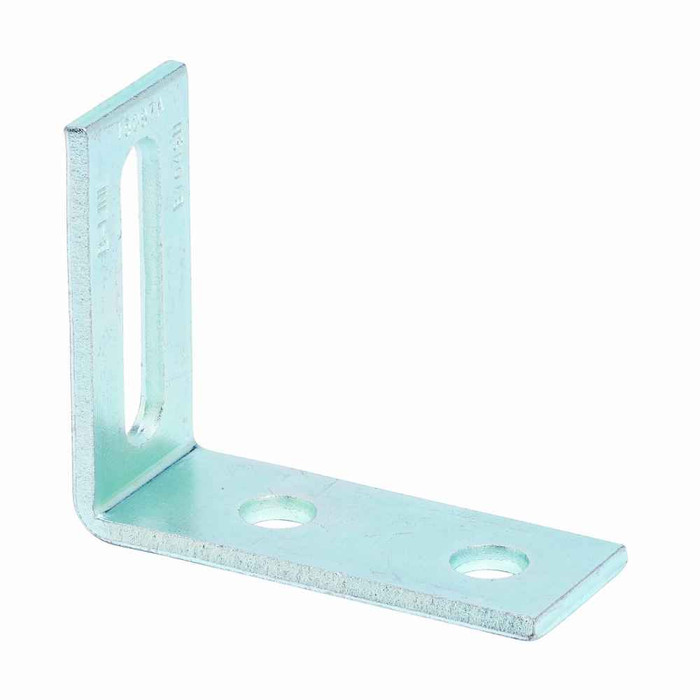

Eaton B-Line series strut fittings and accessories, 4.12" Height, 4.12" Length, 1.62" Width, .78lbs, Steel, Pre-assembled fitting, Three hole adjustable corner angle, 90 deg, Stainless steel type 304
Manufacturer Resources
Product Specs
- Certifications:
- Not Applicable
- Product Height:
- 4.12 in
- Product Length Depth:
- 4.12 in
- Product Weight:
- .78 lb
- Product Width:
- 1.62 in
- Special Features:
- Pre-assembled fitting
- Department:
- Electrical
- Product Type:
- Three hole adjustable corner angle, 90 deg
- Product Finish:
- Stainless steel type 304
- Product Details:
- Three hole adjustable corner angle, 90 deg
- Product Material:
- Steel
B-LINE B104SHSS4 – Frequently Asked Questions
1) Is the B-Line B104SHSS4 corner angle stainless steel or plated?
The B104SHSS4 is a Type 304 stainless steel corner angle fitting. That makes it the choice for wet, washdown, coastal, or corrosive areas where an electro-galvanized fitting would rust out. Base material is steel in the 304 stainless type.
2) Does the B104SHSS4 come with bolts and channel nuts?
It ships as a pre-assembled fitting. Order the strut channel, and any additional hardware your run needs, separately. If you are building out a rack, count three bolt-and-nut sets per fitting to match the three holes.
3) What is an adjustable corner angle used for on a strut rack?
It joins two pieces of strut channel at a corner. The B104SHSS4 is the 90 degree adjustable version with three holes, so you can set and lock the leg relationship rather than being fixed to a single stamped angle. Typical uses are pipe racks, conduit supports, equipment frames, and trapeze hangers where two channels meet at a corner instead of running through.
4) Can I use a 304 stainless strut fitting with galvanized strut channel?
Mechanically yes, but mixing 304 stainless fittings with zinc-coated channel in a wet location invites galvanic corrosion at the joint. If you are buying the B104SHSS4 for its 304 stainless corrosion resistance, match it to stainless channel and stainless hardware so the whole assembly holds up.
5) Is the B-Line B104SHSS4 the same as the standard B104 fitting?
Same three hole 90 degree adjustable corner angle geometry, different material. The SS4 suffix on B104SHSS4 marks it as Type 304 stainless. If your job does not need corrosion resistance, the plain-finish version of the same fitting covers dry indoor work.
