Eaton B-Line Four Hole Splice Clevis Steel 7.24 Inch Length B52 Channel Electro-Plated

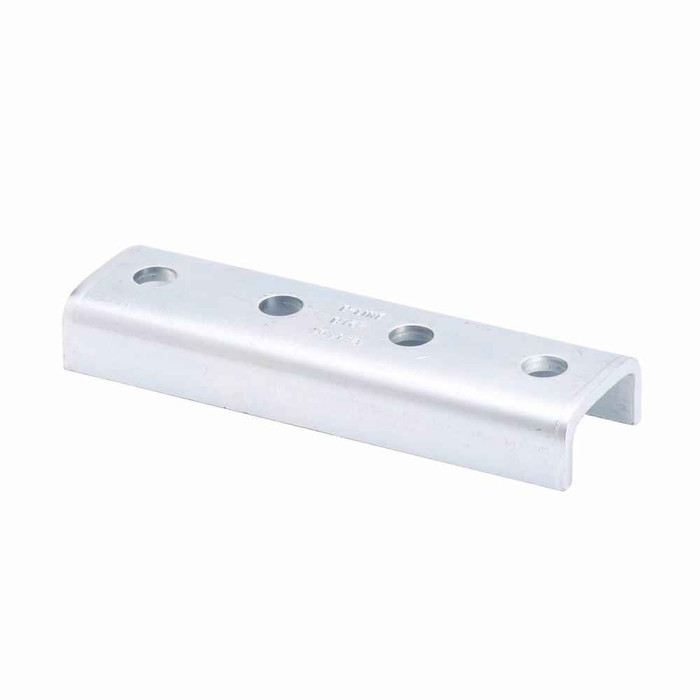

Eaton B-Line Four Hole Splice Clevis

Professional Strut Channel Splice Component System

The Eaton B-Line Four Hole Splice Clevis delivers exceptional structural support and installation efficiency for strut channel splicing applications. This steel splice component provides reliable structural connection designed for professional electricians, mechanical contractors, and facility installers, offering the proven strength and versatile mounting capabilities that professionals trust from the industry leader in strut channel systems.

Professional Features & Benefits

Structural Performance Excellence

• Steel Construction with 7/32 Inch Thickness - Delivers exceptional structural integrity and load-bearing capacity for demanding commercial and industrial splice applications
• Four Hole Design Configuration - Provides multiple fastening points for secure, reliable connection between strut channel sections with enhanced structural stability
• B52 Channel Compatibility - Engineered specifically for B52 strut channel systems ensuring perfect fit and optimal structural performance
• Compact 7.24 x 2.12 x 0.81 Inch Dimensions - Space-efficient design allows installation in confined areas while maintaining full structural capability

Installation & Mounting Advantages

• Electro-Plated Finish Protection - Superior corrosion resistance extends service life in demanding environmental conditions while maintaining professional appearance
• Lightweight 1.78 Pound Design - Reduces installation fatigue and handling complexity while maintaining structural strength requirements
• Precision Manufacturing - Exact dimensional tolerances ensure consistent fit and reliable performance across all B-Line strut channel installations

Technical Specifications

Material: Steel construction, Material Gauge: 7/32 inch thickness, Finish: Electro-plated surface protection, Dimensions: 7.24 inches length x 2.12 inches width x 0.81 inches height, Weight: 1.78 pounds, Channel Compatibility: Fits B52 channel type, Design: Four hole splice clevis configuration, Product Type: Splice component for strut channel systems

Installation & Usage

1. Position splice clevis at the junction point between two B52 strut channel sections requiring connection
2. Align the four mounting holes with corresponding holes in the strut channel flanges
3. Insert appropriate fasteners through all four holes to secure the splice connection
4. Tighten fasteners to specified torque requirements ensuring even load distribution
5. Verify structural alignment and connection integrity before applying system loads
6. Inspect electro-plated finish for any damage and touch up if necessary for corrosion protection

Professional Applications

Ideal for:

• Electrical Conduit Support Systems - Splice connections for extended conduit runs requiring continuous strut channel support
• Mechanical Equipment Mounting - Structural connections for HVAC equipment, pumps, and mechanical system support frameworks
• Industrial Support Structures - Heavy-duty splice connections for manufacturing equipment mounting and industrial support systems
• Commercial Building Infrastructure - Structural connections for lighting systems, cable tray supports, and building service installations
• Seismic Bracing Applications - Critical splice connections for earthquake-resistant bracing systems and structural reinforcement
• Equipment Rack Systems - Splice connections for server racks, telecommunications equipment, and data center infrastructure
• Cable Management Systems - Structural connections for cable tray extensions and telecommunications pathway support
• Facility Maintenance Projects - Retrofit and expansion connections for existing strut channel installations

Electro-Plated Steel Advantage

The electro-plated steel construction provides superior corrosion resistance compared to standard steel finishes, making this splice clevis ideal for indoor commercial and industrial environments where moisture and chemical exposure may occur. The electro-plating process creates a protective barrier that extends service life while maintaining the structural strength properties of the steel base material.

Why Choose B-Line Quality?

B-Line's decades of structural support innovation, commitment to load-rated reliability and safety, industry-standard compatibility, and trusted performance for contractors, electricians, and facility professionals worldwide make this four hole splice clevis the preferred choice for critical strut channel connections. The precision manufacturing and quality materials ensure consistent performance and long-term structural integrity in demanding professional applications.
