B-Line Eaton series strut pipe...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$1,022.30

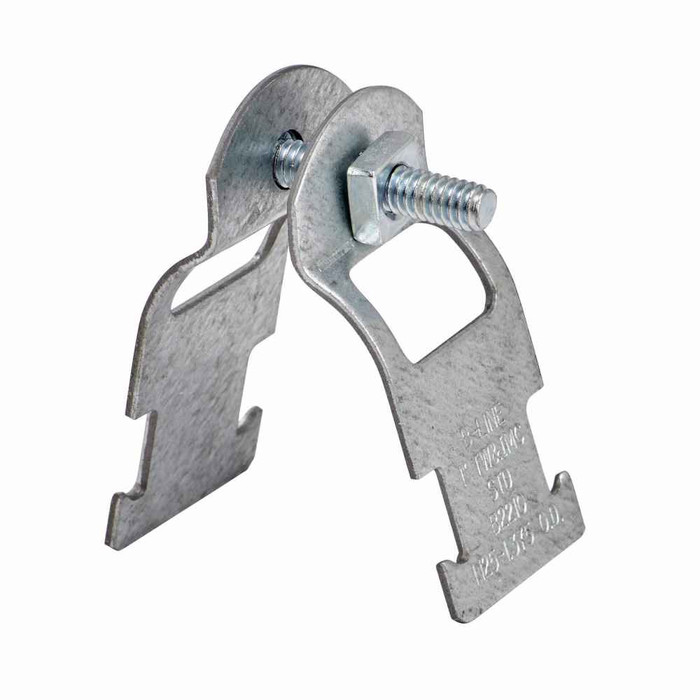

B-Line Eaton series strut pipe clamps and accessories, .0635" height, 1.937" length, 1.25" width, 400 lbs, Steel, Safety factor of 5, Include combinat

B-Line Eaton series strut pipe clamps and accessories, .0635" height, 1.937" length, 1.25" width, 400 lbs, Steel, Safety factor of 5, Include combinat

(No reviews yet) Write a Review

Model: B2207PAZN
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,022.30
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series strut pipe clamps and accessories, .0635" height, 1.937" length, 1.25" width, 400 lbs, Steel, Safety factor of 5, Include combination recess, Pipe clamp for thinwall (EMT), Electro-plated zinc

Manufacturer Resources

Product Specs

Certifications:
Not Applicable
Load Capacity:
400 lbs
Product Height:
.0635 in
Product Length Depth:
1.937 in
Product Weight:
.09 lb
Product Width:
1.25 in
Special Features:
Safety factor of 5 Include combination recess
Department:
Electrical
Product Group:
Clamps & Supports
Product Subgroup:
Clamps
Product Type:
Pipe clamp for thinwall (EMT)
Product Details:
Pipe clamp for thinwall (EMT)
Product Material:
Steel
Product Length:
1.937 in

B-LINE B2207PAZN – Frequently Asked Questions

1) Is the Eaton B-Line B2207PAZN clamp made for EMT or for rigid conduit?
The B2207PAZN is a pipe clamp for thinwall, meaning EMT. It is sized to the outside diameter of thinwall conduit, so rigid or IMC of the same trade size will not seat correctly in it. If the run on your drawing is rigid, order a clamp built for rigid pipe OD instead.
2) What is a combination recess on a B-Line strut clamp and why does it matter on the job?
The B2207PAZN includes a combination recess, so the clamp seats into the channel lip of standard strut and keys against it rather than relying on the nut alone to hold position. It means you can set the clamp on the strut, spin the hardware, and it stays put while you square up the conduit run single-handed.
3) What material and finish is the B2207PAZN conduit clamp, and can I use it outdoors?
Steel with an electro-plated zinc finish. Electro-zinc is a light indoor-duty coating, so it suits dry interior strut runs, mechanical rooms, and covered areas. For exterior, washdown, or corrosive locations, specify a hot dip galvanized or stainless clamp instead.
4) Does the B-Line B2207PAZN clamp come with the strut nut and bolt?
Order the clamp and the channel hardware separately. The B2207PAZN is the clamp body itself; the strut nut, spring, and bolt that fasten it into the channel are not part of the clamp. Count one set of channel hardware per clamp when you build the material list.
5) What are the dimensions and weight of the B-Line B2207PAZN pipe clamp?
It measures .0635 x 1.937 x 1.25 inches (height, length, width) and weighs .09 lb each. The thin .0635 inch stock and small footprint keep it flush to the strut face, which matters when you are stacking conduit runs tight on a trapeze or working in a congested ceiling.
6) Can I standardize on one part number for EMT support across a facility?
For a single trade size of thinwall conduit, yes. The B2207PAZN is ordered as one model, so an MRO or facilities crew can stock one clamp for that size of EMT on strut. Runs of a different EMT trade size need the matching clamp for that diameter, since these are sized to the conduit OD.
