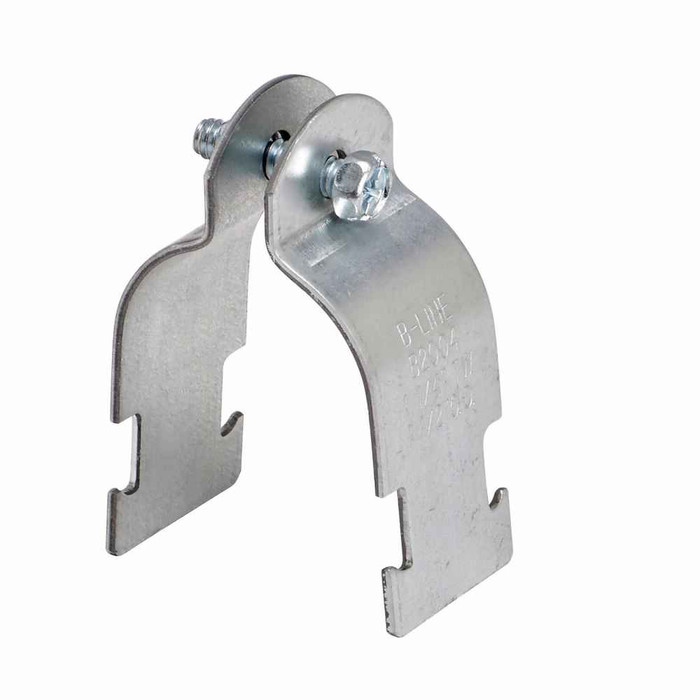

Eaton B-Line Pipe Clamp Steel 0.074 Height 2.951 Length 1.25 Width with Machine Screw

Eaton B-Line Pipe Clamp Steel with Machine Screw

Professional Conduit Support System with Integrated Fastening

The Eaton B-Line Pipe Clamp delivers exceptional structural support and installation efficiency for conduit and pipe mounting applications. This steel pipe clamp provides reliable fastening solutions designed for professional electricians, mechanical contractors, and facility installers, offering the proven strength and versatile mounting capabilities that professionals trust from the industry leader in strut channel systems.

Professional Features & Benefits

Structural Performance

• Steel Construction - Provides exceptional durability and structural integrity for demanding commercial and industrial mounting applications
• Precision Dimensions - 0.074 inch height, 2.951 inch length, and 1.25 inch width engineered for optimal fit and performance in strut channel systems
• Lightweight Design - 0.16 lb weight reduces installation burden while maintaining structural reliability for professional mounting solutions
• Integrated Machine Screw - Includes combination recess hex head machine screw for complete installation convenience and secure fastening

Installation Efficiency

• Complete Assembly - Ready-to-install design with included fastening hardware eliminates additional component sourcing and reduces installation time
• Professional Compatibility - Engineered for seamless integration with B-Line strut channel systems and standard conduit mounting applications
• Versatile Mounting - Suitable for both pipe and conduit clamping applications across electrical and mechanical system installations

Technical Specifications

Height: 0.074 inches, Length: 2.951 inches, Width: 1.25 inches, Weight: 0.16 lb, Material: Steel construction, Special Features: Includes combination recess hex head machine screw, Product Type: Pipe or conduit clamps, Product Group: Conduit & Fittings, Product Subgroup: Conduit Accessories, Certifications: Not Applicable

Installation & Usage

1. Position the pipe clamp at the desired mounting location on the strut channel or support structure
2. Place the conduit or pipe within the clamp opening ensuring proper alignment and support contact
3. Insert the included combination recess hex head machine screw through the mounting holes
4. Tighten the machine screw using appropriate hex key or screwdriver to secure the clamp and conduit
5. Verify proper clamping force and conduit security before completing the installation
6. Inspect the mounting connection to ensure structural integrity and compliance with installation standards

Professional Applications

Ideal for:

• Electrical Conduit Support - Secure mounting of EMT, rigid, and flexible conduit systems in commercial and industrial electrical installations
• Mechanical Piping Systems - Reliable support for small diameter pipes in HVAC, plumbing, and process piping applications
• Cable Management Systems - Professional organization and support of cable trays, wireways, and conduit runs in facility installations
• Equipment Mounting - Structural support for lightweight equipment, instruments, and control system components
• Industrial Support Structures - Component mounting in manufacturing facilities, processing plants, and industrial equipment installations
• Commercial Building Systems - Professional conduit and pipe support in office buildings, retail facilities, and institutional applications
• Maintenance and Retrofit Projects - Reliable mounting solutions for system upgrades, expansions, and facility modifications
• Seismic Bracing Applications - Structural support component in earthquake-resistant electrical and mechanical system installations

Steel Construction Advantage

The steel construction provides exceptional strength-to-weight ratio and structural reliability for professional mounting applications. Steel offers superior durability, dimensional stability, and long-term performance in demanding commercial and industrial environments, ensuring reliable conduit and pipe support throughout the system lifecycle.

Why Choose B-Line Quality?

B-Line's decades of structural support innovation and engineering excellence deliver the reliability and performance that electrical contractors, mechanical installers, and facility professionals demand. With industry-leading quality standards, comprehensive product compatibility, and proven field performance, B-Line pipe clamps provide the structural integrity and installation efficiency that professionals trust for critical infrastructure support applications worldwide.
