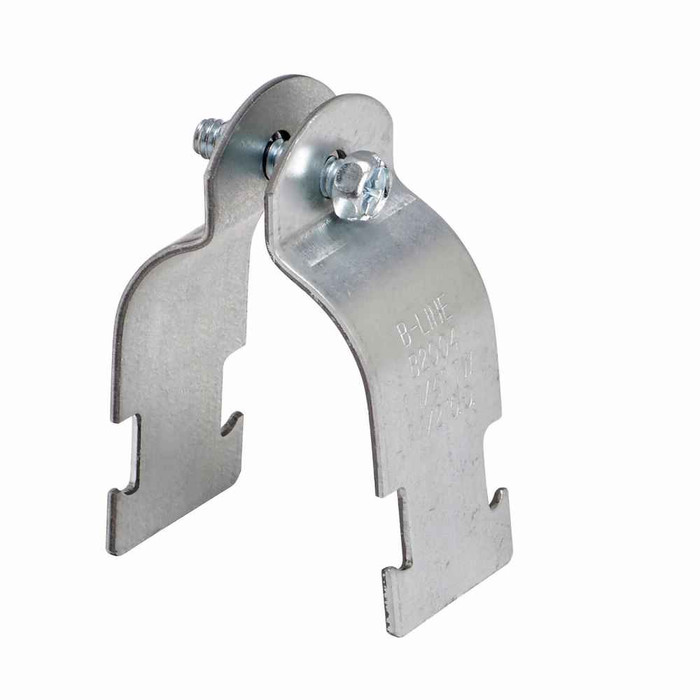

Eaton B-Line Pipe Clamp 800 lb Load Capacity Steel Hot-Dipped Galvanized with Hex Head Screw

Eaton B-Line Pipe Clamp 800 lb Load Capacity Steel Hot-Dipped Galvanized

Professional Strut Channel Pipe and Conduit Support System

The Eaton B-Line Pipe Clamp delivers exceptional structural support and installation efficiency for pipe and conduit mounting applications. This 800 lb load capacity pipe clamp provides reliable structural support designed for professional electricians, mechanical contractors, and facility installers, offering the proven strength and versatile mounting capabilities that professionals trust from the industry leader in strut channel systems.

Professional Features & Benefits

Superior Load Performance

• 800 lb Load Capacity Rating - Engineered for heavy-duty pipe and conduit support applications with reliable structural performance and safety compliance
• Steel Construction - Durable steel material provides exceptional strength and long-lasting structural integrity for demanding commercial and industrial installations
• Hot-Dipped Galvanized Finish - Superior corrosion resistance coating ensures extended service life in harsh environmental conditions and outdoor applications
• Precision Dimensions - Compact 4.394" length x 1.25" width x 0.0966" height design optimizes space utilization while maintaining structural strength

Installation Efficiency

• Combination Recess Hex Head Machine Screw Included - Complete fastening solution eliminates additional hardware procurement and ensures proper installation torque specifications
• Lightweight Design - At only 0.34 lb, reduces installer fatigue during extended mounting projects while maintaining structural performance
• Professional Mounting System - Engineered for secure attachment to strut channel systems with reliable clamping force and vibration resistance

Versatile Compatibility

• Universal Pipe and Conduit Support - Compatible with various pipe and conduit sizes for flexible installation applications across multiple trades
• B-Line System Integration - Seamlessly integrates with B-Line strut channel systems for comprehensive structural support solutions

Technical Specifications

Load Capacity: 800 lbs | Material: Steel | Finish: Hot-Dipped Galvanized | Dimensions: 4.394" L x 1.25" W x 0.0966" H | Weight: 0.34 lb | Includes: Combination recess hex head machine screw | Product Type: Pipe or conduit clamps | Certifications: Not Applicable

Installation & Usage

1. Position the pipe clamp at the desired mounting location on the strut channel system
2. Align the pipe or conduit within the clamp opening ensuring proper fit and support contact
3. Insert the included combination recess hex head machine screw through the mounting holes
4. Tighten the fastener to manufacturer specifications ensuring secure clamping force without over-torquing
5. Verify proper pipe or conduit alignment and support before completing the installation
6. Inspect all connections for proper engagement and structural integrity

Professional Applications

Ideal for:

• Electrical Conduit Support - EMT, rigid, and flexible conduit mounting in commercial and industrial electrical installations
• Mechanical Piping Systems - Water, gas, and compressed air piping support in facility mechanical rooms and utility areas
• HVAC System Supports - Refrigerant lines, condensate drains, and ductwork support connections for climate control systems
• Industrial Process Piping - Manufacturing facility pipe runs, chemical processing lines, and utility distribution systems
• Plumbing Support Systems - Water supply lines, waste piping, and fixture connections in commercial building applications
• Fire Protection Systems - Sprinkler piping, standpipe systems, and fire suppression line support installations
• Telecommunications Infrastructure - Cable tray support, conduit runs for data centers, and communication system installations
• Equipment Rack Mounting - Electrical panel supports, control cabinet mounting, and instrumentation system installations

Hot-Dipped Galvanized Advantage

The hot-dipped galvanized finish provides superior corrosion resistance compared to standard plating methods, making this pipe clamp ideal for outdoor installations, high-humidity environments, and corrosive atmospheres. This protective coating ensures long-term structural integrity and reduces maintenance requirements in demanding industrial and commercial applications.

Why Choose B-Line Quality?

B-Line's decades of structural support innovation and engineering excellence deliver the load-rated reliability and safety that professional contractors, electricians, and facility managers trust worldwide. With industry-standard compatibility and proven performance in demanding applications, B-Line pipe clamps provide the structural integrity and installation efficiency that keeps projects on schedule and within specification.
