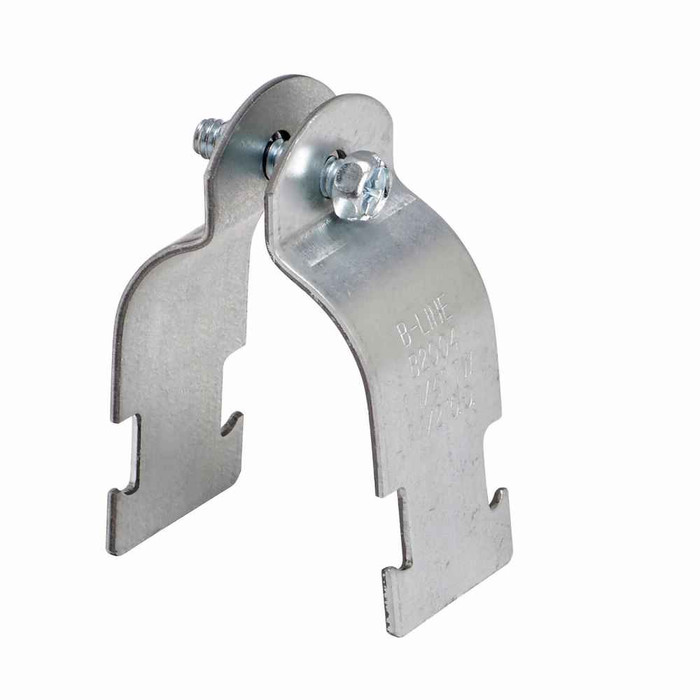

Eaton B-Line Pipe Clamp 800 lb Load Capacity Aluminum 3.78 Inch Length Strut Mount

Eaton B-Line Pipe Clamp 800 lb Load Capacity Aluminum 3.78 Inch Length Strut Mount

Professional Strut Channel Pipe Support System

The Eaton B-Line Pipe Clamp delivers exceptional structural support and installation efficiency for conduit and pipe mounting applications. This 800 lb load capacity aluminum pipe clamp provides reliable mounting solution designed for professional electricians, mechanical contractors, and facility installers, offering the proven strength and versatile mounting capabilities that professionals trust from the industry leader in strut channel systems.

Professional Features & Benefits

Superior Load Performance

• 800 lb Load Capacity Rating - Engineered for heavy-duty conduit and pipe support applications with reliable structural performance and safety compliance
• Aluminum Construction - Lightweight yet durable material provides excellent corrosion resistance and long-term structural integrity in diverse environments
• Precision Dimensions - 3.78 inch length, 1.25 inch width, and 0.1015 inch height engineered for optimal fit and professional installation compatibility
• Lightweight Design - 0.3 lb weight reduces installation effort while maintaining structural strength for efficient contractor productivity

Installation Efficiency

• Combination Recess Hex Head Machine Screw Included - Complete hardware package eliminates additional procurement and ensures proper fastening with professional-grade components
• Strut Channel Compatibility - Designed for seamless integration with B-Line strut channel systems for versatile mounting configurations
• Professional Installation Design - Engineered dimensions and mounting method optimize contractor efficiency and installation reliability

Technical Specifications

Load Capacity: 800 lbs, Material: Aluminum, Length: 3.78 inches, Width: 1.25 inches, Height: 0.1015 inches, Weight: 0.3 lb, Special Features: Includes combination recess hex head machine screw, Product Type: Pipe or conduit clamps, Product Group: Conduit & Fittings, Product Subgroup: Conduit Accessories, Certifications: Not Applicable

Installation & Usage

1. Select appropriate strut channel location and verify structural support requirements for 800 lb load capacity
2. Position aluminum pipe clamp at desired mounting location on strut channel system
3. Insert pipe or conduit into clamp opening ensuring proper fit and alignment
4. Install included combination recess hex head machine screw through mounting holes
5. Tighten fasteners to manufacturer specifications ensuring secure pipe support
6. Verify installation meets load requirements and safety standards for application

Professional Applications

Ideal for:

• Electrical Conduit Support - EMT, rigid, and flexible conduit mounting in commercial and industrial electrical installations
• Mechanical Piping Systems - HVAC piping, plumbing lines, and process piping support in facility mechanical systems
• Industrial Support Structures - Heavy-duty pipe mounting for manufacturing, processing, and industrial facility applications
• Commercial Building Systems - Office buildings, retail facilities, and institutional building conduit and pipe support
• Utility Infrastructure - Power distribution, telecommunications, and utility system conduit mounting applications
• Equipment Rack Systems - Server rooms, data centers, and telecommunications equipment pipe and conduit organization
• Seismic Bracing Applications - Earthquake-resistant pipe support systems in seismic zones requiring structural compliance
• Maintenance and Retrofit Projects - Facility upgrades, system expansions, and maintenance access improvements

Aluminum Construction Advantage

The aluminum construction provides exceptional corrosion resistance for long-term structural performance in diverse environmental conditions. This lightweight yet strong material reduces installation labor while maintaining the 800 lb load capacity required for professional conduit and pipe support applications, making it ideal for both indoor and outdoor installations where weight reduction and corrosion protection are priorities.

Why Choose B-Line Quality?

B-Line's decades of structural support innovation, commitment to load-rated reliability and safety, industry-standard compatibility, and trusted performance for contractors, electricians, and facility professionals worldwide ensure that every pipe clamp meets the demanding requirements of professional installations. The included combination recess hex head machine screw demonstrates B-Line's attention to complete installation solutions that save time and ensure proper fastening.
