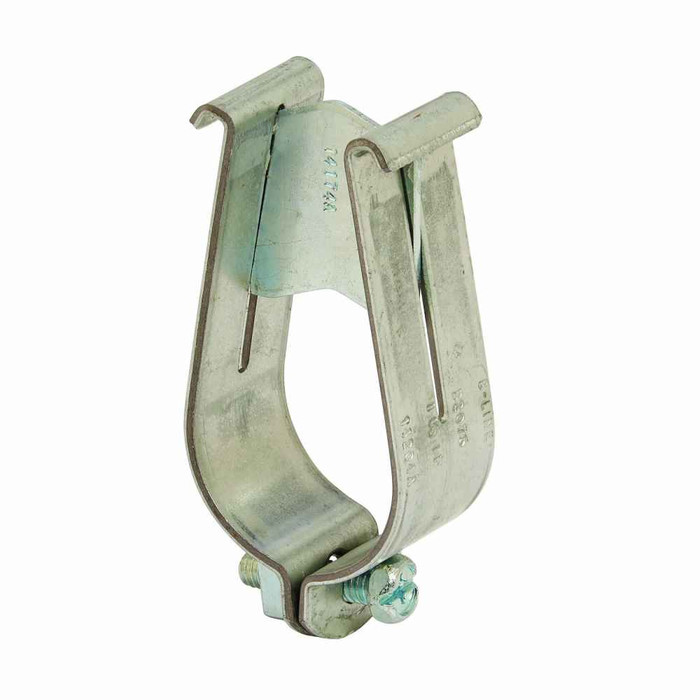

Eaton B-Line series strut pipe clamps and accessories
Manufacturer Resources
Product Specs
- Certifications:
- Not Applicable
- Load Capacity:
- 500 lbs
- Product Height:
- .12 IN
- Product Length Depth:
- 9.125 IN
- Product Weight:
- .95 LB
- Product Width:
- 1.25 IN
- Special Features:
- 1 pr pipe clamp 1 pc stand off plate 1 hex screw
- Department:
- Electrical
- Product Group:
- Clamps & Supports
- Product Subgroup:
- Clamps
- Product Type:
- Parallel pipe clamp
- Product Details:
- Parallel pipe clamp
- Product Material:
- Steel
B-LINE B2080ZN – Frequently Asked Questions
1) What comes in the B-Line B2080ZN parallel pipe clamp kit?
Each B2080ZN pack contains one pair of pipe clamps, one stand off plate, and one hex screw. So the hardware to clamp the pipe and hold it off the strut is all in the box; the strut channel itself and any channel nut are separate.
2) How much load will a B-Line B2080ZN pipe clamp hold?
The B2080ZN is rated at 500 lbs load capacity. That is the clamp assembly rating, so the strut, channel nut and anchorage behind it also have to carry the load for the run to hold.
3) What is a parallel pipe clamp used for on strut channel?
A parallel pipe clamp holds pipe running parallel to the strut instead of crossing it. The B2080ZN does this with a stand off plate between the clamp pair and the channel, which spaces the pipe off the strut face. If your pipe crosses the strut at right angles, you want a standard two-piece strut clamp or pipe strap instead.
4) Is the B2080ZN steel or stainless, and where can it be used?
Steel, in a zinc plated finish as the ZN suffix indicates. That suits dry interior electrical and mechanical work. For exterior, wet, or corrosive areas, specify a hot dip galvanized or stainless version of the clamp rather than the plated one.
5) What are the dimensions and weight of the B-Line B2080ZN clamp assembly?
The B2080ZN measures 9.125 x 1.25 x .12 inches and weighs .95 lb. The 9.125 inch figure is the long dimension of the assembly, worth checking against your available run of strut when clamps are spaced close together on the same channel.
6) How do I order the B-Line parallel pipe clamp by part number?
Order it as Eaton B-Line B2080ZN. That is the manufacturer part number for the zinc plated parallel pipe clamp kit, one pair of clamps with plate and screw per pack.
