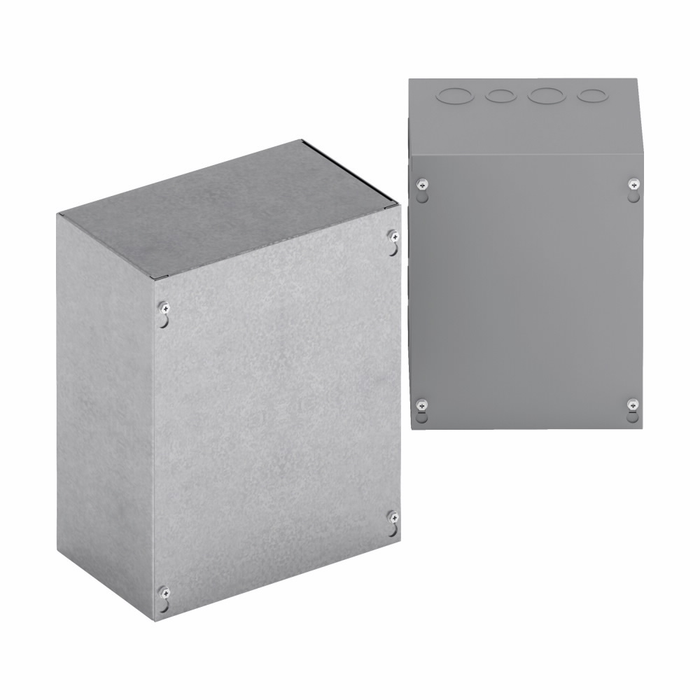

Eaton B-Line series Type 1 junction boxes, 12" height, 4" length, 8" width, NEMA 1, Screw cover, SCGV enclosure, Surface mounted, Small single door, 5 knockouts each side,4 top and bottom, Thru holes, Galvanized steel
Manufacturer Resources
Product Specs
- Bottom Knockouts:
- 5
- Certifications:
- UL 50
- Country Of Origin:
- United States
- Cover Type:
- Screw
- Finish Color:
- Unfinished
- Mounting Hole Details:
- Thru holes
- Mounting Method:
- Surface
- Nema Rating:
- 1
- Product Height:
- 12 in
- Product Length Depth:
- 4 in
- Product Weight:
- 6.2 lb
- Product Width:
- 8 in
- Side Knockouts:
- 5
- Special Features:
- Keyhole slots on cover, plated screws
- Top Knockouts:
- 5
- Wall Thickness:
- 16 gauge
- Department:
- Electrical
- Product Model:
- SCGV enclosure
- Product Color:
- Grey
- Product Style:
- Small single door
- Product Material:
- Galvanized steel
B-LINE 1284 SCGV – Frequently Asked Questions
1) Can the Eaton B-Line 1284 SCGV junction box be used outdoors or in a wet location?
No. The 1284 SCGV is a NEMA Type 1 enclosure, which is indoor use only and offers no protection against rain, splashing water, or hose-down. Keep it in dry indoor areas such as mechanical rooms, electrical closets, and interior walls. For a washdown or exterior location you need a NEMA 3R, 4, or 4X enclosure instead.
2) What are the box dimensions of the B-Line 1284 SCGV screw cover junction box?
It runs 12 inches high, 8 inches wide, and 4 inches deep. That 4 inch depth is what usually decides the job, since it sets your wire bending room and whether the box will sit within the wall or stud cavity you are mounting to. Shipping weight is 6.2 lb.
3) Does this B-Line junction box come with knockouts already, or do I have to punch my own?
Knockouts are pre-punched: 5 on each side, 5 on the top, and 5 on the bottom. That gives you conduit entry from any of four directions without pulling out a punch set. If your raceway layout needs an entry the knockouts do not line up with, you will be punching the galvanized 16 gauge steel yourself.
4) How does the 1284 SCGV mount, and is the mounting hardware part of the box?
Surface mount, with thru holes in the back of the enclosure. You supply the fasteners to suit the substrate, whether that is toggles into drywall, sleeve anchors into masonry, or screws into studs or Unistrut. Thru holes mean the fasteners pass through the box interior, so keep them clear of your conductors and terminations.
5) Is the cover on this B-Line enclosure hinged or removable?
It is a screw cover, not a hinged door, so the cover comes fully off when you open it. The cover has keyhole slots so you can back the plated screws out part way and lift the cover clear rather than fully removing every screw. If you need frequent access with one hand, a hinged-door enclosure is the better choice; for a pull box or splice point that gets opened rarely, the screw cover is the standard approach.
6) Is the Eaton B-Line SCGV junction box UL listed for an inspected commercial job?
It carries UL 50, the standard covering enclosures for electrical equipment, and is rated NEMA Type 1. Country of origin is the US. That is the documentation an inspector or spec reviewer will typically be looking for on an indoor pull or junction box.
7) How heavy gauge is the steel on this 12 x 8 x 4 junction box?
16 gauge galvanized steel throughout. That is a commercial-weight body rather than a light residential utility box, and it is why the enclosure holds its shape when you are pulling conductors through it or hanging it on a wall by its thru holes.
