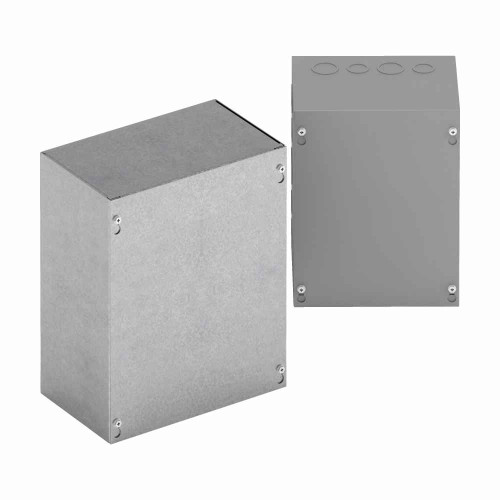

B-Line Eaton series Type 1 junction boxes, 15" height, 4" length, 15" width, 1, Screw cover, SCGV NK enclosure, Surface mounted, Small single door, N

No. The 15154 SCGV NK is a NEMA Type 1 enclosure, which is indoor use only, protecting against incidental contact and falling dirt. It has no gasket and no rating against rain, washdown, or dust ingress. For an exterior wall, a loading dock, or a washdown area you need a Type 3R, 4, or 4X box instead.

The NK in 15154 SCGV NK means no knockouts. The body ships blank, so you punch conduit entries exactly where your run lands. Bring a knockout punch set for the trade sizes you need. If you'd rather have factory openings, order the knockout version of the same size instead.

Yes, the 15154 SCGV NK carries UL 50, the standard covering enclosures for electrical equipment, and it is a NEMA Type 1 enclosure. It is made in the US, which matters if your project carries domestic sourcing language.

It's a 15 x 15 x 4 inch box: 15 inch height, 15 inch width, and 4 inch length/depth. That 4 inch depth gives room for splices and pulling, and the square 15 inch face is a common size for a wiring gutter or pull point in a panel run. Shipping weight is about 11.7 lb.

It's a screw cover with plated screws, and the cover has keyhole slots. You back the screws out part way, lift the cover off the keyholes, and the screws stay captive in the box flange, so a single electrician can pull the cover without juggling loose hardware overhead. There's no hinge and no latch, so plan on tool access every time you open it.

Surface mount, using thru holes in the back of the box. Anchor straight to block, drywall with suitable anchors, or strut. Fasteners are not supplied, so pick anchors rated for the substrate and the 11.7 lb box plus whatever conductors land in it. It is not designed to be flush or recessed into a finished wall.

Body and cover are 16 gauge galvanized steel, unfinished, grey in appearance. The zinc coating handles normal indoor humidity in a mechanical or electrical room, but it isn't a corrosion-rated enclosure. For anything wet, corrosive, or exposed, step up to a stainless or coated Type 4X box.

A screw cover box like the 15154 SCGV NK suits splice points, pull boxes, and gutters you open rarely, since every access means backing out cover screws. If the box holds controls, terminal blocks, or anything a technician opens routinely, a hinged cover enclosure is the better call. The keyhole slots here make removal quicker than plain clearance holes, but it's still a tool-off cover.
