B-Line Eaton series Type 3/3R ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$829.41

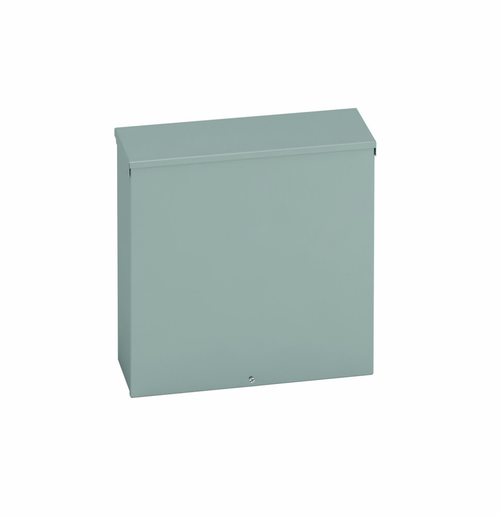

B-Line Eaton series Type 3/3R junction boxes, 16" height, 6" length, 16" width, 3R, Screw cover, RTSC NK enclosure, Surface mounted, Small single doo

B-Line Eaton series Type 3/3R junction boxes, 16" height, 6" length, 16" width, 3R, Screw cover, RTSC NK enclosure, Surface mounted, Small single doo

(No reviews yet) Write a Review

Model: 16166 RTSC NK
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$829.41
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series Type 3/3R junction boxes, 16" height, 6" length, 16" width, NEMA 3R, Screw cover, RTSC NK enclosure, Surface mounted, Small single door, No knockout, Embossed thru holes, Carbon steel

Manufacturer Resources

Product Specs

Certifications:
UL 50
Closure Type:
Flanged cover
Country Of Origin:
United States
Cover Type:
Screw
Finish Color:
Painted
Mounting Hole Details:
Embossed thru holes
Mounting Method:
Surface
Nema Rating:
3R
Product Height:
16 in
Product Length Depth:
6 in
Product Weight:
15.1 lb
Product Width:
16 in
Special Features:
Rain hood, plated screws
Wall Thickness:
16 gauge
Department:
Electrical
Product Model:
RTSC NK enclosure
Product Color:
ANSI 61 Grey
Product Style:
Small single door
Product Material:
Carbon steel
Product Length:
6 in

B-LINE 16166 RTSC NK – Frequently Asked Questions

1) Can the Eaton B-Line 16166 RTSC NK junction box be mounted outdoors?
Yes. The 16166 RTSC NK is a NEMA 3R enclosure, so it is built for outdoor use against falling rain and dripping water. It comes with a rain hood and plated screws for that service. NEMA 3R does not cover hosedown, washdown, or dust-tight duty, so if the location gets pressure washing or windblown dust you want a 4 or 4X type instead.
2) What are the actual box dimensions of the B-Line 16166 RTSC NK enclosure?
It measures 16 inches high, 16 inches wide, and 6 inches deep. That 6 inch depth is the number to check first if you are stacking terminal blocks, a DIN rail, or wire bundles behind the cover, since the screw cover sits flanged over the opening.
3) Does this B-Line junction box come with knockouts for conduit?
No. The 16166 RTSC NK is the no-knockout version, so every conduit entry gets punched or drilled in the field. That is the usual choice for a 3R outdoor box because you control where the penetrations land and can keep them out of the top surface. If you want factory openings, order a knockout version of the same box instead.
4) How does this enclosure mount to a wall, and does it need a separate mounting kit?
It surface mounts using embossed thru holes in the back of the box, so no external mounting feet or panel brackets are required. You supply the fasteners suited to the wall. Note the holes pass through the enclosure back, so seal the fastener heads if the mounting surface is exposed.
5) What gauge steel and finish is the B-Line 16166 RTSC NK made from?
Carbon steel at 16 gauge, painted in ANSI 61 grey. ANSI 61 is the standard grey used across industrial control gear, so it matches adjacent panels and starters on most plant and utility installs.
6) Is the cover hinged or does it screw on?
Screw cover, flanged. The whole cover comes off when you back out the plated screws, which gives you full access to the 16 by 16 inch opening for pulling and terminating, but it also means you are handling a loose cover on a ladder. If the box will be opened often for service, a hinged door style is the easier choice.
7) How heavy is the 16166 RTSC NK box for a one-person install?
15.1 lb empty. A single installer can hold it to the wall, but with 16 gauge steel and a 16 by 16 inch face it is awkward overhead, so mark and start your top fasteners first before hanging it on them.
