B-Line Eaton series Type 3/3R ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$2,081.24

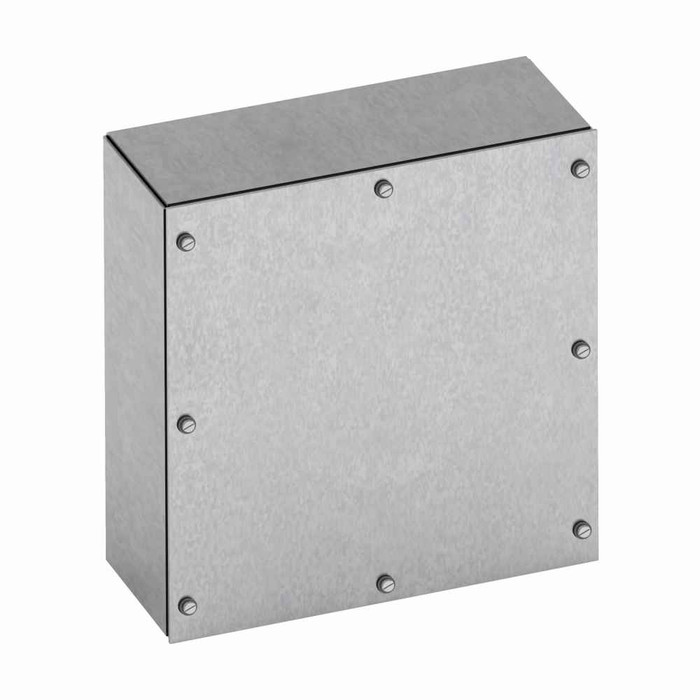

B-Line Eaton series Type 3/3R junction boxes, 20" height, 8" length, 20" width, 3 and 12, Screw cover, SCG enclosure, Surface mounted, Medium single

B-Line Eaton series Type 3/3R junction boxes, 20" height, 8" length, 20" width, 3 and 12, Screw cover, SCG enclosure, Surface mounted, Medium single

(No reviews yet) Write a Review

Model: 20208 SCG
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$2,081.24
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series Type 3/3R junction boxes, 20" height, 8" length, 20" width, NEMA 3 and 12, Screw cover, SCG enclosure, Surface mounted, Medium single door, No mounting provisions, Galvanized steel, Oil-resistant gasket, gasketed screws

Manufacturer Resources

Product Specs

Certifications:
UL 50
Country Of Origin:
United States
Cover Type:
Screw
Finish Color:
Unfinished
Mounting Hole Details:
No mounting provisions
Mounting Method:
Surface
Nema Rating:
3
Product Height:
20 in
Product Length Depth:
8 in
Product Weight:
39.2 lb
Product Width:
20 in
Wall Thickness:
14 gauge
Department:
Electrical
Product Model:
SCG enclosure
Product Color:
Grey
Product Style:
Medium single door
Product Material:
Galvanized steel

B-LINE 20208 SCG – Frequently Asked Questions

1) What are the exact box dimensions on the B-Line 20208 SCG enclosure?
20 inches high, 20 inches wide, and 8 inches deep. That 8 inch depth is what usually decides the job, since it sets how much room you have behind the cover for gutter bends, terminal blocks or a small panel. The box weighs 39.2 lb empty.
2) Does this B-Line screw cover enclosure come with mounting feet or brackets?
No. The 20208 SCG ships with no mounting provisions, so there are no factory feet, brackets or keyhole slots. It is a surface mount enclosure, so plan on B-Line external mounting feet or your own strut and hardware. Budget for a two-person lift or a solid backing, the empty box alone is 39.2 lb.
3) Is the 20208 SCG a screw cover or a hinged door enclosure?
Screw cover. The cover lifts off entirely once the gasketed screws are backed out, which is what maintains the Type 3/3R seal but also means you need clear space in front and somewhere to set the panel down. If a tech opens it weekly, a hinged cover version is the easier choice; for a pull box or splice point opened rarely, the screw cover is the right call.
4) Are there knockouts in this B-Line junction box for conduit?
The 20208 SCG is supplied as a blank enclosure, so conduit entries are field drilled or punched to suit your run. Use gasketed or raintight hubs on any hole you make on an outdoor install, otherwise you defeat the Type 3/3R rating the enclosure is built to. The walls are 14 gauge galvanized steel, so a hole saw or knockout punch rated for 14 gauge steel is what you want.
5) Is this B-Line enclosure UL listed, and where is it made?
The 20208 SCG is listed to UL 50, the standard for enclosures for electrical equipment, and it is made in the US. That combination is what most government, healthcare and education specs are looking for on a junction or pull box.
6) What part number do I order for this 20 x 20 x 8 B-Line screw cover box?
Order Eaton B-Line catalog number 20208 SCG. The number reads out as the dimensions plus the type: 20 high, 20 wide, 8 deep, SCG for screw cover galvanized. It is a medium single door style enclosure.
