B-Line Eaton series Type 3/3R ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$547.40

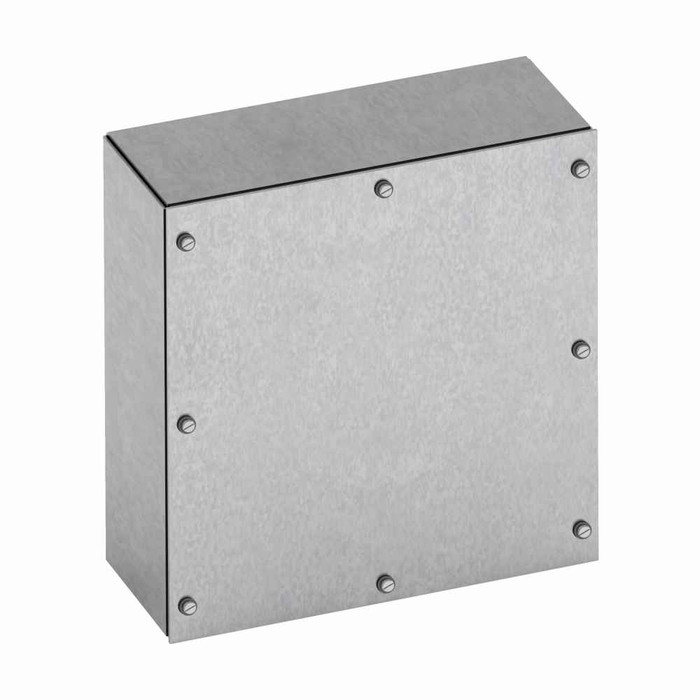

B-Line Eaton series Type 3/3R junction boxes, 8" height, 4" length, 6" width, 3 and 12, Screw cover, SCG enclosure, Surface mounted, Small single doo

B-Line Eaton series Type 3/3R junction boxes, 8" height, 4" length, 6" width, 3 and 12, Screw cover, SCG enclosure, Surface mounted, Small single doo

(No reviews yet) Write a Review

Model: 864 SCG
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$547.40
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series Type 3/3R junction boxes, 8" height, 4" length, 6" width, NEMA 3 and 12, Screw cover, SCG enclosure, Surface mounted, Small single door, No mounting provisions, Galvanized steel, Oil-resistant gasket, gasketed screws

Manufacturer Resources

Product Specs

Certifications:
UL 50
Country Of Origin:
United States
Cover Type:
Screw
Finish Color:
Unfinished
Mounting Hole Details:
No mounting provisions
Mounting Method:
Surface
Nema Rating:
3
Product Height:
8 in
Product Length Depth:
4 in
Product Weight:
5.2 lb
Product Width:
6 in
Wall Thickness:
14 gauge
Department:
Electrical
Product Model:
SCG enclosure
Product Color:
Gray
Product Style:
Small single door
Product Material:
Galvanized steel

B-LINE 864 SCG – Frequently Asked Questions

1) Can the Eaton B-Line 864 SCG junction box be used outdoors or in a wet location?
The 864 SCG is a Type 3/3R enclosure, so it is built for outdoor use against rain, sleet and windblown dust, and it also carries a Type 12 rating for indoor dust and dripping oil or coolant. The seal comes from an oil-resistant gasket and gasketed cover screws, and the body is galvanized steel. It is UL 50 listed. For washdown or hosedown areas you want a Type 4 or 4X box instead, not this one.
2) Does the B-Line 864 SCG come with mounting feet or holes for surface mounting?
No. The 864 SCG has no mounting provisions, so there are no factory mounting holes or brackets in the back. It is a surface-mount style box, which means the installer supplies the mounting method, typically panel or wall anchors through holes you drill, or an external mounting bracket. Plan on that hardware as a separate line on your order.
3) Does the 864 SCG junction box come with knockouts, or do I have to punch my own conduit openings?
The 864 SCG is supplied as a sealed screw-cover enclosure with no knockout pattern called out, so treat it as a blank box and punch your own conduit entries where you need them. That is normal for a Type 3R gasketed box: any opening you make has to be resealed with a rated hub or fitting to keep the rating intact. Punch the sides or bottom rather than the top so water cannot sit at the entry.
4) Is the cover on the B-Line 864 hinged or screw-on?
Screw cover. The 864 SCG uses gasketed screws around the perimeter rather than a hinge or latch, which is what lets it hold the gasket seal evenly. That is fine for a junction or pull box you rarely open, but if you need frequent access for terminations or metering, a hinged-door enclosure will save you time on every service call.
5) Is the 864 SCG made in the USA?
Yes, the Eaton B-Line 864 SCG enclosure is US country of origin, which matters if your project carries a domestic sourcing requirement on a government, school or healthcare job.
