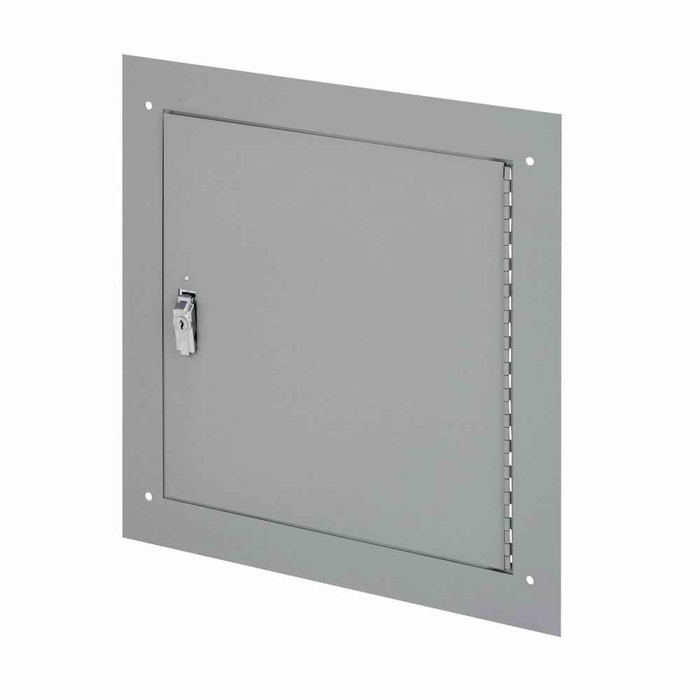

B-Line Eaton series utility cabinets, 1, ANSI 61 gray, Protects against contact with enclosed equipment, Steel, Type 1 telephone termination cabinet,

No. The 4824 TCF is a NEMA 1 enclosure, which means indoor use only, protecting personnel against contact with the enclosed equipment. It offers no rating against rain, washdown, dust, or corrosive environments. For an exterior wall, a loading dock, or anywhere subject to moisture, you need a NEMA 3R or 4 rated cabinet instead.

The cabinet is 43 inches high, 19 inches wide, and 43 inches deep per the published dimensions, and it is built for flush mounting, so it sets into the wall cavity with the trim door at the finished surface. Frame the wall and coordinate stud spacing around those figures before the drywall goes up, because a flush cabinet is not something you retrofit easily into a finished wall.

Yes. It uses a JIC 4 and 12 style flush lock, the standard keyed latch used on industrial enclosure doors, which keeps the termination field closed to anyone without the key. That matters in tenant spaces and common corridors where the cabinet sits in a public area.

It is built as a flush mount cabinet, so it is intended to be recessed into the wall with the door flange against the finished surface. If the wall is masonry, already finished, or too shallow to take the enclosure body, specify a surface mount utility cabinet rather than trying to adapt this one.

It houses the point where incoming telephone or low voltage cabling is terminated onto blocks or panels inside a building, keeping the splice field enclosed, locked, and out of reach. The 4824 TCF is the recessed version, so it can sit in a corridor or tenant wall without a box projecting into the space, and the steel door keeps the terminations protected from casual contact.

The manufacturer part number is 4824 TCF, from the Eaton B-Line series utility cabinets line. Order by that number to get the NEMA 1, flush mount, gray painted steel telephone termination cabinet with the JIC flush lock.

Steel construction, 12 gauge, finished in ANSI 61 gray paint. The gray is the standard industrial enclosure color, so it will match other Eaton B-Line gear and most switchgear already in a mechanical or telecom room without a repaint.

It weighs 34 lb. That is a two-hand lift but manageable, though holding a 43 inch tall box plumb and square in a stud bay while fastening it is realistically a two-person task.
