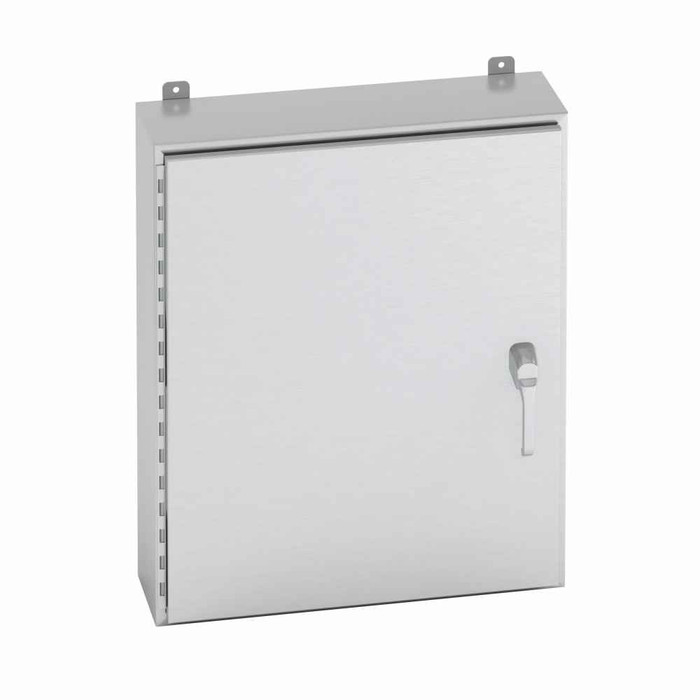

Eaton B-Line series wall mounted panel enclosure
Manufacturer Resources
Product Specs
- Certifications:
- UL 508A
- Closure Type:
- Hinged
- Country Of Origin:
- US
- Cover Type:
- Hinged
- Finish Color:
- #4 brushed
- Locking Provisions:
- Key lock padlock provision
- Mounting Hole Details:
- External mounting feet
- Nema Rating:
- 4X
- Product Height:
- 42 IN
- Product Length Depth:
- 10 IN
- Product Weight:
- 99.4 LB
- Product Width:
- 30 IN
- Special Features:
- 3-pt latching handle
- Wall Thickness:
- 14 gauge
- Department:
- Electrical
- Product Model:
- 4XS3PT enclosure
- Product Color:
- Grey
- Mounting Method:
- Wall
- Product Style:
- Medium single door
- Product Material:
- 304 stainless steel
B-LINE 423010-4XS3PT – Frequently Asked Questions
1) What are the enclosure dimensions on the B-Line 423010-4XS3PT?
The 423010-4XS3PT measures 42 inches high, 30 inches wide, and 10 inches deep. That is the standard 42x30x10 body size the part number reads out, so you can lay out backpanel space and conduit entries around it before it lands on site.
2) Can this stainless enclosure be used in a washdown or outdoor area?
It carries a NEMA 4X rating and is built from 304 stainless steel, which is the combination specified for washdown, corrosive, and outdoor wall locations. The door is hinged with a gasketed-style closure and the body is 14 gauge.
3) Does this Eaton B-Line enclosure mount flush to the wall or does it stand off?
It ships with external mounting feet for wall mounting, so the back of the box stands off the wall surface rather than sitting flat against it. That gap is what keeps water and contaminants from being trapped behind a 4X box, and it means the fasteners are outside the sealed interior.
4) How does the door latch and can it be locked out?
A 3-point latching handle secures the door at three points along the opening, which is what keeps the seal even across a 42 inch tall door. The handle has a key lock and padlock provision, so you can pin it for lockout or restrict access on a plant floor.
5) Is the 423010-4XS3PT rated for building an industrial control panel?
Yes, it is certified to UL 508A, the standard for industrial control panels. That is the listing a panel shop needs when the finished assembly gets a 508A label.
6) How much does this 42x30x10 stainless enclosure weigh, and can one person hang it?
It weighs 99.4 lb empty. At that weight plan on two people and lag anchors sized for the mounting feet into solid structure or unistrut, not hollow wall alone, before you add a backpanel and components.
7) Is this a single door or double door enclosure, and does a backpanel come with it?
It is a medium single door, hinged cover design. The part number 423010-4XS3PT covers the enclosure with its 3-point handle; a backpanel is ordered separately and should be sized to the 42 x 30 body.
8) What does the finish look like on this B-Line stainless panel enclosure?
The exterior is a #4 brushed stainless finish, the standard directional grain used on food, pharma, and washdown equipment. It is uncoated 304 stainless, so the grey appearance is the metal itself rather than paint.
9) Where is the Eaton B-Line 423010-4XS3PT made?
Country of origin is the United States, which matters if your project carries domestic sourcing requirements on electrical gear.
