B-Line Eaton series wall mount...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$2,068.89

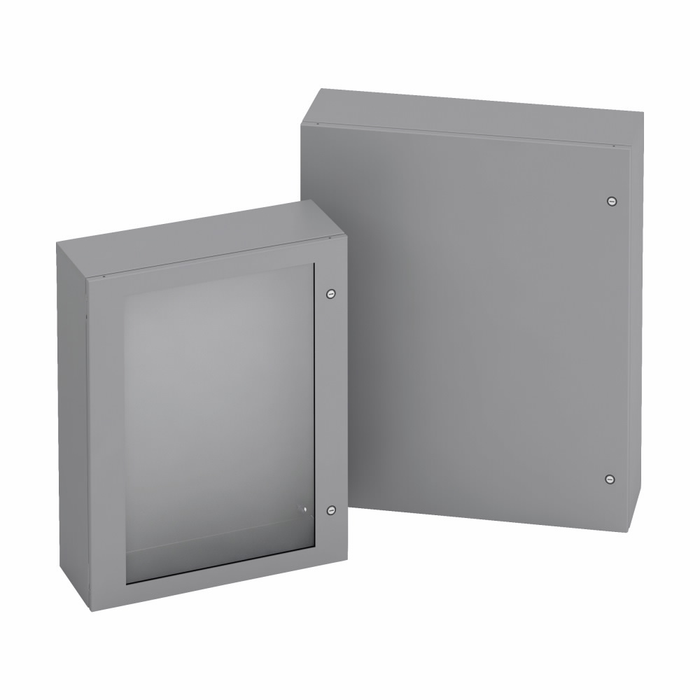

B-Line Eaton series wall mounted panel enclosure,12" height,6" length,12" width, 4,Hinged cover,SDW enclosure,Wall mount,Medium single door,Thru holes

B-Line Eaton series wall mounted panel enclosure,12" height,6" length,12" width, 4,Hinged cover,SDW enclosure,Wall mount,Medium single door,Thru holes

(No reviews yet) Write a Review

Model: 12126-SDW
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$2,068.89
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series wall mounted panel enclosure,12" height,6" length,12" width,NEMA 4,Hinged cover,SDW enclosure,Wall mount,Medium single door,Thru holes,optional external mounting feet,Carbon steel,Seamless poured in-place gasket

Manufacturer Resources

Product Specs

Certifications:
UL 50
Closure Type:
Hinged
Country Of Origin:
US
Cover Type:
Hinged
Finish Color:
Painted
Mounting Hole Details:
Thru holes, optional external mounting feet
Mounting Method:
Wall
Nema Rating:
4
Product Height:
12 in
Product Length Depth:
6 in
Product Weight:
11.3 lb
Product Width:
12 in
Special Features:
1/4 turn latches
Wall Thickness:
16 gauge, 16 gauge
Department:
Electrical
Product Model:
SDW enclosure
Product Color:
ANSI 61 Grey
Product Style:
Medium single door
Product Material:
Carbon steel

B-LINE 12126-SDW – Frequently Asked Questions

1) Can the Eaton B-Line 12126-SDW enclosure be used outdoors or in a washdown area?
The 12126-SDW carries a NEMA 4 rating, so it is built for indoor or outdoor use against windblown dust, rain, splashing water and hose-directed water. The seal comes from a seamless poured in-place gasket on the hinged cover, and the cover is held down with 1/4 turn latches. It is painted carbon steel, so in salt spray or corrosive chemical wash areas a stainless or non-metallic enclosure is the better choice.
2) What are the actual box dimensions of the B-Line 12126-SDW, and will a panel fit inside?
Outside box size is 12 inches high by 12 inches wide with a 6 inch depth. That 6 inch depth is what decides whether your device, terminal blocks or small panel clears the door once wiring is dressed. The enclosure ships as an empty single door box, so any back panel, DIN rail or subpanel is a separate order.
3) How does the 12126-SDW mount to a wall, and does it come with mounting feet?
It is a wall mount box with thru holes in the back for bolting flat against a wall or a strut rack. External mounting feet are an option, not included, and you would use those when you need the box held off the surface so water or washdown can run behind it. At 11.3 pounds empty, standard anchors into block or a stud are enough before you add the weight of the gear inside.
4) Does drilling conduit holes in a NEMA 4 enclosure void the rating?
The box itself is UL 50 listed with a NEMA 4 rating, and that rating is preserved through the enclosure body and the gasketed hinged cover. Any hole you cut has to be sealed with a NEMA 4 rated hub or watertight fitting, and on a 16 gauge carbon steel wall you will want a punch rather than a hole saw to keep the opening clean. Cut into the bottom or sides, never the top, if you want the installation to hold the rating.
5) Is the hinged cover better than a screw cover for this size enclosure?
A hinged cover with 1/4 turn latches is what you want anywhere the box gets opened for service, testing or resetting a device. The door stays attached and you open it by hand with no tools and no loose screws to drop into a wet area. Screw cover boxes make more sense on a pull box or junction box that gets opened once at install and left alone.
6) What part number do I order for the 12 x 12 x 6 B-Line single door wall enclosure?
The catalog number is 12126-SDW from Eaton's B-Line series. The digits read as the dimensions: 12 inch height, 12 inch width, 6 inch depth, with SDW designating the single door wall mount style.
7) What gauge steel and finish is the B-Line SDW enclosure, and will it match my other panels?
Body and cover are both 16 gauge carbon steel, painted ANSI 61 grey. That grey is the standard industrial control panel color, so it will line up visually with most existing switchgear and control enclosures on a plant wall. The enclosure is made in the US.
