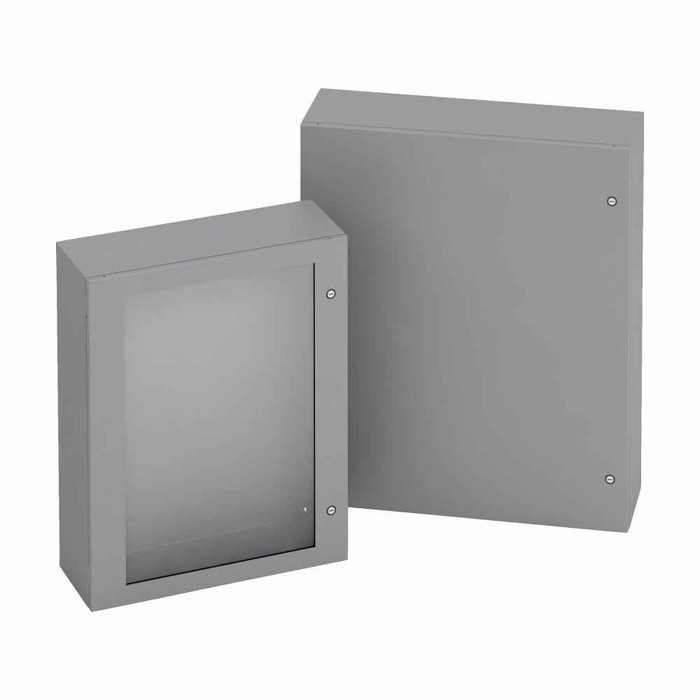

B-LINE NEMA 4 Wall Mount Panel Enclosure 48" x 36" x 16" Carbon Steel with Hinged Cover

B-LINE NEMA 4 Wall Mount Panel Enclosure 48" x 36" x 16" Carbon Steel with Hinged Cover

Professional NEMA 4 Protection for Critical Electrical Components

The B-LINE NEMA 4 wall mount panel enclosure delivers reliable protection for electrical equipment with its robust 48" x 36" x 16" carbon steel construction. This medium single door enclosure features a hinged cover with seamless poured in-place gasket, providing NEMA 4 rated protection against dust, dirt, and water ingress. The wall mount design with optional external mounting feet offers versatile installation options for professional electrical applications.

Professional Features & Benefits

• NEMA 4 Rating: Provides superior protection against dust, dirt, windblown rain, and hose-directed water for reliable equipment operation in demanding environments.
• 48" x 36" x 16" Dimensions: Generous interior space accommodates multiple electrical components and control panels with room for proper wire management and service access.
• Carbon Steel Construction: 14 gauge carbon steel walls deliver exceptional durability and structural integrity for long-term protection of critical electrical equipment.
• Hinged Cover Design: Single door hinged cover with 1/4 turn 3-point latching system ensures secure closure while providing convenient access for maintenance and service.
• Seamless Gasket System: Poured in-place gasket creates a continuous seal around the entire perimeter, eliminating potential leak points and maintaining NEMA 4 integrity.
• UL 50 Certification: UL listed construction meets rigorous safety and performance standards for professional electrical installations.
• Wall Mount Flexibility: Wall mounting capability with optional external mounting feet provides versatile installation options to suit various facility requirements.

Technical Specifications

• Certifications: UL 50
• Closure Type: Hinged
• Color: ANSI 61 gray
• Country Of Origin: US
• Cover Type: Hinged
• Department: Electrical
• Finish Color: Painted
• Material: Carbon steel
• Mounting Hole Details: Thru holes, optional external mounting feet
• Mounting Method: Wall
• Nema Rating: 4
• Product Height: 48 in
• Product Length Depth: 16 in
• Product Model: SD enclosure
• Product Weight: 134.1 lb
• Product Width: 36 in
• Special Features: 1/4 turn with 3-pt latching
• Style: Medium single door
• Wall Thickness: 14 gauge, 14 gauge

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Industrial Control Panels and Motor Control Centers
• Commercial Building Electrical Distribution
• Manufacturing Facility Power Management
• Outdoor Electrical Equipment Protection
• Water Treatment and Processing Facilities
• Food Processing and Agricultural Applications
• Telecommunications and Data Center Infrastructure

Why Choose B-LINE Quality?

B-LINE enclosures are manufactured in the US with UL 50 certification, ensuring compliance with rigorous safety and performance standards. The NEMA 4 rating and 14 gauge carbon steel construction provide long-term durability and reliable protection for critical electrical components. The ANSI 61 gray painted finish offers professional appearance and corrosion resistance for extended service life in demanding environments.
