B-Line Eaton series wall mount...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$6,265.43

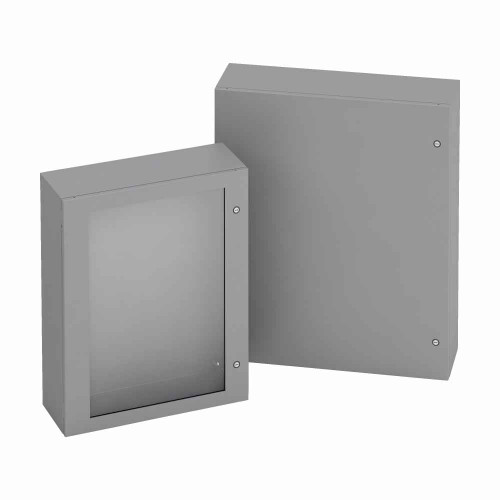

B-Line Eaton series wall mounted panel enclosure,60" height,36" length,36" width, 4,Hinged cover,SD enclosure,Wall mount,Medium single door,Thru holes

B-Line Eaton series wall mounted panel enclosure,60" height,36" length,36" width, 4,Hinged cover,SD enclosure,Wall mount,Medium single door,Thru holes

(No reviews yet) Write a Review

Model: 603620-SD
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$6,265.43
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series wall mounted panel enclosure,60" height,36" length,36" width,NEMA 4,Hinged cover,SD enclosure,Wall mount,Medium single door,Thru holes,optional external mounting feet,Carbon steel,Seamless poured in-place gasket

Manufacturer Resources

Product Specs

Certifications:
UL 50
Closure Type:
Hinged
Country Of Origin:
US
Cover Type:
Hinged
Finish Color:
Painted
Mounting Hole Details:
Thru holes, optional external mounting feet
Mounting Method:
Wall
Nema Rating:
4
Product Height:
60 in
Product Length Depth:
36 in
Product Weight:
176.8 lb
Product Width:
36 in
Special Features:
1/4 turn with 3-pt latching
Wall Thickness:
14 gauge, 14 gauge
Department:
Electrical
Product Model:
SD enclosure
Product Color:
ANSI 61 Grey
Product Style:
Medium single door
Product Material:
Carbon steel

B-LINE 603620-SD – Frequently Asked Questions

1) Can the B-Line 603620-SD enclosure be used outdoors or in a washdown area?
The 603620-SD is a NEMA 4 rated enclosure, so it is built for hosedown and outdoor-type exposure against splashing water and windblown dust. The seal comes from a seamless poured in-place gasket, and the box carries a UL 50 listing. Carbon steel construction with a painted ANSI 61 grey finish.
2) How heavy is the B-Line 603620-SD enclosure and what does that mean for hanging it?
176.8 lb empty. That is a two-person lift at minimum, and with panel and gear inside it climbs fast. The back has thru holes for direct wall fastening, and external mounting feet are available as an option if you want to stand it off the wall. Fasten into structure, not just sheathing.
3) Does this B-Line SD enclosure have a hinged door or a bolt-on cover?
Hinged. The 603620-SD is a medium single door style with a hinged cover, so the door swings rather than lifting off, and one person can open it in place. It uses a 1/4 turn latch with 3-point latching, which pulls the door tight top, center and bottom against the gasket to hold the NEMA 4 seal.
4) Will a NEMA 4 enclosure like this hold up in a corrosive or chemical environment?
NEMA 4 covers water and dust, not corrosion. The 603620-SD is painted carbon steel, which is right for general indoor and outdoor industrial use but not for washdown with caustics, chlorides, or food plant chemical exposure. For those, step up to a NEMA 4X stainless enclosure instead of this carbon steel body.
5) Does the B-Line 603620-SD come with knockouts for conduit?
No. This is a thru-hole enclosure, meaning the only factory holes are the mounting thru holes on the back. The body comes solid, so you drill or punch your own conduit entries on site and seal them with rated hubs to keep the NEMA 4 rating intact.
6) Where is the Eaton B-Line 603620-SD enclosure made?
United States. For federal, state, and institutional jobs carrying domestic sourcing language, the 603620-SD lists US as country of origin and carries a UL 50 listing.
