B-Line Eaton series wireway, 1...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$2,778.48

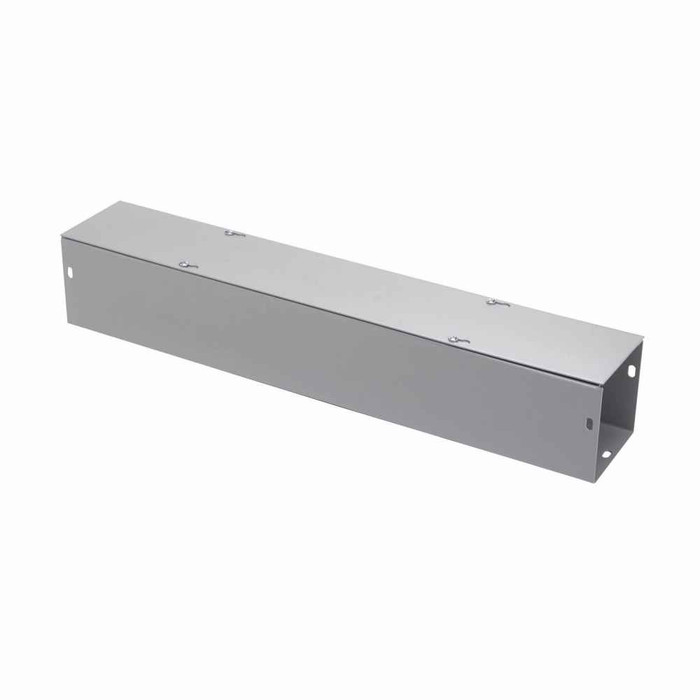

B-Line Eaton series wireway, 12" height, 72" length, 12" width, G NK wireway, Thru holes, No knockouts, Screw cover, 1, Steel, Plated screws, ANSI 61

B-Line Eaton series wireway, 12" height, 72" length, 12" width, G NK wireway, Thru holes, No knockouts, Screw cover, 1, Steel, Plated screws, ANSI 61

(No reviews yet) Write a Review

Model: 121272 G NK
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$2,778.48
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series wireway, 12" height, 72" length, 12" width, G NK wireway, Thru holes, No knockouts, Screw cover, NEMA 1, Steel, Plated screws, ANSI 61 gray, 14 gauge

Manufacturer Resources

Product Specs

Certifications:
CSA Certified
Closure Type:
Plated screws
Finish Color:
ANSI 61 gray
Material Thickness:
14 gauge
Mounting Method:
Thru holes
Product Height:
12 in
Product Length Depth:
72 in
Product Weight:
60.129 lb
Product Width:
12 in
Special Features:
Cover is secured with plated screws
Department:
Electrical
Product Type:
G NK wireway
Product Details:
G NK wireway

B-LINE 121272 G NK – Frequently Asked Questions

1) Is the B-Line 121272 G NK wireway rated for outdoor or wet locations?
No. The 121272 G NK is a NEMA 1 wireway, which means general purpose indoor use only. It has no gasketing and the cover is held on by plated screws, so it is not suitable for outdoor, washdown, or damp locations. For an exterior run or anywhere water can hit the trough, you need a NEMA 3R or 4 rated wireway instead.
2) Does this B-Line wireway come with knockouts for conduit?
No knockouts. The 121272 G NK is the NK (no knockout) version, so every conduit entry has to be field punched or drilled where you want it. If you'd rather have factory openings on a standard pattern, order the knockout version of the same size instead of this one.
3) How does the cover come off on the B-Line 121272 G NK, and do I need it off to pull wire?
It's a screw cover, secured with plated screws along the trough. Pull the screws and the full length of the cover lifts away, giving you the whole 72 inch opening to lay conductors in rather than fishing them. Plan on a few minutes per stick, and keep the screws, since there is no hinge or latch to fall back on.
4) What gauge steel is this B-Line wireway and what color is it painted?
14 gauge steel, finished in ANSI 61 gray. That's the standard gray used on most switchgear and panel enclosures, so a run of this trough matches the equipment it feeds without repainting.
5) Is the B-Line 121272 G NK wireway third-party certified for an inspected job?
It is CSA Certified, which is what an inspector on a Canadian job or a spec calling for third-party listed wireway will look for. The trough is NEMA 1, general purpose indoor.
6) What is the model number to order this B-Line 12 x 12 x 72 screw cover wireway?
Order it as B-Line 121272 G NK. The number reads as the size and type: 12 inch height, 12 inch width, 72 inch length, G series screw-cover, NK for no knockouts.
