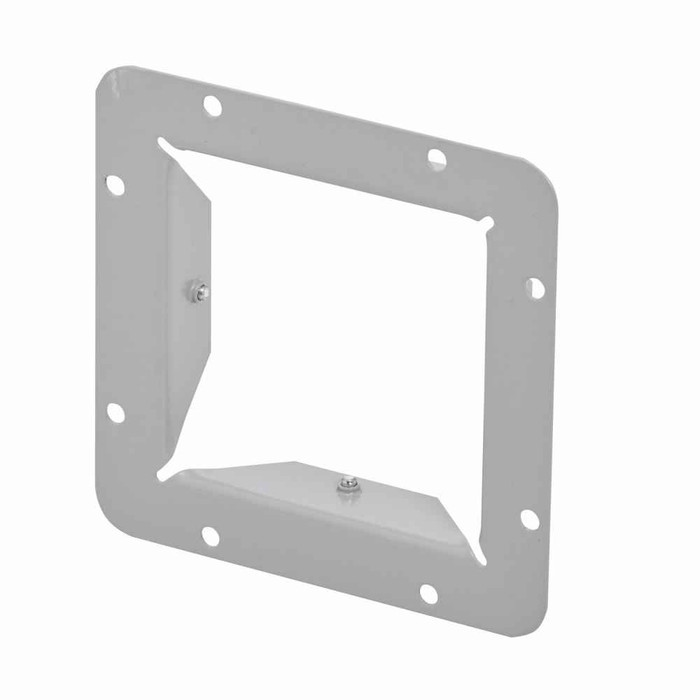

Eaton B-Line series wireway end flange, Wireway end flange, NEMA 1, Steel, ANSI 61 gray painted, 4" X 4"
Manufacturer Resources
Product Specs
- Certifications:
- UL Listed
- Degree Of Protection:
- 1
- Finish Color:
- ANSI 61 gray painted
- Product Height:
- 4 in
- Product Length Depth:
- 5.784 in
- Product Weight:
- .407 lb
- Product Width:
- 4 in
- Department:
- Electrical
- Product Type:
- Wireway end flange
- Product Details:
- Wireway end flange
- Product Material:
- Steel
- Product Length:
- 5.784 in
B-LINE 44 HSF – Frequently Asked Questions
1) What size wireway does the B-Line 44 HSF end flange fit?
The Eaton B-Line 44 HSF end flange is sized for 4 inch by 4 inch wireway, matching a 4 inch height and 4 inch width. If your trough run is 6x6 or 8x8, this flange will not cover the opening and you need the flange made for that cross section.
2) Can I use this B-Line wireway end flange in a washdown or outdoor location?
No. The 44 HSF end flange is a NEMA 1 rated part, which is indoor, general purpose enclosure protection only, with no rating against water or dust ingress. For wet, damp, or outdoor runs you need NEMA 3R or NEMA 4 rated wireway and fittings instead.
3) What is a wireway end flange used for?
An end flange closes off and terminates the end of a wireway or lay-in trough run, and gives you a flanged connection to bolt the wireway to an enclosure, panel, or piece of equipment so conductors can pass through. The 44 HSF is the 4 x 4 inch version in steel.
4) Will this end flange match the gray finish on my existing B-Line wireway?
It is painted ANSI 61 gray, the standard gray used across Eaton B-Line steel wireway and most commercial electrical enclosures, so it blends with an existing ANSI 61 run. The body is steel, not aluminum or stainless.
5) How much room do I need behind the panel for this 4x4 wireway end flange?
Plan for 5.784 inches of depth for the 44 HSF flange, with a 4 by 4 inch opening. It is a light part at .407 lb, so a single installer can hold it in place while bolting up.
