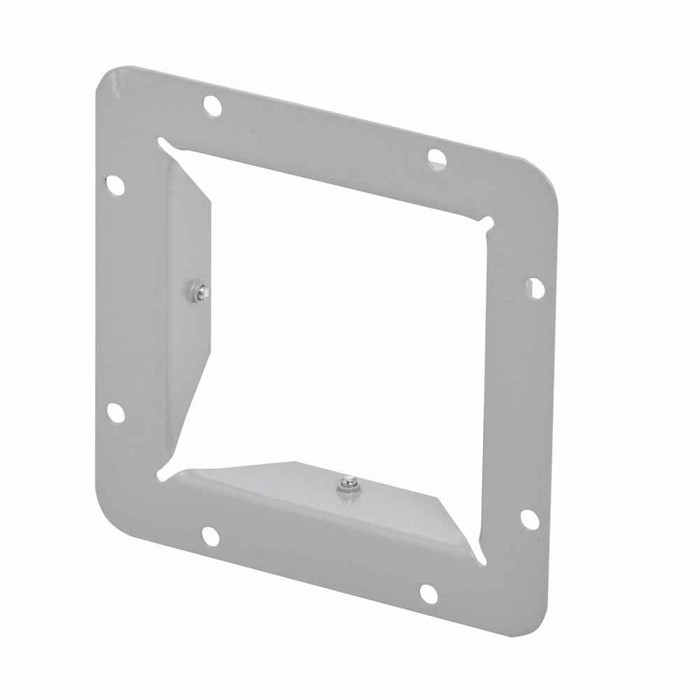

Eaton B-Line series wireway end flange, Wireway end flange, NEMA 1, Steel, ANSI 61 gray painted finish, 8" X 8"
Manufacturer Resources
Product Specs
- Certifications:
- UL Listed
- Degree Of Protection:
- 1
- Finish Color:
- ANSI 61 gray painted
- Product Height:
- 8 in
- Product Length Depth:
- 9.785 in
- Product Weight:
- .971 lb
- Product Width:
- 8 in
- Department:
- Electrical
- Product Type:
- Wireway end flange
- Product Details:
- Wireway end flange
- Product Material:
- Steel
B-LINE 88 HSF – Frequently Asked Questions
1) What size wireway does the B-Line 88 HSF end flange fit?
The Eaton B-Line 88 HSF end flange is sized for 8 x 8 inch wireway, matching the 8 inch height and 8 inch width of the trough opening. It will not adapt a 4 x 4, 6 x 6, or 12 x 12 run, so the flange has to match the trough size you are installing.
2) Is the 88 HSF flange rated for outdoor or wet locations?
No. The 88 HSF end flange carries a NEMA 1 degree of protection, which is indoor, general purpose only. For a rooftop, exterior, or washdown run you need NEMA 3R or NEMA 4 rated wireway and matching fittings instead.
3) What does a wireway end flange actually do on the job?
It closes and terminates the end of a wireway run, giving you a flanged connection where the trough meets an enclosure, panel, or cabinet rather than leaving an open end. The 88 HSF is the 8 x 8 inch version in steel.
4) Will the gray finish match the rest of my Eaton B-Line wireway run?
The 88 HSF is finished in ANSI 61 gray paint, the same standard gray used across Eaton B-Line steel wireway and most industrial electrical enclosures, so it blends with an existing B-Line trough run and with typical panelboard and switchgear finishes.
5) How much does the B-Line 88 HSF end flange weigh and how big is it overall?
Right around one pound, .971 lb, in 8 inch by 8 inch with a 9.785 inch length/depth dimension. Light enough to handle one-handed on a ladder while you land the trough.
6) Is this flange steel or aluminum?
Steel, painted ANSI 61 gray. If your run is aluminum or stainless wireway for a corrosive or food-processing environment, the 88 HSF is not the right material match.
