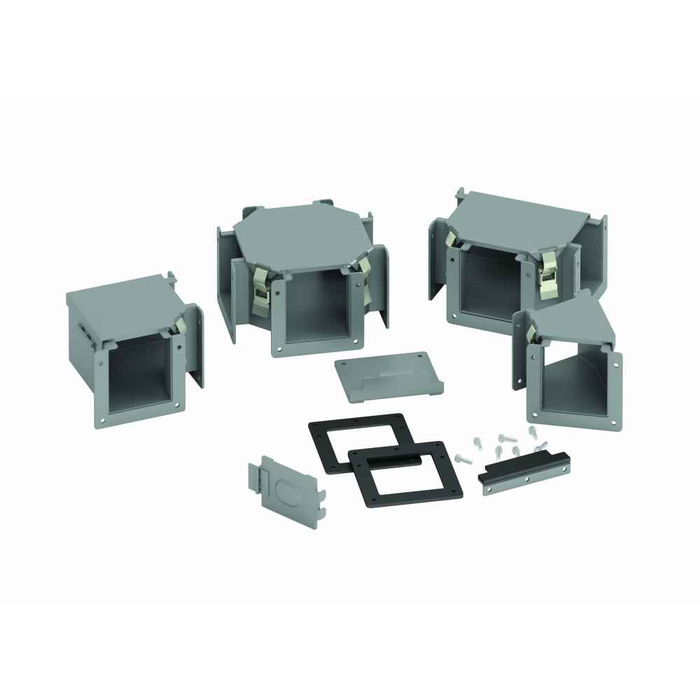

Eaton B-Line series wireway nipple section, 2.5" X 2.5" Lay-in, Wireway nipple section, NEMA 12, Steel, ANSI 61 gray painted
Manufacturer Resources
Product Specs
- Certifications:
- UL Listed
- Finish Color:
- ANSI 61 gray painted
- Product Height:
- 2.5 in
- Product Length Depth:
- .938 in
- Product Weight:
- 1.247 lb
- Product Width:
- 2.5 in
- Special Features:
- NEMA12
- Wiring Method:
- Lay in
- Department:
- Electrical
- Product Type:
- Wireway nipple section
- Product Details:
- Wireway nipple section
- Product Material:
- Steel
B-LINE 22-12LN1 – Frequently Asked Questions
1) How long is this B-Line nipple section, and what is it used for?
It is a short closure piece, .938 inch deep, used to join two wireway sections or tie a wireway directly to an adjacent enclosure or box with no run length between them. For an actual run of wireway you need straight lengths instead.
2) Is this B-Line nipple rated for washdown or oily, dusty areas?
It is a NEMA 12 rated part, so it suits indoor use where falling dirt, dust, and dripping non-corrosive liquids are the concern. NEMA 12 is not a hosedown or outdoor rating, so for wet exterior locations you want a NEMA 3R wireway system instead.
3) Is the 22-12LN1 wireway nipple UL Listed?
Yes, it carries a UL Listed marking, which is what most inspectors and institutional specs want to see on wireway components feeding a panel or control cabinet.
4) Will this nipple match the gray wireway already installed in our plant?
The finish is ANSI 61 gray paint over steel, the standard gray used across B-Line series wireway and most industrial enclosures, so it blends with existing ANSI 61 gray trough and panels.
5) Is a lay-in wireway nipple different from a feed-through nipple?
Lay-in is the key point here: the cover comes off so conductors drop in from the side rather than being pulled through. That is what makes short runs and tight cabinet-to-cabinet connections quick. A threaded conduit nipple, by contrast, requires pulling wire through it.
6) How much does the B-Line 22-12LN1 nipple weigh?
About 1.247 lb, light enough to hold in place single-handed while you start the connecting screws on a wall-mounted run.
