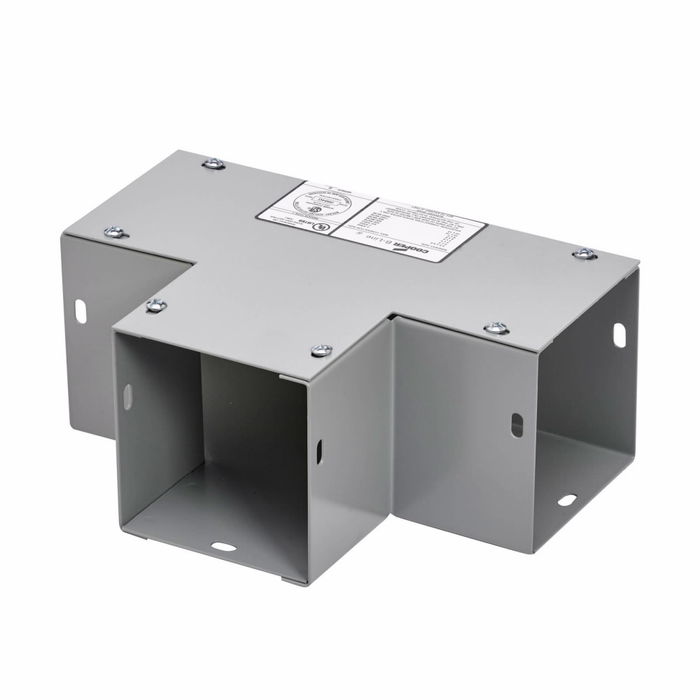

Eaton B-Line series wireway tee fitting, Lay-in, Wireway tee fitting, NEMA 1, Galvanized steel, 10" X 10"
Manufacturer Resources
Product Specs
- Certifications:
- UL Listed
- Degree Of Protection:
- 1
- Product Height:
- 10 in
- Product Length Depth:
- 18 in
- Product Weight:
- 13.674 lb
- Product Width:
- 10 in
- Wiring Method:
- Lay in
- Department:
- Electrical
- Product Group:
- Conduit & Fittings
- Product Subgroup:
- Tees / Crosses
- Product Type:
- Wireway tee fitting
- Product Details:
- Wireway tee fitting
- Product Material:
- Galvanized steel
B-LINE 1010 TGV – Frequently Asked Questions
1) Will the B-Line 1010 TGV tee fit my 10 x 10 wireway run?
Yes, the 1010 TGV is sized for 10 inch by 10 inch wireway. Height and width are both 10 inches, and the fitting runs 18 inches in length/depth, so allow that much space on the branch leg when you lay out the run.
2) Is this wireway tee NEMA 1 or is it rated for wet or outdoor locations?
NEMA 1 only. The 1010 TGV is a Type 1 general purpose enclosure, so keep it in dry indoor locations. For washdown, damp, or outdoor runs you need a NEMA 3R or 4 raintight/oiltight wireway fitting instead, not this one.
3) Does this tee let me lay conductors in, or do I have to pull them through?
It's a lay-in fitting. The cover comes off so conductors drop straight into the trough and the branch, which is the point of using wireway instead of conduit at a junction. No fishing or pulling through the tee.
4) Is the B-Line 1010 TGV UL Listed for an inspected commercial job?
Yes, the 1010 TGV wireway tee is UL Listed.
5) What material and finish is this wireway tee, and will it hold up in an unheated warehouse or parking structure?
Galvanized steel. The zinc coating handles the humidity swings and light condensation you get in unheated indoor spaces like warehouses and shops. It is still a NEMA 1 fitting though, so it should not take direct weather or spray.
6) How heavy is a 10 x 10 wireway tee, and will one person handle it overhead?
The 1010 TGV weighs 13.674 lb. That is a one-man lift on a ladder, but on an overhead run support the tee on both legs with hangers before letting go of it rather than relying on the wireway sections to carry it.
