B-Line Eaton series wiring tro...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$568.25

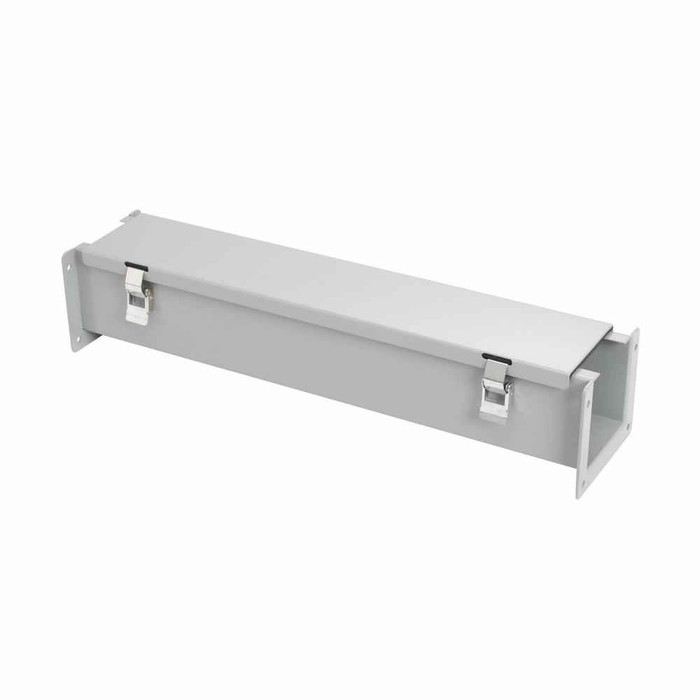

B-Line Eaton series wiring trough, 4" height, 4" length, 4" width, 12LW wireway, Wireway hanger, Hinged cover, 12, Steel, Oil-resistant gasket, Hinge

B-Line Eaton series wiring trough, 4" height, 4" length, 4" width, 12LW wireway, Wireway hanger, Hinged cover, 12, Steel, Oil-resistant gasket, Hinge

(No reviews yet) Write a Review

Model: 4404-12LW
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$568.25
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series wiring trough, 4" height, 4" length, 4" width, 12LW wireway, Wireway hanger, Hinged cover, NEMA 12, Steel, Oil-resistant gasket, Hinged, ANSI 61 gray, 14 gauge

Manufacturer Resources

Product Specs

Certifications:
CSA C22.2.
Closure Type:
Hinged
Finish Color:
ANSI 61 gray
Material Thickness:
14 gauge
Mounting Method:
Wireway hanger
Product Height:
4 in
Product Length Depth:
4 in
Product Weight:
2.751 lb
Product Width:
4 in
Special Features:
Cover is held by butt hinges&quick-release latches
Department:
Electrical
Product Type:
12LW wireway
Product Details:
12LW wireway

B-LINE 4404-12LW – Frequently Asked Questions

1) Is the Eaton B-Line 4404-12LW wireway rated for washdown or oily environments?
It's a NEMA 12 enclosure with an oil-resistant gasket under the cover, so it's built for dust, falling dirt, and dripping non-corrosive liquids like coolant or cutting oil in a shop or plant. NEMA 12 is not a washdown rating, so if hoses get pointed at the trough you want a NEMA 4 or 4X wireway instead.
2) What size is the 4404-12LW wiring trough body?
It's a 4 x 4 cross section, 4 inches high by 4 inches wide, with a 4 inch length. That's a short section or fitting-length piece rather than a full run, so plan on coupling it into longer lengths of 4x4 lay-in wireway if you're feeding a panel across a wall. Shipping weight is 2.751 lb.
3) Can I use this hinged wireway outdoors or in a damp corrosive area?
No. A NEMA 12 trough is an indoor, non-corrosive-location product; rain, sleet, and hose-down aren't covered by that rating, and painted steel won't hold up to a corrosive wash. For outdoor runs step up to a NEMA 3R wireway, and for chemical exposure go stainless NEMA 4X.
4) Do I need tools to open the cover on this B-Line wireway?
No. The cover on the 4404-12LW is held by butt hinges and quick-release latches, so it swings open by hand and stays attached to the body. That matters when you're pulling conductors overhead and don't want a loose cover and a bag of screws on the lift with you.
5) How does this 4x4 wireway mount, and is the hanger included?
The stated mounting method for the 4404-12LW is a wireway hanger, which is the trapeze/rod-style support used to hang a run off structure rather than bolting it flat to a wall. The hanger itself is a separate B-Line accessory, so budget the hangers, rod, and any couplings alongside the trough section.
6) Is the Eaton B-Line 4404-12LW listed for use in Canada?
The trough carries CSA C22.2 certification, so it's acceptable for Canadian installations under the CEC as well as US work. If your spec calls out a specific UL file number, ask for the manufacturer's certification sheet before submitting.
7) What gauge steel is the 12LW wireway and what's the finish?
14 gauge steel, painted ANSI 61 gray. That's the standard light-gray finish used on most industrial control panels and enclosures, so a run of this trough matches existing gear on a plant wall without repainting.
