B-Line Eaton series wiring tro...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$493.61

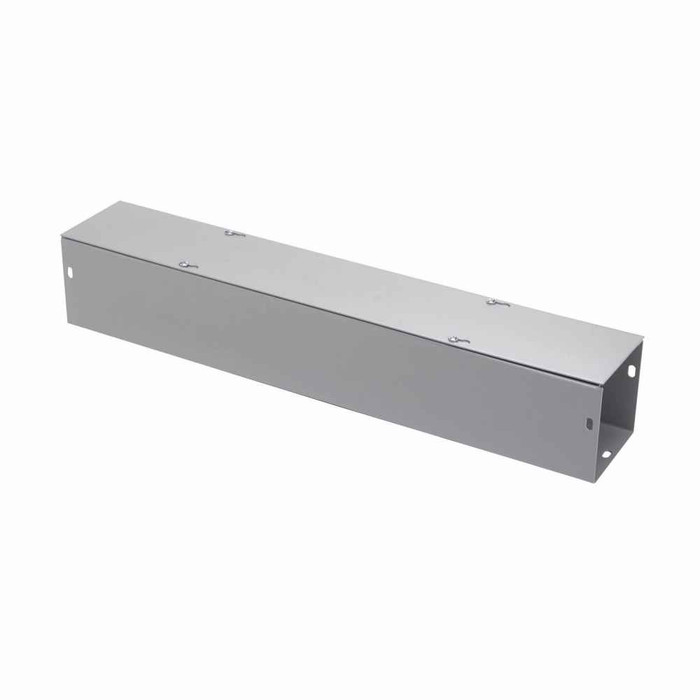

B-Line Eaton series wiring trough, 6" height, 48" length, 6" width, GGV NK wireway, Thru holes, No knockouts, Screw cover, 1, Galvanized steel, Plate

B-Line Eaton series wiring trough, 6" height, 48" length, 6" width, GGV NK wireway, Thru holes, No knockouts, Screw cover, 1, Galvanized steel, Plate

(No reviews yet) Write a Review

Model: 6648 GGV NK
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$493.61
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series wiring trough, 6" height, 48" length, 6" width, GGV NK wireway, Thru holes, No knockouts, Screw cover, NEMA 1, Galvanized steel, Plated screws, Gray, 16 gauge

Manufacturer Resources

Product Specs

Certifications:
CSA Certified
Closure Type:
Plated screws
Finish Color:
Gray
Material Thickness:
16 gauge
Mounting Method:
Thru holes
Product Height:
6 in
Product Length Depth:
48 in
Product Weight:
19.303 lb
Product Width:
6 in
Special Features:
Cover is secured with plated screws
Department:
Electrical
Product Type:
GGV NK wireway
Product Details:
GGV NK wireway

B-LINE 6648 GGV NK – Frequently Asked Questions

1) Is the Eaton B-Line 6648 GGV NK wireway rated for outdoor or wet locations?
No. The 6648 GGV NK trough is a NEMA 1 enclosure, which is indoor general-purpose only. It offers no protection against rain, splashing water, or washdown, so keep it inside dry mechanical rooms, electrical rooms, and similar protected areas. For an exposed exterior run you need a NEMA 3R raintight wireway instead.
2) Does this B-Line wireway come with knockouts for conduit, or do I have to punch my own?
The NK in 6648 GGV NK means no knockouts. The body ships solid, so you punch or hole-saw your own conduit entries exactly where the run needs them. That's the usual choice for engineered layouts; if you want factory openings on standard spacing, order a knockout version of the same size instead.
3) How is the cover held on, and can I get back into the trough after it's installed?
It's a screw cover, secured with plated screws along the length. You back the screws out to open the full face for pulling or re-pulling conductors, then reseat them. Screw covers are the standard for runs that aren't opened often; if you expect frequent access, a hinged cover wireway is easier to live with.
4) What gauge steel and finish is this wiring trough, and will it hold up in a damp indoor room?
Body is 16 gauge galvanized steel finished gray, with plated screws on the cover. The galvanized base plus plating on the fasteners handles normal indoor humidity in a mechanical or utility room, but the NEMA 1 rating still means no direct water exposure.
5) Is the B-Line 6648 GGV NK trough third-party certified for a job that requires it?
It is CSA Certified, which covers submittals on Canadian projects and inspections that call for third-party certification on the enclosure.
6) Do I need fittings or connectors to join two of these wireway sections together?
Yes. The 6648 GGV NK ships as a 48 inch body and cover with mounting thru holes; couplings, end plates, elbows, and tees for a 6 x 6 run are separate items. Plan those into the takeoff along with your own punched conduit entries, since this version comes with no knockouts.
