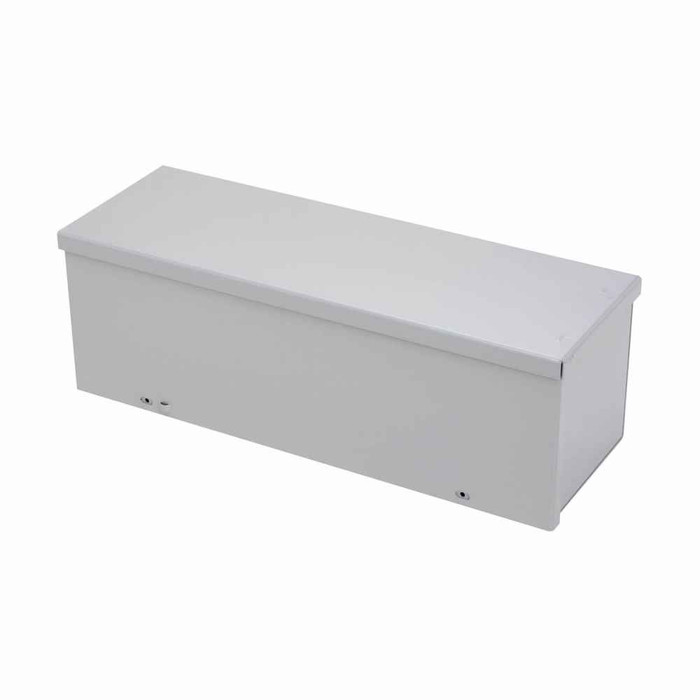

B-Line Eaton series wiring trough, 8" height, 36" length, 8" width, GRTGV NK wiring trough, Embossed thru holes, No knockouts, Screw cover, 3R, Galva

B-Line Eaton series wiring trough, 8" height, 36" length, 8" width, GRTGV NK wiring trough, Embossed thru holes, No knockouts, Screw cover, 3R, Galva

(No reviews yet) Write a Review

Model: 8836 GRTGV NK
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,015.34
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series wiring trough, 8" height, 36" length, 8" width, GRTGV NK wiring trough, Embossed thru holes, No knockouts, Screw cover, NEMA 3R, Galvanized steel, Plated screws, Gray, 16 gauge

Manufacturer Resources

Product Specs

Certifications:
CSA C22.2.
Closure Type:
Plated screws
Finish Color:
Gray
Material Thickness:
16 gauge
Mounting Method:
Embossed thru holes
Product Height:
8 in
Product Length Depth:
36 in
Product Weight:
22.489 lb
Product Width:
8 in
Special Features:
Cover is held secure by flange and plated screws
Department:
Electrical
Product Type:
GRTGV NK wiring trough
Product Details:
GRTGV NK wiring trough

B-LINE 8836 GRTGV NK – Frequently Asked Questions

1) Can the B-Line 8836 GRTGV NK wiring trough be used outdoors?
The 8836 GRTGV NK trough is a NEMA 3R enclosure in galvanized steel, so it's built for outdoor use where falling rain, sleet and ice are the concern. 3R is not a washdown or dust-tight rating, so keep it out of hosedown areas and away from direct pressurized spray.
2) Does the 8836 GRTGV NK trough come with knockouts, or do I have to punch my own holes?
No knockouts. The 8836 GRTGV NK ships blank, so every conduit entry gets field-punched or drilled where you want it. That's the trade-off buyers make for full layout freedom, and it means budgeting a knockout punch set for the install.
3) What are the actual dimensions of the B-Line 8836 wiring trough?
8 inches high, 8 inches wide and 36 inches long. The 8 x 8 cross section is what governs your fill calculation and how many conductors you can run through it; the 36 inch length is the run you get per section before you couple to the next one.
4) How is the cover attached on this B-Line screw cover trough, and can I get back into it later?
It's a screw cover design. The cover is held secure by a flange and plated screws, so you back the screws out to open it. That's the right choice for a junction or pull point you don't open often. If you're servicing a panel weekly, a hinged cover trough is less work.
5) What gauge steel is the B-Line 8836 trough, and is it strong enough for a commercial install?
16 gauge galvanized steel with a gray finish. That's the standard body weight for a commercial wireway of this size and it holds its shape when you're pulling conductors through a long run.
6) Is the B-Line 8836 GRTGV NK trough approved for use in Canada?
It carries CSA C22.2 certification, which is what an inspector on a Canadian job will be looking for on a wireway.
