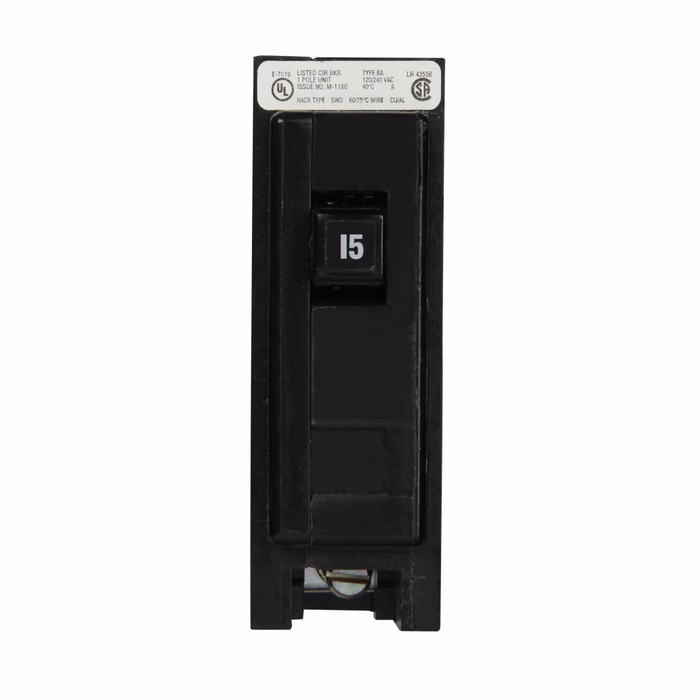

Eaton BAB Series Quicklag Thermal-Magnetic Circuit Breaker

Eaton BAB Series Quicklag Thermal-Magnetic Circuit Breaker

The Eaton BAB Series Quicklag Thermal-Magnetic Circuit Breaker delivers dependable overcurrent protection for commercial and industrial electrical distribution systems. Built on Eaton's compact BAB platform with a Non-Interchangeable Q7 frame, this family spans pole and amperage configurations from 1-Pole 15A up to 3-Pole 100A, including 1-Pole 30A, 2-Pole 30A/70A/100A, and 3-Pole 70A/80A/100A options. Each breaker combines a thermal element for overload protection with a magnetic trip for fast short-circuit response, carries a 10 kAIC interrupt rating at 120/240V, and is purpose-suited for HID lighting circuits and standard branch circuit protection. The BAB/Q7 platform installs into compatible Eaton panelboards and load centers that accept the BAB/Q7 frame footprint.

Key Features

• Poles & Amperage Range: Spans 1-Pole 15A up to 3-Pole 100A, including 1-Pole 30A, 2-Pole 30A/70A/100A, and 3-Pole 70A/80A/100A configurations.
• Interrupt Rating: 10 kAIC short-circuit interrupt capacity for safely clearing fault current across the BAB Series lineup.
• Voltage Rating: Engineered for 120/240V electrical distribution systems.
• Thermal-Magnetic Trip Mechanism: Combines a thermal element for overload protection with a magnetic trip for rapid short-circuit response, standard on Eaton's Quicklag line.
• BAB Series, Q7 Frame: Non-Interchangeable Q7 frame keeps the trip unit factory-set for consistent, tamper-resistant performance.
• HID Lighting Compatibility: Purpose-suited for high intensity discharge lighting circuits requiring reliable overcurrent protection.

Technical Specifications

• Available Configurations: 1-Pole 15A, 1-Pole 30A, 2-Pole 30A, 2-Pole 70A, 2-Pole 100A, 3-Pole 70A, 3-Pole 80A, 3-Pole 100A
• Interrupt Rating: 10 kiloamps (10 kAIC)
• Voltage Rating: 120/240V
• Frame: Non-Interchangeable Q7

Typical Applications

• Industrial and Commercial Panelboards
• High Intensity Discharge (HID) Lighting Circuit Protection
• Branch Circuit Overcurrent Protection
• Load Center and Distribution Panel Upgrades
• Facilities Standardized on Eaton BAB/Q7 Frame Equipment

Why Eaton?

Eaton's Quicklag BAB Series circuit breakers deliver precise thermal-magnetic overcurrent protection for industrial and commercial electrical systems where reliability is non-negotiable. Spanning 1-Pole 15A through 3-Pole 100A at 120/240V with a 10 kAIC interrupt rating, the Non-Interchangeable Q7 frame reflects Eaton's approach to consistent, code-conscious panel protection in demanding environments such as HID lighting circuits. Choosing a BAB Series breaker keeps panelboard protection aligned with Eaton's established BAB/Q7 platform.
