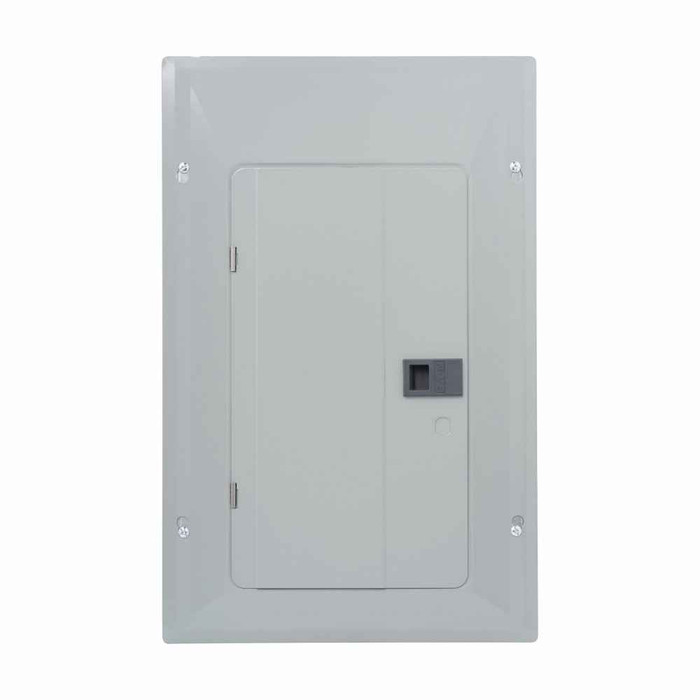

Eaton BR Series Main Lug Only Loadcenter 125A 24-Space Single-Phase Electrical Panel

Eaton BR Series Main Lug Only Loadcenter 125A 24-Space Single-Phase Electrical Panel

Professional electrical distribution for residential and commercial applications

The Eaton BR Series Main Lug Only Loadcenter delivers reliable 125A electrical distribution in a compact 24-space configuration. This single-phase loadcenter features aluminum bus construction with NEMA 1 metallic enclosure and 10 kAIC interrupt rating for dependable power distribution. Compatible with Type BR 1-inch breakers and designed for surface or flush mounting applications.

Professional Features & Benefits

• 125A Service Rating: Provides ample capacity for residential and light commercial electrical distribution needs
• 24-Space Configuration: Accommodates up to 48 circuits with single-pole Type BR breakers for flexible circuit management
• 10 kAIC Interrupt Rating: Delivers reliable fault protection and electrical safety performance
• NEMA 1 Metallic Enclosure: Ensures durable protection for indoor installations with professional appearance
• Aluminum Bus Construction: Provides efficient electrical conductivity with corrosion resistance
• UL 67 Listed: Meets rigorous safety standards for electrical distribution equipment
• Dual Mounting Options: Surface or flush mounting capability for versatile installation requirements

Technical Specifications

• Amperage Rating: 125 A
• Box Size: X3
• Bus Material: Aluminum
• Certifications: UL 67
• Cover Type: Cover included
• Enclosure: NEMA 1
• Enclosure Material: Metallic
• Interrupt Rating: 10 kAIC
• Mounting Method: Surface, flush
• Nema Rating: NEMA 1
• Number Of Circuits: 48
• Number Of Poles: Single-pole
• Number Of Spaces: 24
• Phase: Single-phase
• Product Details: MLO
• Product Height: 3.88 in
• Product Length Depth: 23 in
• Product Weight: 20 lb
• Product Width: 14.31 in
• Used With: Type BR 1-inch breakers
• Voltage Rating: 120/240V
• Wire Size: #6-1/0 AWG Cu/Al

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Residential electrical service upgrades and new construction
• Small commercial facilities and office buildings
• Multi-unit residential properties and condominiums
• Retail establishments and professional offices
• Light industrial and workshop applications
• Electrical contractor and maintenance professional installations

Why Choose Eaton Quality?

Eaton BR Series loadcenters provide proven reliability with UL 67 certification and robust metallic NEMA 1 construction. The aluminum bus design ensures efficient power distribution while the 10 kAIC interrupt rating delivers dependable fault protection for professional electrical installations.
