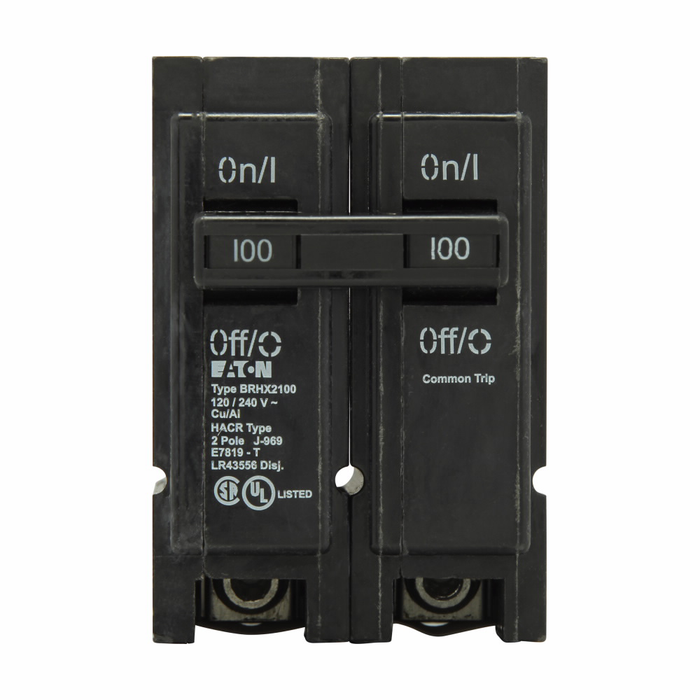

Eaton BR Quicklag BRHX Two-Pole Thermal Magnetic Circuit Breaker, 100A, 22kAIC

Eaton BR Quicklag BRHX Two-Pole Thermal Magnetic Circuit Breaker, 100A, 22kAIC

(No reviews yet) Write a Review

Model: BRHX2100

In Stock (leaves warehouse same day if ordered before 3pm ET)

$103.29
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton BR Quicklag BRHX Two-Pole Thermal Magnetic Circuit Breaker, 100A, 22kAIC

The Eaton BR Quicklag Type BRHX thermal magnetic circuit breaker is a two-pole, 100A device rated 120/240V with a 22kAIC interrupt rating, engineered for reliable overcurrent protection in residential and light commercial panelboards. Featuring a plug-on connection for fast installation and a non-interchangeable trip design, this BR-type breaker delivers dependable circuit protection where code-compliant performance is essential. Built to Eaton's BR circuit breaker platform standards, the BRHX is suited for use in compatible BR-series load centers.

Key Features

  • Amperage Rating: 100A thermal magnetic trip for reliable overcurrent protection.
  • Poles: Two-pole configuration for 120/240V circuits.
  • Voltage Rating: 120/240V for standard residential and light commercial distribution.
  • Interrupt Rating: 22kAIC for robust fault-current handling.
  • Connection Type: Plug-on mounting for quick, secure installation in compatible BR load centers.
  • Trip Type: Non-interchangeable trip unit for consistent, tamper-resistant protection.
  • Circuit Breaker Type: BR-series, Quicklag Type BRHX design.
  • Product Height: 3 in.

Technical Specifications

  • Warranty: 1 year
  • Main circuit breaker: BR
  • Circuit breaker type: BR

Typical Applications

  • Residential Load Center Circuit Protection
  • Light Commercial Panelboard Wiring
  • Branch Circuit Overcurrent Protection
  • BR-Series Load Center Upgrades and Replacements
  • New Construction and Electrical Renovation Projects

Why Eaton?

Eaton's BR Quicklag BRHX circuit breaker combines a 22kAIC interrupt rating with a non-interchangeable trip design for consistent, code-compliant overcurrent protection. The plug-on connection and BR-platform compatibility make it a practical choice for electricians standardizing on Eaton load centers. Backed by a 1-year warranty, this breaker is built for dependable performance in demanding electrical distribution applications.

Manufacturer Resources

Product Specs

Connection:
Plug-on
Voltage Rating:
120/240V
Product Height:
3 in
Product Type:
Circuit Breaker
Warranty:
1 year
Mounting Method:
Plug-on
Number Of Poles:
Two-pole
Main Circuit Breaker:
BR
Interrupt Rating:
22 kAIC
Circuit Breaker Type:
BR
Trip Type:
Non-interchangeable
Certifications:
Contact Manufacturer
Department:
Electrical
Amperage Rating:
100A
Connection Type:
Plug-on
Configuration:
Two-Pole
Series:
BR
Product Group:
Circuit Protection
Product Subgroup:
Circuit Breakers

Eaton BRHX2100 – Frequently Asked Questions

1) Will the Eaton BRHX2100 breaker fit in a Square D QO or Homeline panel?
No. The BRHX is an Eaton BR-type breaker with a plug-on connection, and it mounts in compatible BR-series load centers only. BR and Square D QO/Homeline bus stabs are different systems, so don't try to cross them. If your panel is a BR load center, the BRHX2100 plugs straight onto the bus.
2) What's the difference between a standard BR breaker and the BRHX?
Interrupt rating. The BRHX Quicklag two-pole is rated 22 kAIC at 120/240V, which is the high-interrupt version of the BR platform. Standard BR breakers carry a lower AIC. If your available fault current at the panel exceeds what a standard BR can clear, the BRHX is the one to specify; mechanically it still plugs on the same way.
3) I'm upgrading an older BR panel that has high available fault current. Is this the right breaker?
For a BR-series load center where the utility fault current is the issue, the BRHX is the high-interrupt answer at 22 kAIC, 120/240V, and it plugs onto the existing BR bus with no adapter. It is built for residential and light commercial panelboards, including BR load center upgrades and replacements. Confirm the available fault current at the service before you settle on the AIC rating.
4) Can I order the Eaton BRHX two-pole in something other than 100 amps?
Two amperage choices are offered on the BRHX two-pole: 100 amperes as BRHX2100 and 125 amperes as BRHX2125. Both share the same 22 kAIC interrupt rating, 120/240V rating, and plug-on mounting, so the only thing you're deciding is the trip size.
5) Can the trip rating on the Eaton BRHX be changed after installation?
No. The BRHX uses a non-interchangeable trip unit, so the amperage is fixed at the factory and can't be swapped or field-adjusted. If you need a different trip size, you order a different breaker, which is why the two-pole comes as a 100A and a 125A part rather than one adjustable device.
6) Is the Eaton BRHX two-pole suitable for a 240V circuit like a range, feeder, or subpanel?
Yes. It's a two-pole device rated 120/240V, so it lands across both bus legs and feeds a 240V load or a subpanel feeder. At 100A or 125A it's sized for feeder and large appliance duty rather than a general lighting branch circuit.
7) How much space does the Eaton BRHX two-pole take up in a BR load center?
The breaker stands 3 inches in height and is a two-pole unit, so it occupies two adjacent spaces on the BR bus. Count two poles' worth of room, plus clearance for the feeder conductors landing on the lugs, when you lay out the panel.
