Eaton Brown Straight Blade Plu...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$1.82

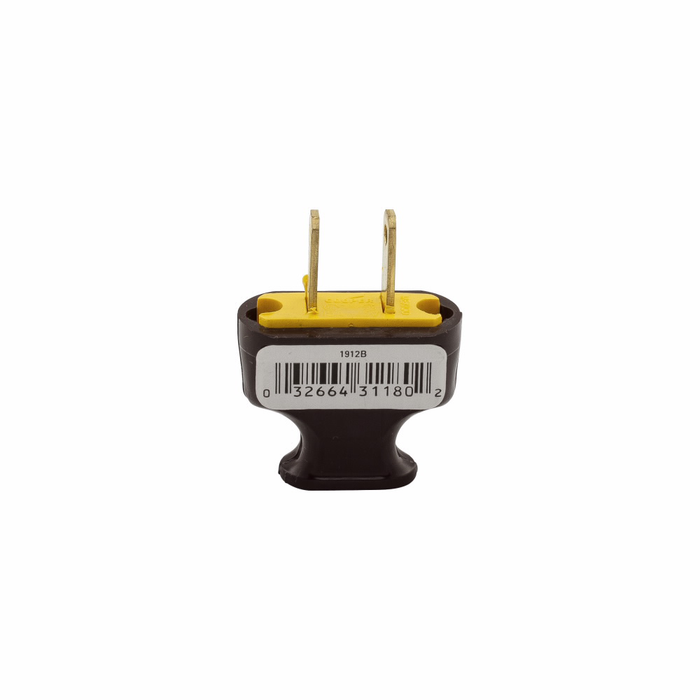

Eaton Brown Straight Blade Plug, 15A 125V, 2-Pole 2-Wire NEMA 1-15P

Eaton Brown Straight Blade Plug, 15A 125V, 2-Pole 2-Wire NEMA 1-15P

(No reviews yet) Write a Review

Model: BROWN

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1.82
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton Brown Straight Blade Plug, 15A 125V NEMA 1-15P

The Eaton Brown Straight Blade Plug is a residential-grade, two-pole, two-wire, non-grounding plug rated 15A at 125V and configured to the standard NEMA 1-15P pattern. Molded from durable thermoplastic and fitted with brass contacts, this plug accepts #18-16 AWG conductors and terminates via back-wire or screw connections, giving installers flexibility during termination. The brown housing provides a clean, residential-friendly appearance that blends easily with cord sets, extension cords, lamps, and small appliances that call for a standard 15A, 125V non-grounding plug. The combination of back-wire and screw terminals makes this plug well suited for both new cord assembly and field replacement work, giving electricians and DIY installers a dependable option for standard 125-volt circuits. Whether used for new cord assembly or as a replacement plug on existing equipment, this Eaton device is built to handle everyday residential wiring tasks reliably.

Key Features

  • Electrical Rating: Rated 15A at 125V for general-purpose residential branch-circuit and cord-connected applications.
  • NEMA 1-15P Configuration: Two-pole, two-wire, non-grounding blade pattern compatible with standard residential receptacles.
  • Wire Range: Accepts #18-16 AWG conductors, matching the gauge range used in most residential cord sets.
  • Flexible Termination: Back-wire and screw terminal options let installers choose the connection method that best fits the job.
  • Durable Construction: Thermoplastic housing paired with brass contacts supports reliable conductivity and long-term durability.
  • Contact Material: Brass contacts help maintain reliable electrical conductivity at the blade interface.
  • Thermoplastic Rubber Detailing: Adds strain relief at the cord entry for added comfort and grip during handling.
  • Two-Pole, Two-Wire Design: Non-grounding configuration suited to legacy cord sets and fixtures that do not require a ground conductor.
  • Residential Grade: Designed to meet the performance needs of everyday household electrical projects.
  • Finish: Brown housing color for a clean, residential-appropriate look.

Technical Specifications

  • Refer to manufacturer documentation for complete technical specifications.

Typical Applications

  • Residential Cord Sets and Extension Cords
  • Household Appliance and Lamp Power Cords
  • General-Purpose 125V Branch Circuit Wiring
  • Replacement Plug for Non-Grounding Applications
  • Retrofit and Replacement Plug Projects
  • Light-Duty Residential Wiring and DIY Repairs

Why Eaton?

Eaton's Brown Straight Blade Plug pairs a rugged thermoplastic housing with brass contacts to deliver dependable performance for residential wiring tasks. Flexible back-wire and screw terminal options support #18-16 AWG conductors, helping installers complete secure terminations quickly. With its 15A, 125V rating and NEMA 1-15P configuration, this plug is built to handle the everyday demands of residential cord sets, appliances, and replacement wiring projects. Backed by Eaton's engineering standards for wiring devices, this plug is designed to provide consistent contact and secure termination over repeated use, making it a practical choice for residential electrical inventories.

Manufacturer Resources

Product Specs

list_batch:
EAT-20260922
Product Type:
Straight Blade Plug
Voltage Rating:
125V
Amperage Rating:
15A
Configuration:
2-Pole, 2-Wire, Non-Grounding
Connection Type:
Back Wire/Screw
Department:
Electrical
Product Subgroup:
Plugs & Connectors
Product Material:
Thermoplastic
Product Color:
Brown
Product Group:
Wiring Devices

Eaton BROWN – Frequently Asked Questions

1) Will a NEMA 1-15P plug work if my cord has a ground wire?
No. The Eaton brown straight blade plug is a 2-pole, 2-wire non-grounding device, so there is no terminal for an equipment ground conductor. If the cord or equipment has a green ground wire, you need a 3-wire grounding plug in the NEMA 5-15P pattern instead. Use this one only on two-conductor cord sets, lamps, and legacy fixtures that never had a ground.
2) What wire gauge does the Eaton brown 15A plug accept?
It terminates #18-16 AWG conductors, which covers the lamp cord and light-duty extension cord sizes used on most residential cord sets. Heavier 14 AWG cord will not land properly in these terminals, so for a 14 AWG assembly choose a plug rated for that range.
3) Can I use this plug on a 20-amp circuit or a 240V appliance?
The plug is rated 15A at 125V only. It can be plugged into a 20A, 125V residential receptacle because the blade pattern is the standard NEMA 1-15P, but the cord assembly itself can only carry up to 15A. It is not suitable for anything at 240V, and it is not a 20A plug.
4) Does this plug use screw terminals or push-in back wire?
Both. The termination is back wire/screw, so you can land the conductor under the terminal screw or back-wire it, whichever is quicker on the bench or in the field. That makes it workable for building new cord sets and for cutting off and replacing a damaged plug on existing equipment.
5) Is this plug rated for commercial or industrial use?
It is a residential-grade device, built for household cord sets, lamps, small appliances, and DIY repair work. For high-cycle commercial or industrial cord caps, specify a commercial or industrial grade plug rather than this one.
6) Can I use this as a replacement plug on an old two-prong lamp or appliance cord?
That is one of its main uses. Because it is non-grounding and takes #18-16 AWG, it drops straight onto the two-conductor cord found on lamps, radios, and older small appliances. Cut back the damaged end, strip the two conductors, and terminate either back-wire or under the screws.
7) What is the Eaton brown plug made of, and will it stand up to being unplugged repeatedly?
The housing is molded thermoplastic with brass contacts at the blade interface, and there is thermoplastic rubber detailing at the cord entry that acts as strain relief where the cord flexes most. That is the part that usually fails first on a cheap plug.
8) I need to match the cord color on brown lamp cord. Does Eaton make this plug in brown?
Brown is the color of this one, which blends with brown lamp and appliance cord rather than standing out the way a white or black cap would. Model designation is simply BROWN.
