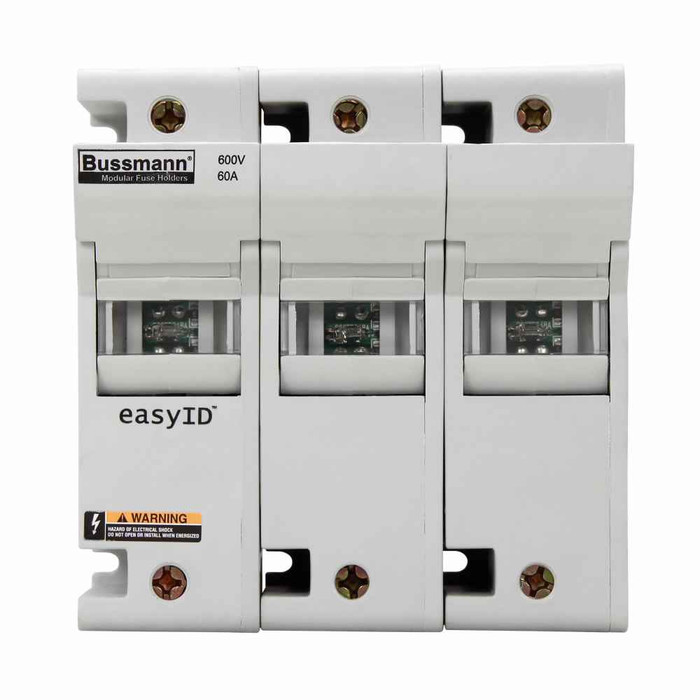

Bussmann CH60J3I Eaton series CH modular fuse holder, 600 Vac, 600 Vdc, 60A, Three-pole, Neon lamp

Bussmann CH Series Class J Modular Fuse Holder 60A 600V Three-Pole with Neon Indicator

(No reviews yet) Write a Review

Model: CH60J3I
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$440.34
$390.34
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Bussmann CH Series Class J Modular Fuse Holder 60A 600V Three-Pole with Neon Indicator

Professional three-pole fuse protection with visual indication

The Bussmann CH Series Class J Modular Fuse Holder delivers reliable 60A circuit protection at 600 Vac/600 Vdc with professional three-pole configuration and integrated neon lamp indication. Built with thermoplastic housing and tin plated copper clips, this modular fuse holder provides versatile mounting options for DIN rail or panel installation in demanding electrical applications.

Professional Features & Benefits

  • 60A Current Rating: Handles substantial electrical loads with reliable overcurrent protection for commercial and industrial applications.
  • 600 Vac/600 Vdc Voltage Rating: Supports both AC and DC systems up to 600V for versatile power distribution requirements.
  • Class J Fuse Compatibility: Accepts standard Class J fuses for current-limiting protection and enhanced safety performance.
  • Three-Pole Configuration: Provides comprehensive protection across all three phases for balanced electrical systems.
  • Neon Lamp Indicator: Visual status indication enables quick fault identification and system monitoring.
  • Dual Mounting Options: 35mm DIN rail or panel mounting flexibility accommodates various installation requirements.
  • 85�C Operating Temperature: Maintains reliable performance in elevated temperature environments typical of electrical enclosures.

Technical Specifications

  • Amperage Rating: 60A
  • Class: Class J
  • Compliances: RoHS Compliant
  • Material Type: Thermoplastic Housing, Tin Plated Copper Clip
  • Mounting Method: 35 mm DIN rail, panel
  • Number Of Poles: Three-pole
  • Operating Temperature: 85�C
  • Product Height: 4.88 IN
  • Product Length Depth: 4.72 IN
  • Product Type: Modular fuse holder
  • Product Weight: 1.7 LB
  • Product Width: 3.31 IN
  • Voltage Rating: 600 Vac, 600 Vdc

Installation & Operation

  1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
  2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
  3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
  4. Configure any available load management or control features as supported by the provided specifications.
  5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
  6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

  • Industrial Control Panels and Motor Control Centers
  • Commercial Electrical Distribution Systems
  • Manufacturing Equipment Protection
  • Process Control and Automation Systems
  • Power Distribution Panels
  • Electrical Maintenance and Service Applications
  • Three-Phase Motor Protection Circuits

Why Choose Bussmann Quality?

Bussmann delivers proven electrical protection solutions with RoHS compliant construction and robust thermoplastic housing designed for long-term reliability. The tin plated copper clips ensure excellent conductivity and corrosion resistance, while the 85�C operating temperature rating provides dependable performance in demanding electrical environments.

Manufacturer Resources

Product Specs

Amperage Rating:
60A
Class:
Class J
Compliances:
RoHS Compliant
Material Type:
Thermoplastic Housing, Tin Plated Copper Clip
Mounting Method:
35 mm DIN rail, panel
Number Of Poles:
Three-pole
Operating Temperature:
85°C
Product Height:
4.88 IN
Product Length Depth:
4.72 IN
Product Type:
Modular fuse holder
Product Weight:
1.7 LB
Product Width:
3.31 IN
Voltage Rating:
600 Vac, 600 Vdc
