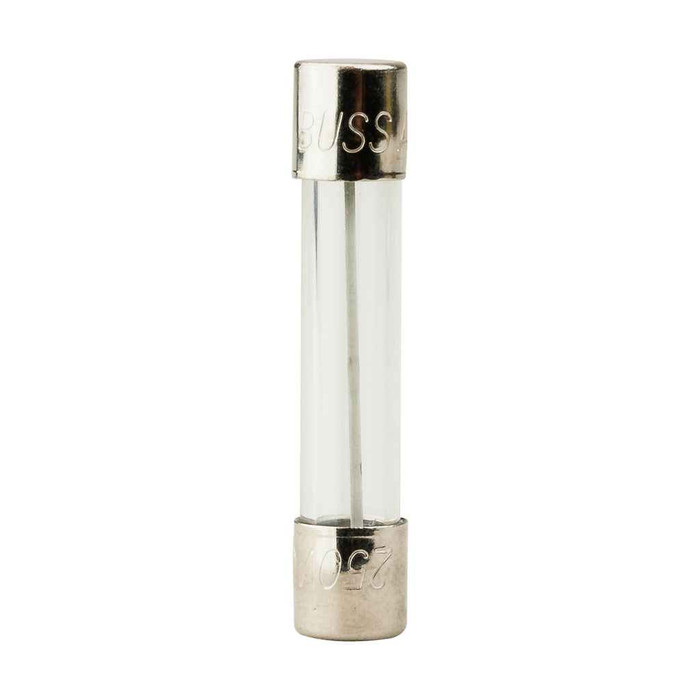

Bussmann AGC-1-R Fast-Acting Electronic Circuit Fuse 1A 250VAC

Bussmann AGC-1-R Fast-Acting Electronic Circuit Fuse 1A 250VAC

Professional Fast-Acting Circuit Protection for Electronic Applications

The Bussmann AGC-1-R delivers reliable fast-acting circuit protection specifically designed for electronic circuits. This 1A fuse features 250VAC/32VDC voltage rating with ferrule end connections, providing precise overcurrent protection in a compact 1.25" x 0.25" form factor. Built to Eaton Bussmann series quality standards, this fuse ensures dependable performance for sensitive electronic applications requiring fast response times.

Professional Features & Benefits

• 1A Amperage Rating: Provides precise overcurrent protection for sensitive electronic circuits without nuisance tripping
• Fast-Acting Response: Quick interruption capability protects valuable electronic components from damage during fault conditions
• 250VAC/32VDC Voltage Rating: Versatile voltage compatibility for both AC and DC electronic circuit applications
• Ferrule End Connections: Secure, reliable connection method ensures consistent electrical contact and easy installation
• Compact Design: 1.25" length and 0.25" diameter fits standard electronic circuit fuse holders and tight spaces
• Electronic Circuit Application: Specifically engineered for the protection requirements of electronic equipment and circuits

Technical Specifications

• Amperage Rating: 1A
• Application: Electronic circuits
• Connection: Ferrule end X ferrule end
• Fuse Indicator: Non Indicating
• Packaging Type: Standard
• Product Height: .25 IN
• Product Length: 1.25 IN
• Product Weight: .004 LB
• Product Width: .25 IN
• Response Time: 60 min maximum at 135%, 120 s maximum at 200%
• Used With: out axial leads
• Voltage Rating: 250 Vac, 32 Vdc (self certified)

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Electronic Equipment Protection
• Control Panel Circuits
• Instrumentation Systems
• Communication Equipment
• Computer and Data Systems
• Laboratory Equipment
• Test and Measurement Devices

Why Choose Bussmann Quality?

Bussmann fast-acting fuses deliver proven reliability and precision protection for critical electronic applications. With self-certified voltage ratings and consistent response characteristics, these fuses provide the dependable overcurrent protection that electronic circuits require for optimal performance and longevity.
