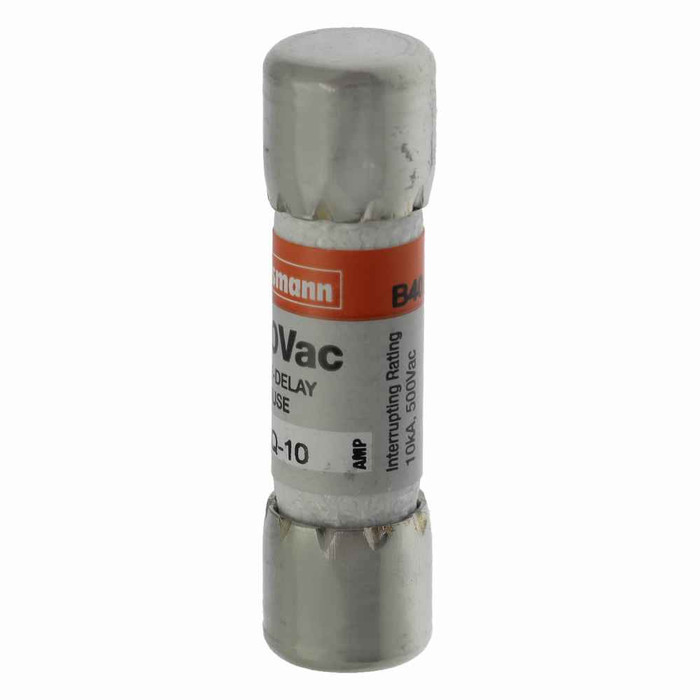

Bussmann FNQ Series Time-Delay Midget Fuse 10A 500V Motor Control Protection

Professional Time-Delay Protection for Motor Control & High Inrush Current Applications

The Bussmann FNQ series time-delay midget fuse delivers reliable overcurrent protection specifically designed for motor control transformers and circuits with high in-rush currents. This 10A, 500V fuse features nickel-plated bronze endcaps with ferrule end connections and provides 10 kAIC interrupt rating at 500 Vac for dependable circuit protection in demanding electrical applications.

Professional Features & Benefits

  • 10A Current Rating: Provides precise overcurrent protection for motor control circuits and transformers with optimal amperage capacity.
  • Time-Delay Design: Allows temporary overcurrent conditions during motor startup while protecting against sustained overloads and short circuits.
  • 500V Voltage Rating: Suitable for higher voltage applications in commercial and industrial motor control systems.
  • 10 kAIC Interrupt Rating: Delivers reliable fault current interruption capability at 500 Vac for enhanced circuit protection.
  • Ferrule End Connections: Ensures secure, reliable electrical connections in fuse holders and terminal blocks.
  • Nickel-Plated Bronze Endcaps: Provides corrosion resistance and reliable conductivity for long-term performance.
  • CE Marked Compliance: Meets European conformity standards for quality assurance and regulatory compliance.

Technical Specifications

  • Amperage Rating: 10:00 AM
  • Compliances: CE Marked
  • Connection: Ferrule end x ferrule end
  • Department: Electrical
  • Fuse Indicator: Non-indicating
  • Interrupt Rating: 10 kAIC at 500 Vac
  • Material: Nickel-plated bronze endcap
  • Packaging Type: Standard
  • Product Height: 1.5 in
  • Product Length Depth: .41 in
  • Product Weight: .175 lb
  • Product Width: .41 in
  • Voltage Rating: 500 V

Installation & Operation

  1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
  2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
  3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
  4. Configure any available load management or control features as supported by the provided specifications.
  5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
  6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

  • Motor Control Transformers
  • High Inrush Current Circuits
  • Commercial Motor Control Panels
  • Industrial Control Systems
  • HVAC Motor Protection
  • Pump and Compressor Controls
  • Manufacturing Equipment Protection

Why Choose Bussmann Quality?

Bussmann delivers proven reliability in electrical protection with CE marked compliance and professional-grade construction. The nickel-plated bronze endcaps and precision engineering ensure dependable performance in critical motor control applications where circuit protection is essential.

Manufacturer Resources

Product Specs

Amperage Rating:
10:00 AM
Compliances:
CE Marked
Connection:
Ferrule end x ferrule end
Fuse Indicator:
Non-indicating
Interrupt Rating:
10 kAIC at 500 Vac
Packaging Type:
Standard
Product Height:
1.5 in
Product Length Depth:
.41 in
Product Weight:
.175 lb
Product Width:
.41 in
Voltage Rating:
500 V
Department:
Electrical
Product Material:
Nickel-plated bronze endcap
