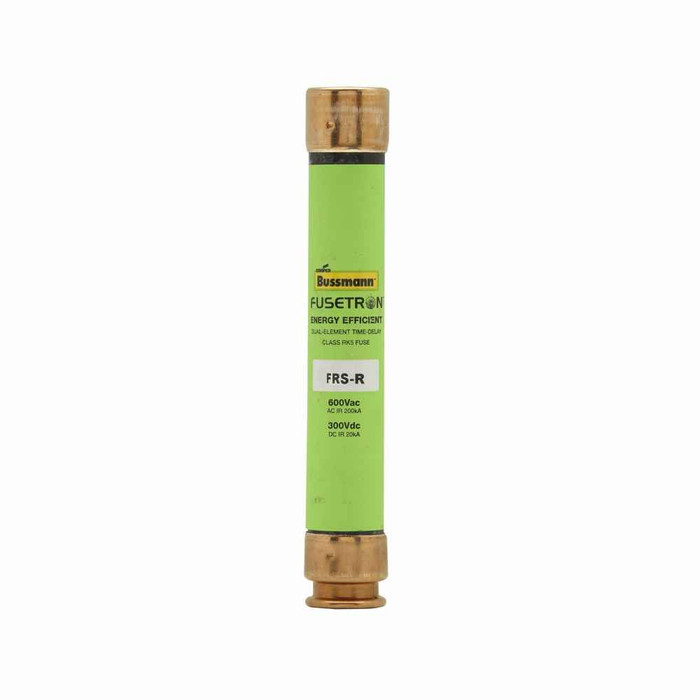

Bussmann FRS-R Time Delay Fuse 5A Class RK5 Dual Element Ferrule End

Bussmann FRS-R Time Delay Fuse 5A Class RK5 Dual Element Ferrule End

Professional Time Delay Protection for Motor and Inductive Load Applications

The Bussmann FRS-R series time delay fuse delivers reliable overcurrent protection with dual element design for motor circuits and inductive loads. This 5A Class RK5 fuse features ferrule end connections for secure installation and provides 10 second time delay at 500% overload, allowing temporary inrush currents while protecting against sustained overcurrent conditions. With 200 kAIC interrupt rating at 600 Vac and CE marking compliance, this non-indicating fuse ensures dependable circuit protection in commercial and industrial applications.

Professional Features & Benefits

• 5A Current Rating: Precisely calibrated amperage protection for motor and lighting circuits requiring time delay characteristics.
• Class RK5 Design: Current-limiting performance reduces let-through energy and provides superior short-circuit protection compared to standard fuses.
• Dual Element Construction: Time delay element handles motor starting currents while fast-acting element provides short-circuit protection.
• Ferrule End Connections: Secure mechanical and electrical connection in fuse holders and disconnect switches.
• 200 kAIC Interrupt Rating: High fault current interruption capability at 600 Vac ensures reliable protection in demanding electrical systems.
• 10 Second Time Delay: Allows temporary 500% overload conditions typical of motor starting while protecting against sustained overcurrent.
• CE Marked Compliance: Meets European conformity standards for international installation requirements.

Technical Specifications

• Amperage Rating: 5A
• Class: Class RK5
• Compliances: CE Marked
• Connection: Ferrule end x ferrule end
• Department: Electrical
• Fuse Indicator: Non-indicating
• Interrupt Rating: 200 kAIC at 600 Vac
• Number Of Elements: Dual
• Packaging Type: Standard
• Product Group: Fuses
• Product Height: 1.06 in
• Product Length Depth: 5.5 in
• Product Subgroup: Time Delay Fuses
• Product Type: Time Delay Fuses
• Product Weight: .35 lb
• Product Width: 1.06 in
• Response Time: 10 sec at 500%
• Voltage Rating: 600 Vac, 300 Vdc

Installation & Operation

1. Mount the fuse in a suitable fuse holder or disconnect switch with appropriate clearance and access for replacement.
2. Connect circuit conductors to ferrule end terminals following applicable electrical codes and manufacturer guidelines.
3. Wire load and supply connections according to the 600 Vac or 300 Vdc voltage specifications and 5A current capacity.
4. Configure any available overcurrent protection coordination as supported by the Class RK5 current-limiting characteristics.
5. Test circuit operation and verify proper fuse sizing for the protected load before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to time delay fuse applications.

Professional Applications

• Motor Control Centers and Motor Starting Applications
• HVAC Equipment and Compressor Protection
• Industrial Machinery and Process Equipment
• Commercial Lighting and Ballast Circuits
• Transformer Primary Protection
• Control Panel and Switchgear Applications
• Inductive Load Protection Systems

Why Choose Bussmann Quality?

Bussmann time delay fuses provide proven reliability in motor and inductive load protection with dual element design and Class RK5 current-limiting performance. The CE marked compliance and 200 kAIC interrupt rating ensure dependable overcurrent protection meeting international standards for professional electrical installations.
