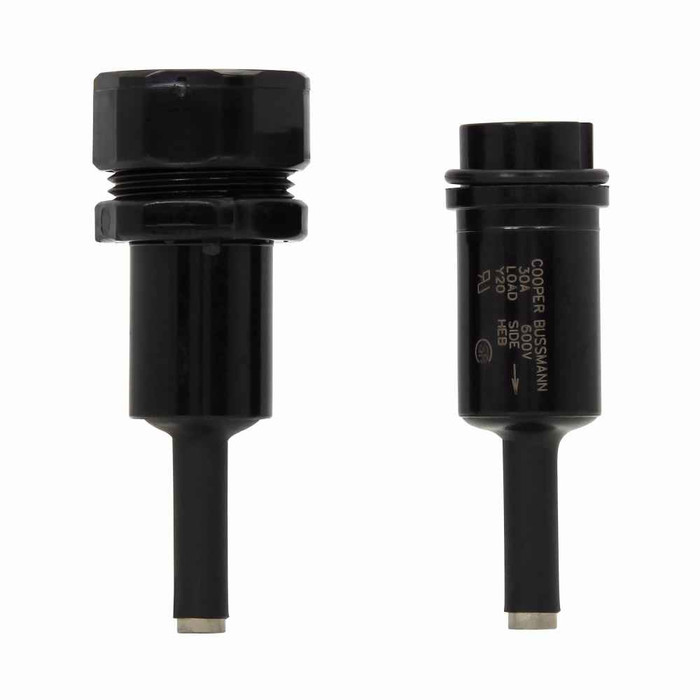

Bussmann HEB-AA Eaton series HEB inline fuse holder, 600V, 30A, Loadside: Copper crimp #8-16; (2) #12-16, Lineside: Copper crimp #8-16; (2) #12-16, Single-pole, AA

Bussmann HEB-AA Inline Fuse Holder 600V 30A Single-Pole with Copper Crimp Terminals

(No reviews yet) Write a Review

Model: HEB-AA
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$102.14
$55.33
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Bussmann HEB-AA Inline Fuse Holder 600V 30A Single-Pole with Copper Crimp Terminals

Professional Electrical Protection with Versatile Connection Options

The Bussmann HEB-AA inline fuse holder delivers reliable electrical protection for 600V applications with 30A capacity. This single-pole fuse holder features copper crimp terminals on both loadside and lineside connections, accommodating wire sizes #8-16 and dual #12-16 configurations. Built to professional standards with 200 kAIC interrupt rating, this Eaton Bussmann series component provides dependable overcurrent protection for diverse electrical installations.

Professional Features & Benefits

  • 30A Amperage Rating: Provides robust overcurrent protection for medium-duty electrical circuits and equipment applications.
  • 600V Voltage Rating: Supports high-voltage applications with reliable insulation and safety performance for commercial and industrial use.
  • 200 kAIC Interrupt Rating: Delivers exceptional fault current interruption capability for enhanced system protection and safety.
  • Copper Crimp Terminals: Features loadside and lineside copper crimp connections supporting #8-16 and dual #12-16 wire configurations for installation flexibility.
  • Single-Pole Design: Provides focused protection for individual circuit legs with compact form factor and straightforward installation.
  • RoHS Compliant: Meets environmental compliance standards for responsible electrical component selection and installation.

Technical Specifications

  • Amperage Rating: 30A
  • Certifications: Contact Manufacturer
  • Compliances: RoHS Compliant
  • Connection: Loadside: Copper crimp #8-16; (2) #12-16, Lineside: Copper crimp #8-16; (2) #12-16
  • Ean: 5.02759E+12
  • Interrupt Rating: 200 kAIC
  • Number Of Poles: Single-pole
  • Product Height: .001 IN
  • Product Length Depth: .001 IN
  • Product Type: Inline fuse holder
  • Product Weight: 24.55 LB
  • Product Width: .001 IN
  • Voltage Rating: 600V

Professional Applications

  • Commercial Electrical Systems
  • Industrial Control Panels
  • Motor Control Centers
  • Distribution Equipment
  • Power Distribution Units
  • Electrical Switchgear
  • Process Control Systems

Why Choose Bussmann Quality?

Bussmann delivers proven electrical protection solutions with RoHS compliant construction and professional-grade performance. The 200 kAIC interrupt rating and copper crimp terminal design ensure reliable operation and long-term durability in demanding electrical applications.

Manufacturer Resources

Product Specs

Amperage Rating:
30A
Certifications:
Contact Manufacturer
Compliances:
RoHS Compliant
Ean:
5.02759E+12
Interrupt Rating:
200 kAIC
Number Of Poles:
Single-pole
Product Height:
.001 IN
Product Length Depth:
.001 IN
Product Type:
Inline fuse holder
Product Weight:
24.55 LB
Product Width:
.001 IN
Voltage Rating:
600V
Department:
Electrical
Product Group:
Wiring Devices

Bussmann HEB-AA – Frequently Asked Questions

1) What wire sizes will the Bussmann HEB-AA inline fuse holder crimp terminals accept?
Both ends of the HEB-AA take copper crimp terminals sized for #8 through #16 AWG, and each end will also take two conductors in the #12 to #16 range. That dual-wire capacity on the line side is what lets you feed through to a second device without adding a splice or a terminal block ahead of the holder. Line side and load side are the same crimp range, so there is no separate part to order for one end.
2) Can I use the HEB-AA fuse holder on a 480V three-phase circuit?
The HEB-AA is rated 600V, so it is within rating on a 480V system. It is a single-pole holder though, so a three-phase feeder needs three of them, one per phase leg. Order the quantity by the number of ungrounded conductors you are protecting, not by the number of circuits.
3) Is the Bussmann HEB-AA rated for a 30 amp branch circuit?
30A is the holder's maximum, so it covers a 30 amp circuit and anything below it. The fuse you install sets the actual protection level, and the holder itself will not carry more than 30A regardless of what you put in it. For loads above 30 amps you need a larger holder or a fused disconnect.
4) What short circuit current rating does the HEB-AA inline fuse holder have?
200 kAIC. On a panel schedule or an equipment SCCR calculation that means the HEB-AA is not the limiting component in most commercial and industrial services, since available fault current at a typical distribution point sits well under that figure. Useful when you are documenting series-rated assemblies for an inspector.
5) Do I need a panel or enclosure to mount the HEB-AA, or does it go in the wiring itself?
It is an inline holder, so it sits in the conductor run itself rather than mounting to a DIN rail or panel back plate. You crimp it into the line and load conductors, #8 to #16 copper, and it stays supported by the wiring. That is why it turns up in control panels, motor control centers, and power distribution units where a fuse is needed at a point that has no room for a fused block.
6) What is the exact part number for the Bussmann HEB series 600V 30A inline fuse holder?
Eaton Bussmann HEB-AA. That is the full manufacturer part number as ordered, the AA suffix identifying the copper crimp termination version of the HEB inline holder at 600V and 30A.
7) Does the Bussmann HEB-AA meet RoHS requirements for a government or institutional spec?
The HEB-AA inline fuse holder is RoHS compliant, which is usually the box that has to be ticked on institutional and public-sector procurement sheets for electrical components.
