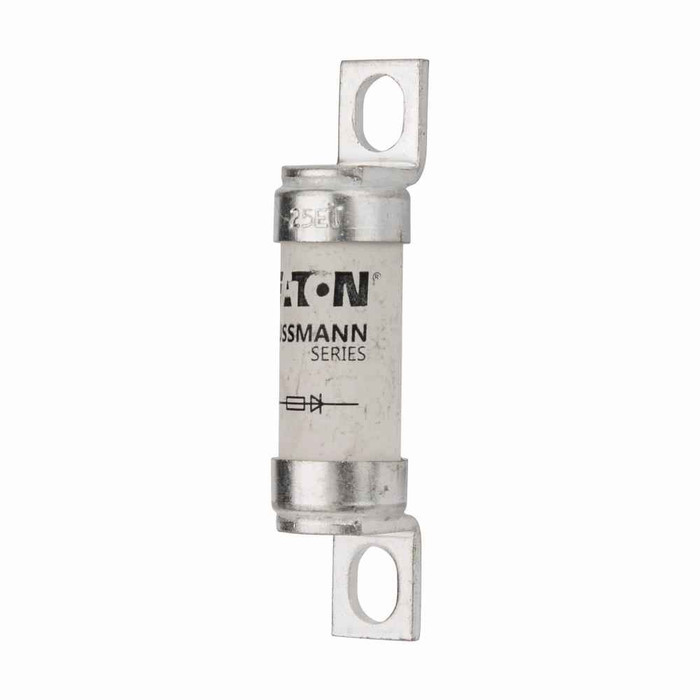

Eaton Bussmann series high speed British standard fuse, high speed, 25 A, AC 690 V, DC 500 V, BS88, 19 x 77 mm, aR, BS
Manufacturer Resources
Product Specs
- Amperage Rating:
- 25 A
- Application:
- protection of DC common bus, DC drives, power converters/rectifiers and reduced voltage starters
- Breaking Capacity:
- 200 kA
- Certifications:
- UL Recognized
- Clearing I2t :
- 150
- Compliances:
- RoHS Compliant
- Connection:
- Blade end x blade end
- Fuse Indicator:
- None
- Fuse Shape:
- Offset bolted tags
- Insulated Metal Gripping Lugs Imgl :
- No
- Interrupt Rating:
- 200 kAIC
- Mounting Method:
- Stud
- Pre Arc I2t :
- 25
- Product Height:
- 20 mm
- Product Length Depth:
- 76 mm
- Product Weight:
- 38.4 g
- Product Width:
- 20 mm
- Rated Switching Capacity:
- 200 kA
- Type:
- Fuse
- Utilization Category:
- Other
- Voltage Rating:
- 690 V
- Voltage Type:
- AC/DC
- Watt Losses:
- 7 W
- Product Group:
- Fuses
- Department:
- Electrical
- Product Subgroup:
- Other Fuses
- Product Type:
- Fuse
