Bussmann JJS-600 Eaton series ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$1,886.41

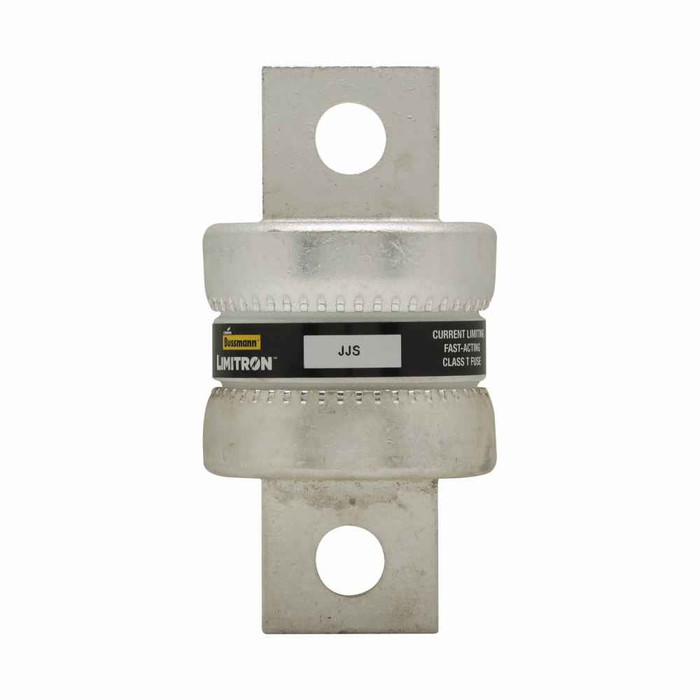

Bussmann JJS-600 Eaton series JJS fuse, Current-limiting very fast acting fuse, Small footprint, VFD line protection, 600 A, Class T, Non-indicating, Bolted blade end x bolted blade end, 200 kAIC at 600 V, Standard, 1, 600 V

Bussmann JJS-600 Eaton series JJS fuse, Current-limiting very fast acting fuse, Small footprint, VFD line protection, 600 A, Class T, Non-indicating, Bolted blade end x bolted blade end, 200 kAIC at 600 V, Standard, 1, 600 V

(No reviews yet) Write a Review

Model: JJS-600
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,886.41
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Bussmann JJS-600 Eaton series JJS fuse, Current-limiting very fast acting fuse, Small footprint, VFD line protection, 600 A, Class T, Non-indicating, Bolted blade end x bolted blade end, 200 kAIC at 600 V, Standard, 1, 600 V.

  • Amp rating: 600 A
  • Voltage rating: 600 V
  • Class: Class T
  • Interrupt rating: 200 kAIC at 600 Vac
  • Product type: Fuse
  • Dimensions (L x W x H): 3.98 x 1.25 x 1.25 in

Genuine Bussmann part number JJS-600.

Manufacturer Resources

Product Specs

Amperage Rating:
600 A
Class:
Class T
Compliances:
CE Marked
Connection:
Bolted blade end x bolted blade end
Fuse Indicator:
Non-indicating
Interrupt Rating:
200 kAIC at 600 Vac
Packaging Type:
Standard
Product Height:
1.25 in
Product Length Depth:
3.98 in
Product Weight:
1 lb
Product Width:
1.25 in
Special Features:
Small footprint
Voltage Rating:
600 V
Department:
Electrical
Item Quantity:
1
Product Type:
Fuse
Product Group:
Fuses
Product Subgroup:
Other Fuses

Bussmann JJS-600 – Frequently Asked Questions

1) Will a Bussmann JJS-600 fit a Class T 600 A fuse block, or do I need a different holder?
The JJS-600 is a Class T fuse with bolted blade ends on both terminals, so it mounts to a 600 V Class T block or holder sized for 600 A bolt-in blades. It is not a ferrule or knife-blade cartridge and won't drop into Class J or Class R clips. Body size is 3.98 in long by 1.25 in wide by 1.25 in high, which is the small-footprint advantage Class T has over larger classes at the same rating.
2) Can I use the JJS-600 on a 480 V three phase service, or is it strictly 600 V?
A 600 V rating is a maximum, not a requirement, so the JJS-600 is fine on 480 V and 240 V AC systems as well. What matters on the panel schedule is the interrupting rating: 200,000 A at 600 Vac, which covers most high available-fault-current service entrance and switchboard locations.
3) Is a Class T fuse like the JJS-600 the right choice for protecting a VFD, or should I use a different class?
Class T in the JJS series is a current-limiting, very fast acting fuse, which is what a variable frequency drive's input rectifier needs: it clears a fault fast enough to limit let-through energy to the semiconductors. Slower classes such as time-delay Class RK5 are built to ride through motor inrush and will not protect drive electronics the same way. Use the JJS-600 where the drive manufacturer calls for a fast-acting, current-limiting line fuse at 600 A or less.
4) How do I tell if a JJS-600 has blown? Does it have a blown-fuse indicator?
Non-indicating. There is no pop-out pin or LED on the JJS-600, so troubleshooting is done by voltage check across the fuse or by removing it and ringing it out with a meter. If your maintenance crew relies on a visual indicator for fast fault-finding, specify an indicating fuse or add a fuse-blown relay at the block instead.
5) Does the Bussmann JJS-600 come as a single fuse or in a multi-pack? I need three for a three-phase feeder.
One fuse per order, in standard packaging. A three phase feeder takes three, so order quantity three of part number JJS-600 to make up a set. Each fuse weighs 1 lb.
6) I have a 300 V Class T block. Can I put a JJS-600 in it?
No. The JJS series is the 600 V Class T line and the fuse body is dimensionally different from the 300 V Class T (JJN) fuses, which are shorter. A 600 V fuse should not be forced into a 300 V rated block regardless. Match the block's voltage rating and the 600 A size to the fuse.
7) What is the exact Bussmann part number and is the JJS-600 CE marked for an export panel build?
Part number is JJS-600 from the Eaton Bussmann JJS series, 600 A, 600 V, Class T. It carries a CE mark, which matters if the assembly is headed for a market that requires CE documentation on the components.
