Bussmann KRP-CL-600 Eaton Seri...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$6,673.44

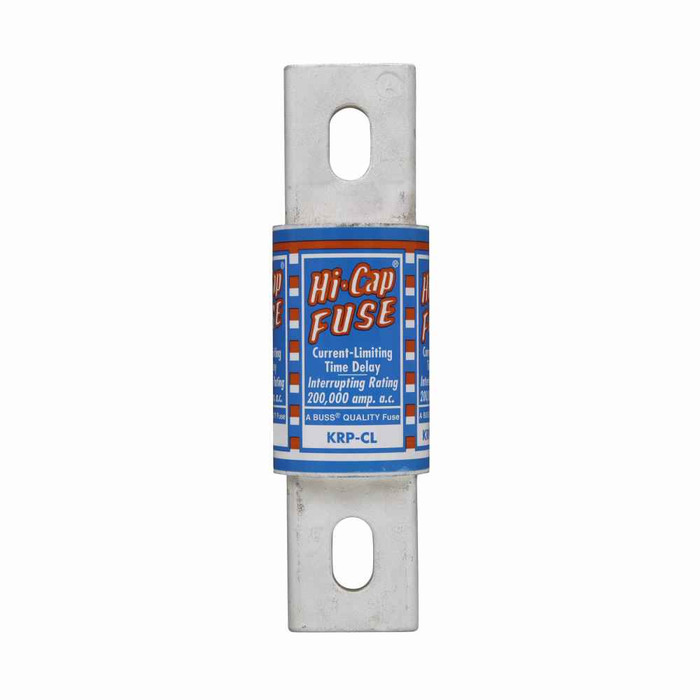

Bussmann KRP-CL-600 Eaton Series KRP-CL Fuse, Time Delay, Current-limiting, 600V, 600A, 200 kAIC at 600 Vac, Class L, Blade end X blade end, 2.5, Inch, Non Indicating

Bussmann KRP-CL-600 Eaton Series KRP-CL Fuse, Time Delay, Current-limiting, 600V, 600A, 200 kAIC at 600 Vac, Class L, Blade end X blade end, 2.5, Inch, Non Indicating

(No reviews yet) Write a Review

Model: KRP-CL-600
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$6,673.44
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Bussmann KRP-CL-600 Eaton Series KRP-CL Fuse, Time Delay, Current-limiting, 600V, 600A, 200 kAIC at 600 Vac, Class L, Blade end X blade end, 2.5, Inch, Non Indicating.

  • Amp rating: 600 A
  • Voltage rating: 600 V
  • Product type: Fuse
  • Dimensions (L x W x H): 8.63 x 2.78 x 2.78 IN

Genuine Bussmann part number KRP-CL-600.

Manufacturer Resources

Product Specs

Compliances:
RoHS Compliant
Product Height:
2.78 IN
Product Length Depth:
8.63 IN
Product Weight:
3.26 LB
Product Width:
2.78 IN
Department:
Electrical
Product Type:
Fuse
Product Group:
Fuses
Product Subgroup:
Other Fuses

Bussmann KRP-CL-600 – Frequently Asked Questions

1) Is the KRP-CL-600 time delay or fast acting, and will it hold in on motor inrush?
It's a time delay, current-limiting Class L fuse. The time delay element is what lets it ride through the inrush of motor and transformer loads without nuisance opening, while still clearing a bolted fault fast enough to limit let-through energy. For a purely non-inductive load you don't need the delay, but it does no harm.
2) What interrupting rating does the Bussmann KRP-CL-600 have for a high fault-current service?
200 kAIC at 600 Vac. That covers most large commercial and industrial service entrances where available fault current at the main switchboard can run well above what a standard breaker is rated for.
3) Can I use the KRP-CL-600 on a 480V or 240V system, or only 600V?
The rating is 600V, which is a maximum. A fuse can be applied at or below its voltage rating, so it works on 480V and 240V systems as well. Never go above 600 volts with it.
4) Does this Bussmann Class L fuse have a blown-fuse indicator?
No. The KRP-CL-600 is non-indicating, so there's no pop-out pin or flag to tell you it has opened. Plan on checking it with a meter, or spec an indicating version if your maintenance crew relies on visual inspection in the gear.
5) What exact part number do I order to match an existing KRP-C series Class L fuse at 600 amps?
The manufacturer part number is KRP-CL-600, Eaton Bussmann KRP-CL series. Order by that number to match a 600 amp, 600 volt Class L time delay position exactly.
6) How heavy is the KRP-CL-600, and is it a one-person change-out?
It weighs 3.26 lb. That's easily handled by one person, but at 8.63 inches long it's a two-bolt-per-end blade fuse, so you'll want the gear de-energized and a socket wrench rather than trying to work it by hand.
7) Is the Bussmann KRP-CL-600 RoHS compliant for a facility spec?
Yes, the KRP-CL-600 is listed as RoHS compliant, which is what institutional and government procurement specs usually want documented on electrical components.
