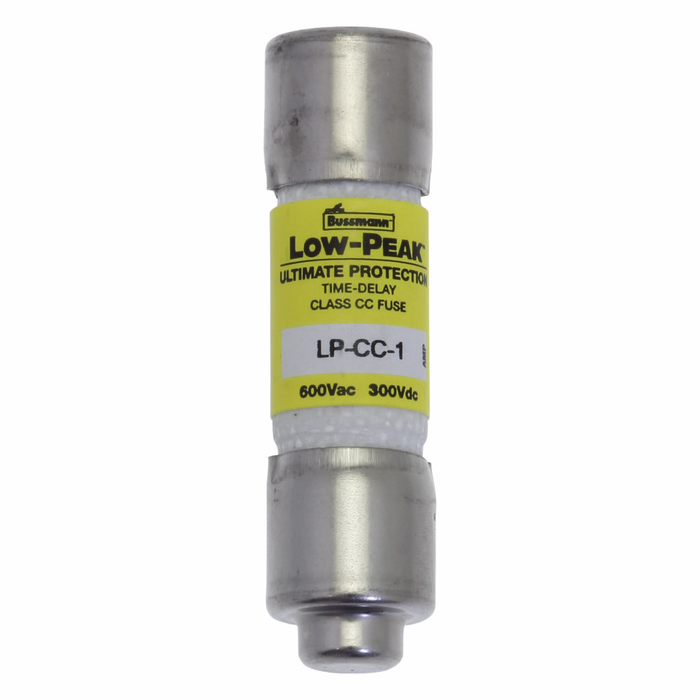

Bussmann Time Delay Fuse LP-CC Series 1A 600VAC/300VDC Class CC Ferrule End Current Limiting

Bussmann Time Delay Fuse LP-CC Series 1A 600VAC/300VDC Class CC Ferrule End Current Limiting

Professional-Grade Current Limiting Circuit Protection

The Bussmann LP-CC Series Time Delay Fuse delivers superior electrical protection and circuit safety for specialized circuits and industrial control applications. This Class CC current-limiting time-delay fuse features dual element rejection style design for electrical contractors, industrial facilities, and commercial installations, providing the reliable overcurrent protection and industry-leading safety that electrical professionals demand.

Professional Features & Benefits

Current Limiting Protection

• 200 kAIC Interrupt Rating at 600VAC - Superior fault current clearing capability for high-energy electrical systems
• Dual Element Design - Provides time delay for motor starting while offering fast response to short circuits
• Current Limiting Technology - Reduces let-through energy and protects downstream equipment from damaging fault currents
• Rejection Style Construction - Prevents installation of incorrect fuse types ensuring proper circuit protection

Safety & Standards Compliance

• Class CC Classification - Meets stringent NEC requirements for branch circuit protection and selective coordination
• CE Marked Certification - Ensures compliance with international electrical safety standards
• Non-Indicating Design - Professional grade construction for reliable operation in industrial environments

Technical Specifications

1 ampere rating, 600VAC/300VDC voltage rating, 200 kAIC interrupt rating at 600VAC, Class CC fuse classification, ferrule end x ferrule end connection, 12 second response time at 200% rated current, dual element construction, melamine tube housing, dimensions 1.5" H x 0.41" W x 0.41" D, weight 0.15 lb.

Installation & Setup

1. Verify power is OFF and use proper lockout/tagout procedures before installation
2. Confirm fuse holder is rated for Class CC fuses and rejection style design
3. Insert fuse ensuring proper ferrule end contact with fuse holder terminals
4. Verify secure mechanical connection and proper fuse seating
5. Test circuit operation and verify proper overcurrent protection coordination
6. Document installation per NEC requirements and facility maintenance records

Professional Applications

Ideal for:

• Industrial Control Circuits - Motor control panels, PLC systems, and automation equipment protection
• Specialized Circuit Protection - Instrumentation, control transformers, and sensitive electronic loads
• Commercial Electrical Panels - Branch circuit protection in office buildings and retail facilities
• Motor Protection Applications - Small motor circuits requiring time delay for starting current
• Lighting Control Systems - Ballast and LED driver protection in commercial installations
• Power Distribution Equipment - Switchgear and panelboard applications requiring current limiting
• Control Panel Applications - Machine control circuits and industrial automation systems
• Transformer Protection - Control transformer primary and secondary circuit protection

Current Limiting Technology Advantage

Bussmann's current limiting technology provides superior arc suppression and fault clearing capability, reducing let-through energy to protect downstream equipment. The dual element design offers selective coordination with upstream protective devices while providing time delay for normal motor starting currents and fast response to dangerous short circuit conditions.

Why Choose Bussmann Quality?

Bussmann's commitment to UL listing, NEC compliance, and reliable overcurrent protection makes this Class CC fuse the preferred choice for electrical professionals. With rejection style construction preventing improper installation and current limiting technology protecting valuable equipment, this fuse delivers the electrical safety and system reliability that professional installations demand.
