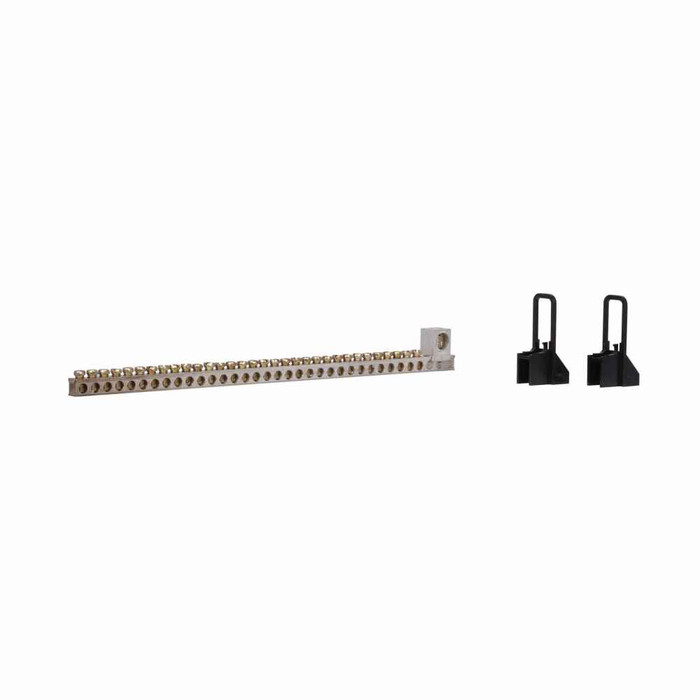

Eaton CHN125D CH 3/4-inch Load...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$163.06
$113.06
Eaton CHN125D CH 3/4-inch Loadcenter and Breaker Accessories - Neutral Bar,Suitable for Box D CH loadcenters,Neutral bar,D,CH,0.75 in,Box d CH loadcenters

Eaton CHN125D CH 3/4-inch Loadcenter and Breaker Accessories - Neutral Bar,Suitable for Box D CH loadcenters,Neutral bar,D,CH,0.75 in,Box d CH loadcenters

(No reviews yet) Write a Review

Model: CHN125D
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$163.06
$113.06
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton CH 3/4-inch Loadcenter and Breaker Accessories - Neutral Bar,Suitable for Box D CH loadcenters,Neutral bar,D,CH,0.75 in,Box d CH loadcenters

Manufacturer Resources

Product Specs

Amperage Rating:
225 A
Box Size:
D
Bus Material:
Aluminum
Catalog Notes:
Cannot be used in safety breaker panels. Classic plus panels only.
Certifications:
Contact Manufacturer
Enclosure:
NEMA 1
Interrupt Rating:
10 kAIC
Main Circuit Breaker:
CH
Phase:
Three-phase
Product Height:
12.35 in
Product Length Depth:
.6 in
Product Weight:
.05 lb
Product Width:
1.2 in
Special Features:
Suitable for Box D CH loadcenters
Used With:
Box d CH loadcenters
Product Group:
Electrical
Product Size:
3/4 in
Department:
Electrical
Product Details:
Neutral bar

Eaton CHN125D – Frequently Asked Questions

1) What is the CHN125D neutral bar used for?
The CHN125D provides additional neutral connections in Eaton CH loadcenters. It mounts inside the panel to accommodate circuits requiring neutral connections when the main neutral bar is full.
2) Which Eaton CH loadcenters accept this neutral bar?
This bar is compatible with Box D CH loadcenters specifically. Verify your panel model before ordering as different box configurations require different neutral bar accessories.
3) How many neutral connections does the CHN125D provide?
Check the manufacturer specifications for exact connection count. The bar provides multiple neutral wire landing points for 120V circuits and GFCI/AFCI breakers requiring pigtail connections.
4) What wire sizes can terminate on this neutral bar?
Typical neutral bars accept #14 to #4 AWG copper conductors. Torque to manufacturer specifications to ensure proper connection. Aluminum conductor compatibility varies by model.
5) Does this neutral bar need to be bonded to ground?
Additional neutral bars typically bond to the main neutral bar through the mounting hardware. The main neutral bar handles the neutral-ground bond at the service entrance per NEC requirements.
6) Where does the CHN125D mount inside the panel?
The bar mounts to designated locations within Box D CH panels using provided hardware. Follow the panel's instruction sheet for proper mounting position and clearance requirements.
7) Can I install this neutral bar myself?
Installation requires qualified electrician work. Power must be shut off at the meter. Local permits and inspections may be required for panel modifications.
8) What's included with the CHN125D kit?
The kit includes the neutral bar and mounting hardware specific to Box D installations. Installation instructions are typically included with the loadcenter or available from Eaton.
9) Are there ground bar accessories for CH panels?
Yes, separate ground bars are available for CH loadcenters when additional grounding connections are needed. Browse our Eaton electrical products for compatible accessories.
10) How do I identify my CH panel's box configuration?
Check the panel label or model number. Box letters (A, B, C, D) indicate the interior configuration. This determines which neutral bar accessories fit your specific panel.
11) What other CH loadcenter accessories are available?
CH panels accept various accessories including additional ground bars, panel locks, generator interlocks, and surge protection devices. Each box configuration has specific compatible accessories.
