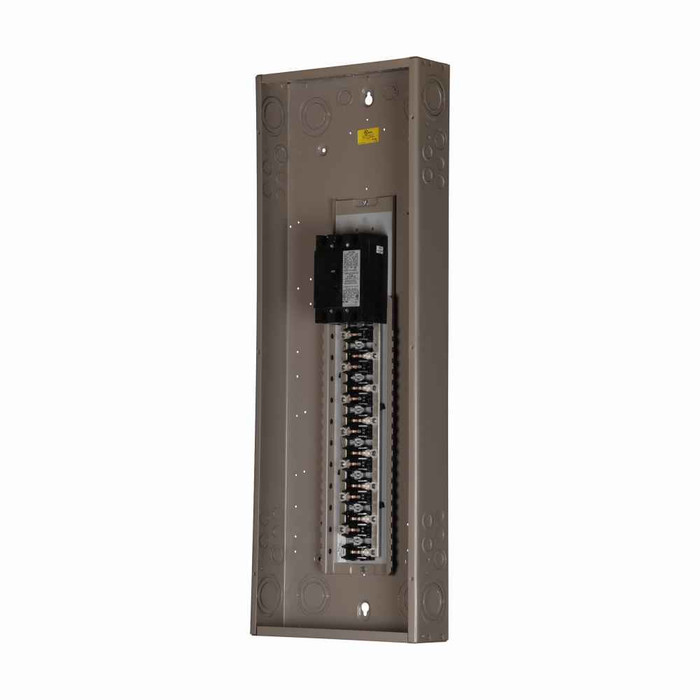

Eaton CH main breaker loadcenters,Standard,Main breaker,300 A,Pm,Copper,Ch7pmf-combination, ch7pms-surface, not included,NEMA 1,Metallic,25 kAIC,CSR,42,42,Four-wire,Three-phase,(2) #1/0–300 kcmil, (1) 750 kcmil,Top/bottom,120/240 V
Manufacturer Resources
Product Specs
- Amperage Rating:
- 300 A
- Box Size:
- PM
- Bus Material:
- Copper
- Catalog Notes:
- All main circuit breaker loadcenters are listed for use as service entrance equipment. Ground bar kits priced separately.
- Certifications:
- UL 50
- Cover:
- Ch7pmf-combination, ch7pms-surface, not included
- Enclosure:
- NEMA 1
- Enclosure Material:
- Metallic
- Feed Type:
- Top/bottom
- Interrupt Rating:
- 25 kAIC
- Main Circuit Breaker:
- CSR
- Number Of Circuits:
- 42
- Number Of Spaces:
- 42
- Number Of Wires:
- 4
- Phase:
- Three-phase
- Product Height:
- 6 in
- Product Length Depth:
- 54.38 in
- Product Weight:
- 21.3 lb
- Product Width:
- 21 in
- Special Features:
- Standard
- Type:
- Main breaker
- Voltage Rating:
- 120/240 V
- Wire Size:
- (2) #1/0–300 kcmil, (1) 750 kcmil
- Product Group:
- Electrical
