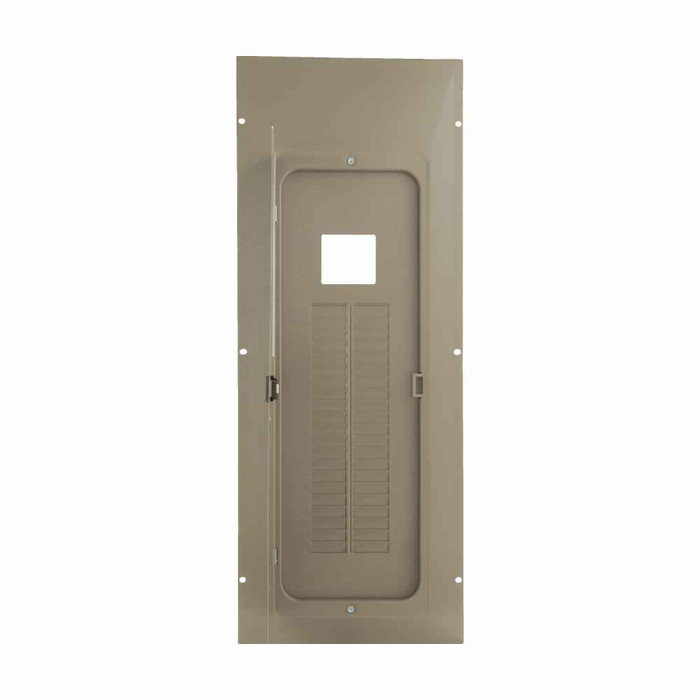

Eaton CH Surface Cover 225A 42-Space 120/240V NEMA 1 Sandalwood X7

Eaton CH Surface Cover 225A 42-Space 120/240V NEMA 1 Sandalwood X7

Professional Electrical Panel Cover for CH Series Load Centers

The Eaton CH Surface Cover delivers exceptional electrical panel protection and professional appearance for 225A CH series load centers. This 42-space surface or flush mount cover provides reliable electrical enclosure protection designed for professional electricians, electrical contractors, and facility managers, offering the proven reliability and advanced technology that professionals trust from the global leader in intelligent power management.

Professional Features & Benefits

Electrical Performance & Protection

• 225A Current Rating - High-capacity electrical protection for demanding residential and commercial electrical distribution applications
• 42-Space Configuration - Accommodates extensive circuit protection with CH 3/4-inch plug-on neutral breakers for comprehensive electrical system coverage
• 120/240V Three-Phase Compatibility - Versatile voltage rating supports both single-phase and three-phase electrical distribution systems
• 10 kAIC Interrupt Rating - Professional-grade fault current interruption capability for reliable electrical system protection

Installation & Mounting Flexibility

• Surface or Flush Universal Applications - Dual mounting capability provides installation flexibility for various electrical panel configurations and space requirements
• NEMA 1 Enclosure Rating - Indoor electrical protection suitable for dry location electrical installations in residential and commercial environments
• Sandalwood Professional Finish - Attractive neutral color complements residential and commercial electrical installations while maintaining professional appearance

CH Series Compatibility

• CH Breaker Compatibility - Specifically designed for use with Eaton CH series circuit breakers ensuring proper fit and electrical performance
• Aluminum Bus Construction - Durable aluminum bus material provides excellent electrical conductivity and corrosion resistance for long-term reliability

Technical Specifications

Amperage Rating: 225A, Voltage Rating: 120/240V, Number of Spaces: 42, Phase: Three-phase, Interrupt Rating: 10 kAIC, Enclosure: NEMA 1, Mounting: Surface or flush, Bus Material: Aluminum, Color: Sandalwood, Box Size: X7, Used With: CH Breakers, Size: CH 3/4 inch plug on neutral, Dimensions: 37" H x 14.31" W x 1" D, Weight: 12.5 lb, Certifications: Contact Manufacturer

Installation & Usage

1. Verify electrical power is disconnected and follow all electrical safety procedures before installation
2. Select appropriate surface or flush mounting method based on electrical panel configuration and installation requirements
3. Ensure proper alignment with CH series load center frame and verify compatibility with existing electrical system
4. Secure cover using appropriate mounting hardware ensuring proper electrical enclosure protection
5. Verify all circuit breaker positions are accessible and properly labeled for electrical safety compliance
6. Test electrical system operation and verify proper cover fit and electrical protection functionality

Professional Applications

Ideal for:

• Residential Electrical Systems - Main electrical panel covers for homes requiring 225A service capacity with extensive circuit protection
• Commercial Electrical Distribution - Professional electrical panel protection for office buildings, retail spaces, and light commercial applications
• Multi-Family Housing - Electrical panel covers for apartment complexes, condominiums, and multi-unit residential developments
• Electrical Panel Upgrades - Replacement covers for existing CH series load centers during electrical system modernization projects
• New Construction Projects - Professional electrical panel finishing for residential and commercial new construction electrical installations
• Electrical Maintenance Applications - Service and maintenance cover replacement for existing CH series electrical distribution systems
• Industrial Support Facilities - Electrical panel protection for office areas, break rooms, and support spaces in industrial facilities
• Educational Facilities - Electrical distribution panel covers for schools, training centers, and educational building electrical systems

CH Series Integration Advantage

Engineered specifically for Eaton CH series load centers, this surface cover ensures perfect compatibility with CH circuit breakers and electrical components. The 42-space configuration with 3/4-inch plug-on neutral design maximizes circuit density while maintaining easy access for electrical maintenance and circuit identification, making it ideal for comprehensive electrical distribution applications.

Why Choose Eaton Quality?

With over a century of electrical power management innovation, Eaton delivers unmatched quality and reliability in electrical distribution equipment. This CH surface cover represents Eaton's commitment to electrical safety, professional installation ease, and long-term performance reliability. Trusted by electricians, electrical contractors, and facility professionals worldwide, Eaton electrical products provide the quality construction and dependable performance that electrical professionals demand for critical power distribution applications.
