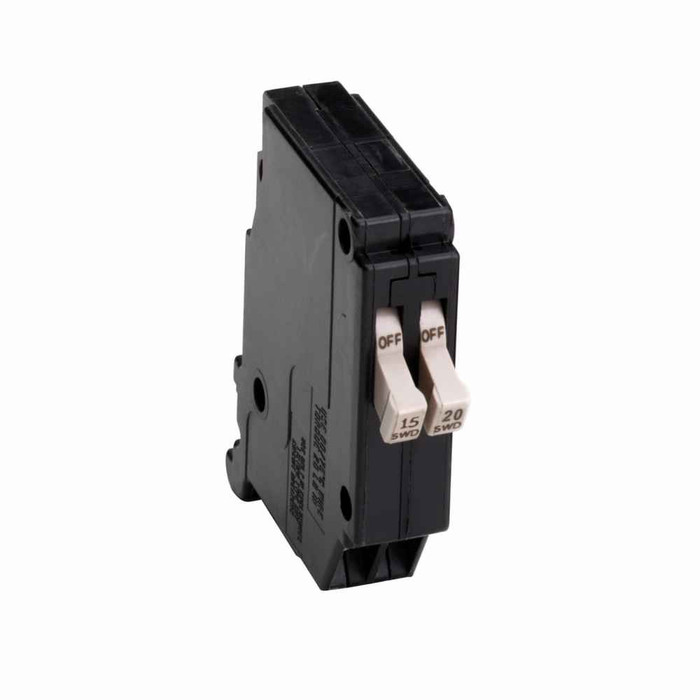

Eaton CHT Series Twin Circuit Breaker 120/240V Single-Pole Plug-On Half-Slot Design

Professional Half-Slot Twin Breaker for Space-Efficient Panel Installation

The Eaton CHT Series Twin Circuit Breaker delivers reliable circuit protection in a space-saving half-slot design for 120/240V applications. This single-pole plug-on breaker features a 10 kAIC interrupt rating and switching duty performance, making it ideal for residential and light commercial electrical panels where space optimization is essential.

Professional Features & Benefits

  • Reliable Overcurrent Protection: Provides dependable overcurrent protection for standard residential and commercial circuits with consistent performance.
  • Twin Half-Slot Design: Maximizes panel space utilization by fitting two circuits in a single breaker slot for efficient installation.
  • 10 kAIC Interrupt Rating: Delivers robust fault current interruption capability for enhanced electrical system safety and protection.
  • Plug-On Mounting: Enables quick and secure installation without additional hardware for streamlined panel assembly.
  • 120/240V Compatibility: Supports standard residential and light commercial voltage requirements with reliable switching performance.
  • HCAR Rated Performance: Meets high current arc resistance standards for enhanced safety and durability in demanding applications.
  • Clamshell Packaging: Provides secure product protection and convenient handling during storage and installation.

Technical Specifications

  • Circuit Breaker Type: CH
  • Frequency Rating: 50-60 Hz
  • Interrupt Rating: 10 kAIC
  • Main Circuit Breaker: CHT
  • Mounting Method: Plug-on
  • Number Of Poles: Single-pole
  • Performance Rating: Switching duty rated, HCAR rated
  • Special Features: Clamshell pack
  • Used With: Type CH Loadcenters
  • Voltage Rating: 120/240 V
  • Wire Size: #14-8 AWG Cu/Al

Professional Applications

  • Residential electrical panels requiring space-efficient circuit protection
  • Light commercial facilities with standard voltage requirements
  • Multi-unit properties needing reliable overcurrent protection
  • Professional offices with standard electrical loads
  • Retail establishments requiring dependable circuit breaker performance
  • Renovation projects where panel space optimization is critical

Why Choose Eaton Quality?

Eaton CHT Series breakers deliver proven reliability with switching duty and HCAR rated performance for demanding electrical applications. The robust 10 kAIC interrupt rating and compatibility with Type CH Loadcenters ensure dependable protection and seamless integration with existing electrical systems.

Variant Specifications

AmperageAmperage OptionSecurity FeatureChoose Amperage RatingSKU
15A15-15AStandardStandardCHT1515
15A15-15AClamshell PackStandardCHT1515CS
15A15-20AStandardStandardCHT1520
20AStandardStandard20-20CHT2020
20AStandardClam Shell20-20CHT2020CS
15A15-20AClamshell PackStandardEAT-CHT15-15-CL

Manufacturer Resources

Product Specs

Department:
Electrical
Special Features:
Clamshell pack
Number Of Poles:
Single-pole
Product Type:
Circuit Breaker
Main Circuit Breaker:
CHT
Voltage Rating:
120/240 V
Interrupt Rating:
10 kAIC
Used With:
Type CH Loadcenters
Product Group:
Circuit Breakers
Circuit Breaker Type:
CH
Frequency Rating:
50-60 Hz
Performance Rating:
Switching duty rated, HCAR rated
Wire Size:
#14-8 AWG Cu/Al

Eaton CHT1515 – Frequently Asked Questions

1) Will an Eaton CHT twin breaker fit in my Square D or Siemens panel?
No. The CHT twin is a Type CH plug-on breaker and it's built for Eaton Type CH loadcenters only. Panels from other manufacturers use different bus stab geometry and listings, so a CHT will not seat correctly or be a listed installation. Check the label inside your panel door for Type CH before ordering.
2) What does a twin half-slot breaker actually do for panel space?
A CHT twin puts two independent single-pole circuits into one full-size breaker space, so you can add a circuit to a panel that has no open slots left. Each half carries its own handle and its own overcurrent protection at 120/240V. Before you use one, confirm the panel label allows tandem or twin breakers in that position, since many loadcenters restrict which slots accept them and cap the total circuit count.
3) Can I use a CHT twin for a 240V circuit like a water heater or a dryer?
No. Each half of the CHT is a single-pole device protecting one 120V circuit. It is rated 120/240V because it's installed in a 120/240V panel, not because one half can serve a 240V load. For a two-pole 240V circuit you need a two-pole CH breaker at the required amperage.
4) What wire size can I land on an Eaton CHT twin breaker?
The terminals take #14 through #8 AWG, copper or aluminum. That covers 14 AWG for a 15A circuit and 12 AWG for a 20A circuit, which is what the 15/15, 15/20 and 20/20 configurations are typically wired with, and it leaves room for larger conductors where a long run calls for an upsize.
5) Can I use a CHT breaker to switch lighting on and off regularly?
Yes. These are switching duty rated, which means the handle is qualified for use as a manual switch on 120V fluorescent lighting circuits rather than only for fault protection. They're also HCAR rated for high intensity discharge lighting circuits.
6) What's the difference between the CHT1515 and the CHT1515CS?
Same breaker electrically. The CS suffix is a clamshell retail pack rather than bulk packaging. For a contractor pulling breakers by the box, the plain CHT1515 is the straight bulk item; the clamshell version is what you'd pick up as a single. The 20/20 has the same pairing: CHT2020 bulk, CHT2020CS in clamshell.
7) Does the CHT twin provide AFCI or GFCI protection?
No. The CHT is a thermal-magnetic overcurrent device only, providing overload and short circuit protection. Where the code requires arc fault or ground fault protection for bedroom, kitchen, laundry or outdoor circuits, you need a CH-series AFCI, GFCI or dual-function breaker instead, and those are full-size devices rather than half-slot twins.
8) Will an Eaton CHT twin work on a 50 Hz system?
Yes. The CHT is rated 50-60 Hz, so it's fine on either standard power frequency at 120/240V.
