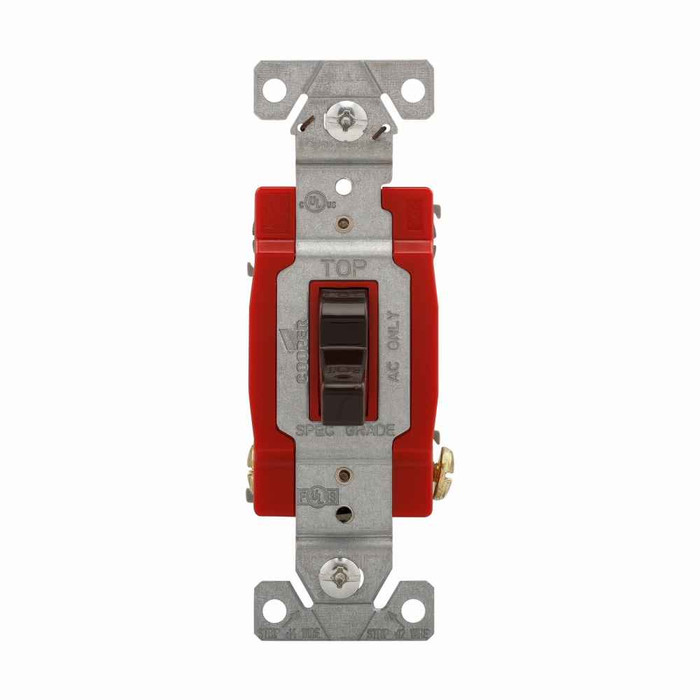

Eaton Construction Grade Four-Way Toggle Switch 20A 120/277V

Eaton Construction Grade Four-Way Toggle Switch 20A 120/277V Brown Industrial

(No reviews yet) Write a Review

Model: EAT-1224

In Stock (leaves warehouse same day if ordered before 3pm ET)

$34.43
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton Construction Grade Four-Way Toggle Switch 20A 120/277V Brown Industrial

Heavy-duty construction grade switching for demanding industrial applications

The Eaton Construction Grade Four-Way Toggle Switch delivers reliable 20A switching performance at 120/277V for industrial environments. Built with durable polycarbonate construction and featuring brown finish, this two-pole four-way toggle switch provides professional-grade control with back and side wiring flexibility for versatile installation requirements.

Professional Features & Benefits

  • 20A Amperage Rating: Handles substantial electrical loads for demanding industrial and commercial applications with reliable switching performance.
  • 120/277V Dual Voltage: Compatible with both standard residential and commercial voltage systems for versatile installation flexibility.
  • Construction Grade Design: Built for heavy-duty use in industrial environments where durability and consistent performance are essential.
  • Four-Way Configuration: Enables control from multiple locations in complex switching arrangements for comprehensive lighting and load management.
  • Polycarbonate Construction: Provides superior impact resistance and long-term durability in demanding installation environments.
  • UL Certification: Meets rigorous safety and performance standards for professional electrical installations and code compliance.
  • Dual Wiring Method: Back and side wiring options accommodate various installation scenarios and electrician preferences for efficient connections.

Technical Specifications

  • Allowable Wire Size: #14-10 AWG
  • Amperage Rating: 20 A
  • Application: Industrial
  • Certifications: UL
  • Connector Type: Screw
  • Mounting Method: Wall
  • Number Of Poles: Two-pole
  • Number Of Ways: Four-way
  • Product Color: Brown
  • Product Details: Toggle switch
  • Product Height: 3.28 in
  • Product Length Depth: 1.31 in
  • Product Material: Polycarbonate
  • Product Weight: .18 lb
  • Product Width: .88 in
  • Switch Type: Four-way
  • Voltage Rating: 120/277 V
  • Wiring Method: Back and side

Installation & Operation

  1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
  2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
  3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
  4. Configure any available load management or control features as supported by the provided specifications.
  5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
  6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

  • Industrial Facilities and Manufacturing Plants
  • Commercial Buildings and Office Complexes
  • Warehouses and Distribution Centers
  • Educational and Institutional Buildings
  • Healthcare and Medical Facilities
  • Retail and Hospitality Establishments
  • Multi-level Lighting Control Systems

Why Choose Eaton Quality?

Eaton construction grade switches deliver proven reliability with UL certification and robust polycarbonate construction designed for long-term performance in demanding industrial applications. The combination of dual voltage compatibility and flexible wiring methods ensures professional installation versatility while maintaining consistent switching performance.

Manufacturer Resources

Product Specs

Allowable Wire Size:
#14-10 AWG
Amperage Rating:
20 A
Application:
Industrial
Certifications:
UL
Connector Type:
Screw
Mounting Method:
Wall
Number Of Poles:
Two-pole
Number Of Ways:
Four-way
Product Color:
Brown
Product Details:
Toggle switch
Product Height:
3.28 in
Product Length Depth:
1.31 in
Product Material:
Polycarbonate
Product Weight:
.18 lb
Product Width:
.88 in
Switch Type:
Four-way
Voltage Rating:
120/277 V
Wiring Method:
Back and side
Product Type:
Switches
Product Group:
Wiring Devices
